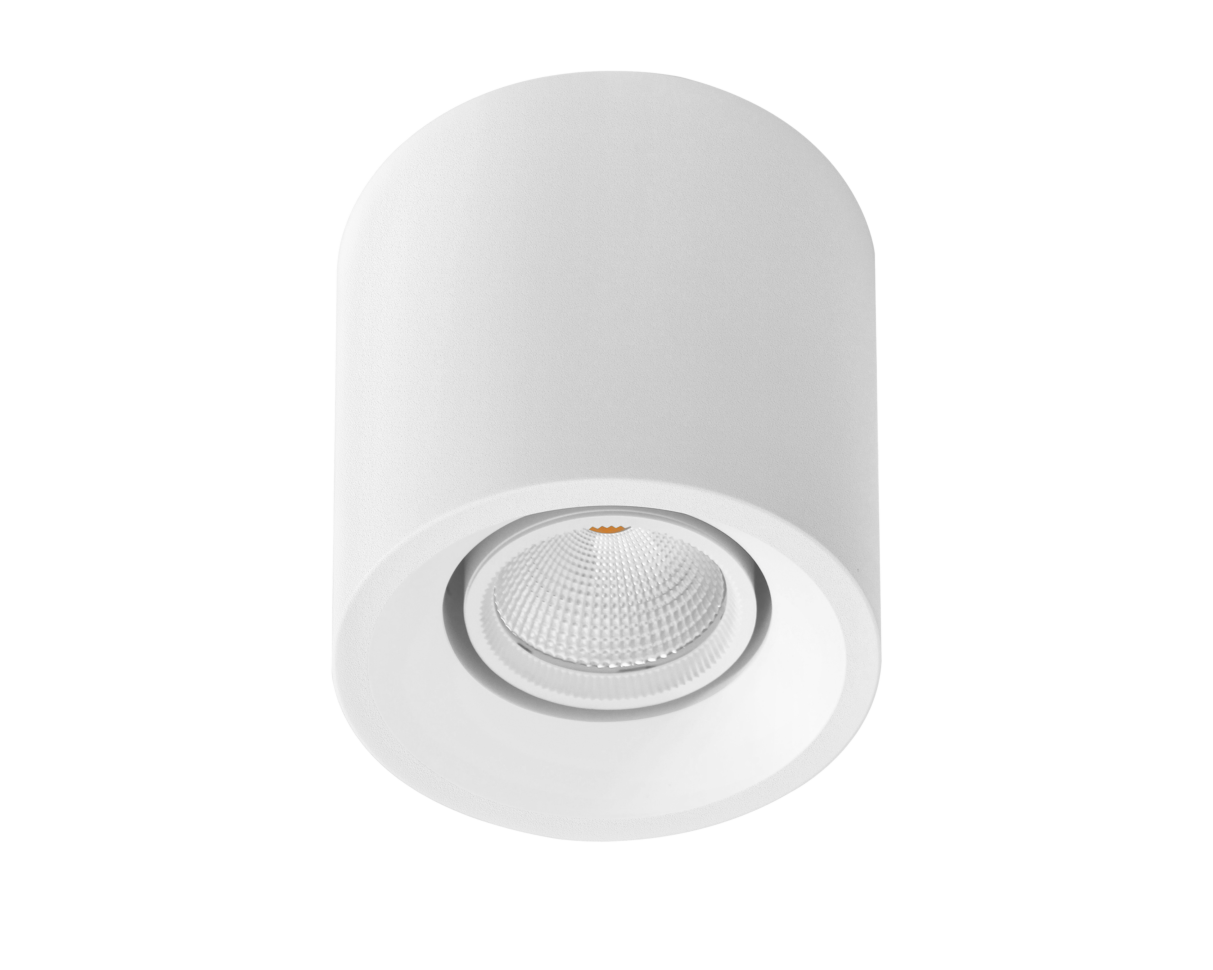

NEST Classic Surface/Pendant

Product Overview

Nest luminaires are all about creating a mood. Nest creates this special feeling and beautiful light, whether recessed, tiltable, surface, or suspended. Classic, downlight luminaire which is well dedicated for use in a wide variety of premises and projects: offices, classrooms, common areas as showrooms or administrative premises, as well as auxiliary rooms such as corridors, dressing rooms, bathrooms, toilets, utility rooms, as an emergency luminaire, etc.

Basic colours

  • Silver RAL9006
  • Black RAL9005
  • White RAL9016

Specification

V

220 - 240

Hz

50 - 60

W

15 - 25

lm

1540 - 2685 1

lm/W

90 - 113

K

3000 / 4000 / TW 2700 - 6500

°C

+10 to +35

CRI

>80

mm

∅ 140 x 180
∅ 160 x 180
∅ 180 x 200
∅ 200 x 220
∅ 220 x 240

Body: Aluminium

Dimming: DALI / 1 - 10 V / Bluetooth / Non dimmable

Initial chromaticity: MacAdam 3

Lifetime: 100 000 h (L80B10) at Ta = 25 °C*

                  50 000 h (L90B10) at Ta = 25 °C*

Warranty: 5 years

Mounting: Surface / Pendant

Cover: Clear glass

Human Centric Lighting: Available

Distribution angle: 55°



Class I
IP20 2
IP40 3
CE
UKCA
RoHS
Byggvarubedömningen Accepted
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 80
2 Top of luminaire
3 Optical part of luminaire

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models and will reach 100 000 h L90/B10. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.

Nest Requirements: https://bit.ly/3frR8j9
