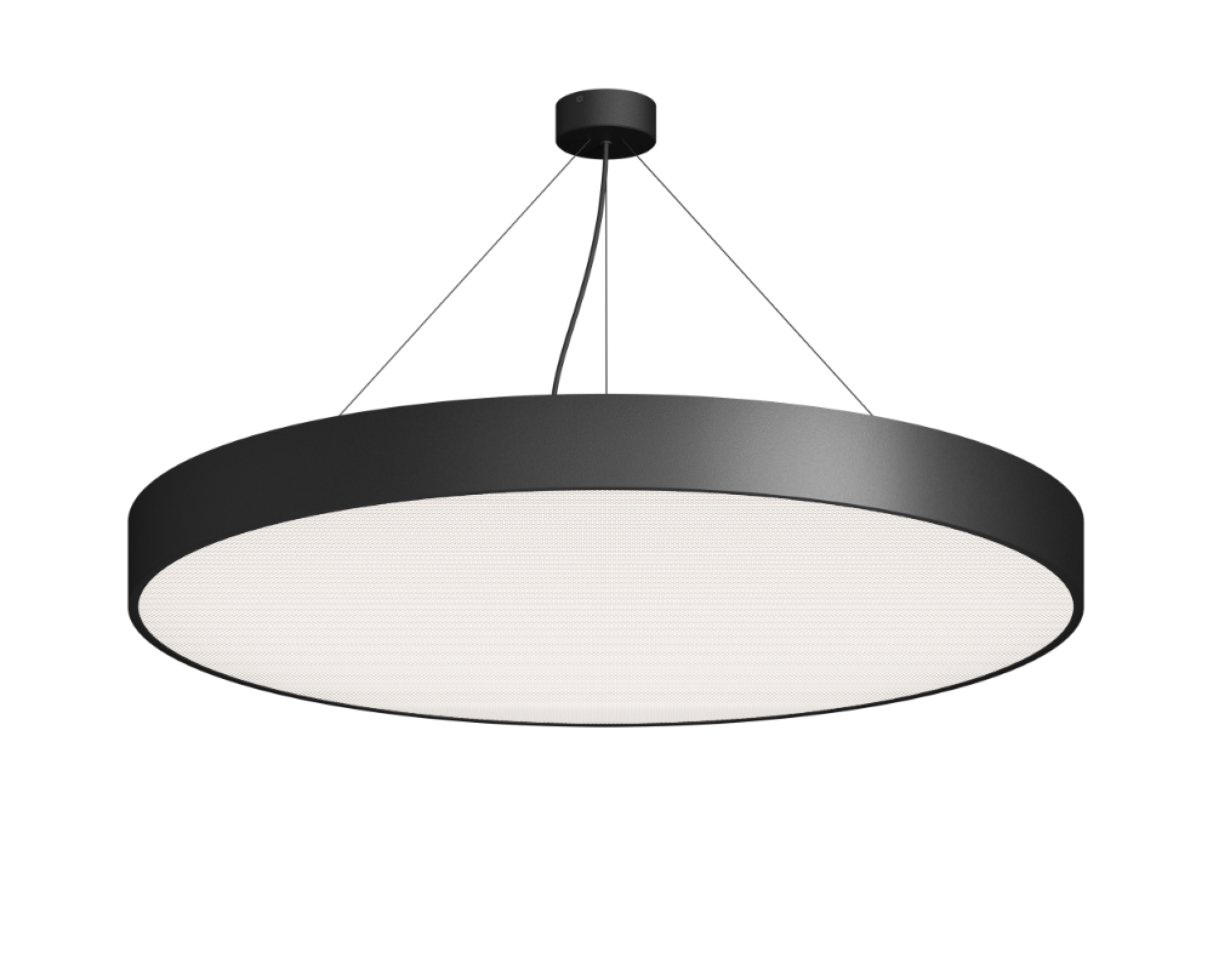

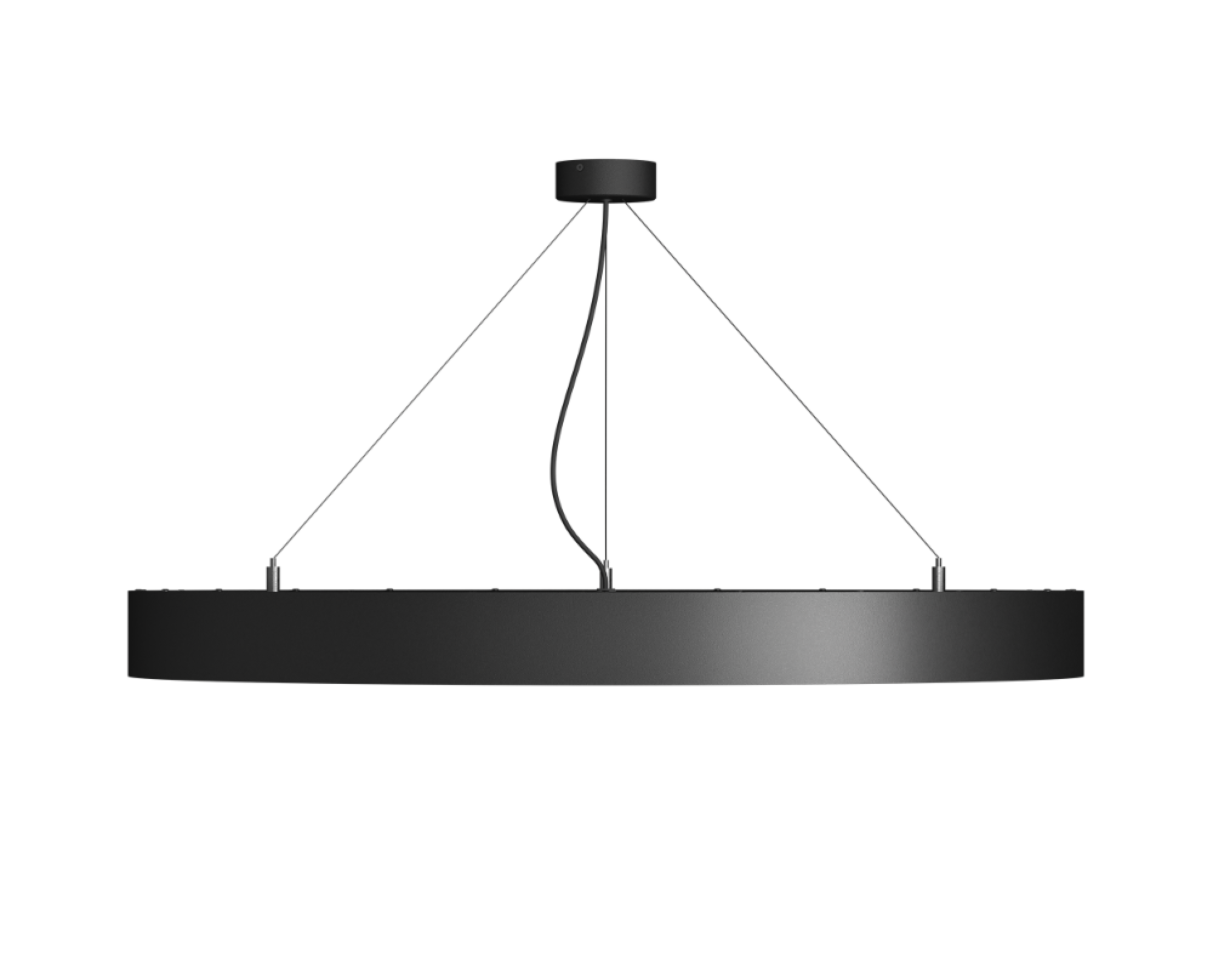

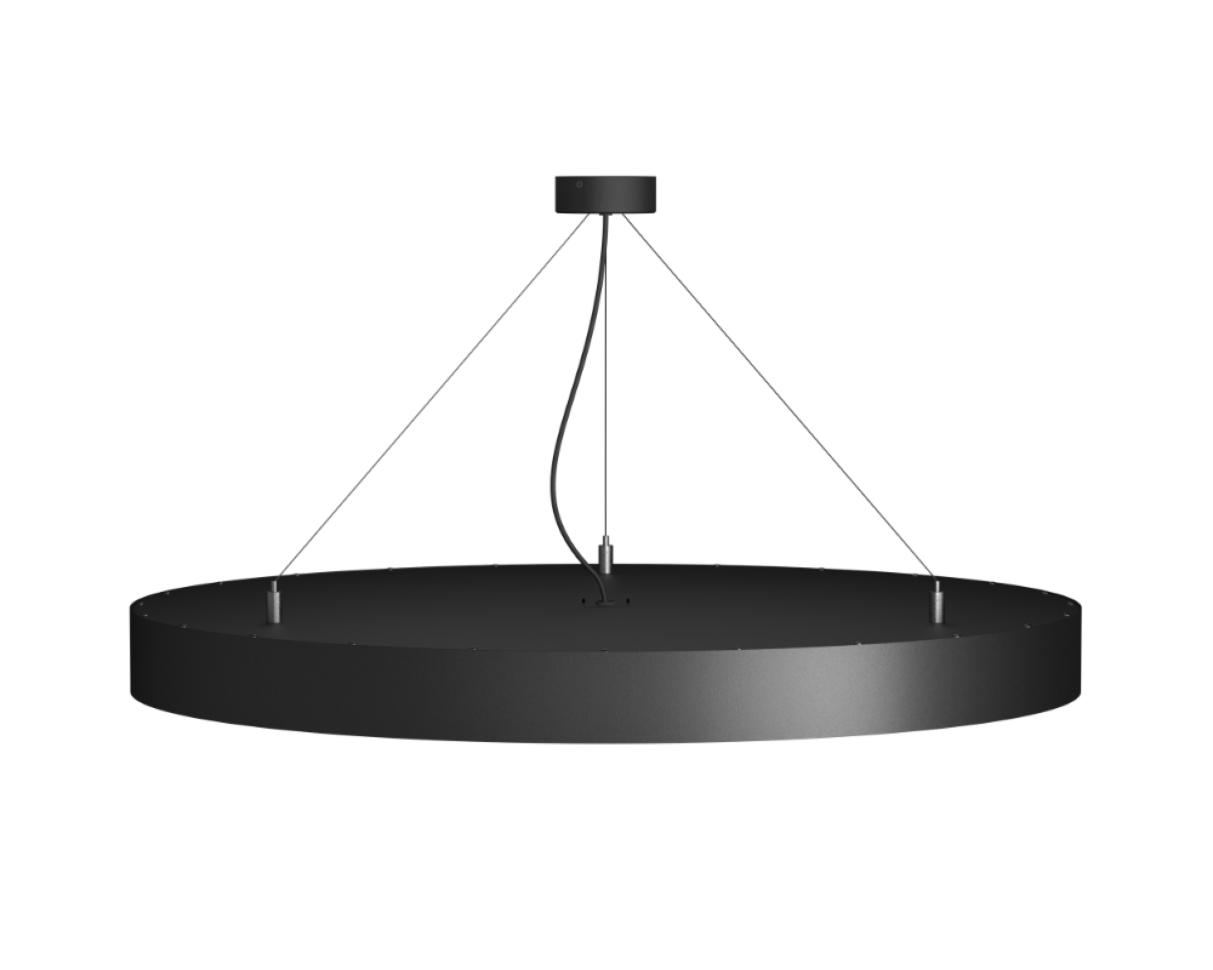

SUNFLOWER Suspended
Produktübersicht
The most beautiful and sunniest luminaire from Vizulo is available in 3 sizes: 600mm, 900mm, and 1200mm, and three different mounting options. It will supplement Your space with comfort, design, and great lighting. Also, You can choose from two different color temperatures: 3000K propose more intimate and cozy lighting for living rooms, or 4000K provides energetic and bright lighting for offices and administrative spaces.
Grundfarben
Spezifikationen
V
220 - 240
Hz
50 - 60
W
20 - 100
lm
2870 - 11400 1
lm/W
106 - 115
K
3000 / 4000 2
°C
+10 to +35
CRI
>80 / >90 / >95 3
>90 / >95 4
mm
ø 600 x 92
ø 900 x 92
ø 1200 x 92
Body: Aluminium profile, steel sheet
Dimming: DALI / 1 - 10 V / Bluetooth / Non dimmable
Initial chromaticity: MacAdam 3
Lifetime: 100 000 h (L80B10) at Ta = 25 °C*
50 000 h (L90B10) at Ta = 25 °C*
Warranty: 5 years
2 years (emergency configuration)
Diffuser: Opal / Microprismatic
Mounting: Suspended
Human Centric Lighting: Available
5
1 Lumen output indicated at CRI > 80
2 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
3 Standard LED CRI
4 Sun-Mimic LED CRI
5 Check SundaHus web page for product assessment results
*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.Lumen output indicated at 4000 K
Sunflower Requirements: https://bit.ly/3pWbtls
