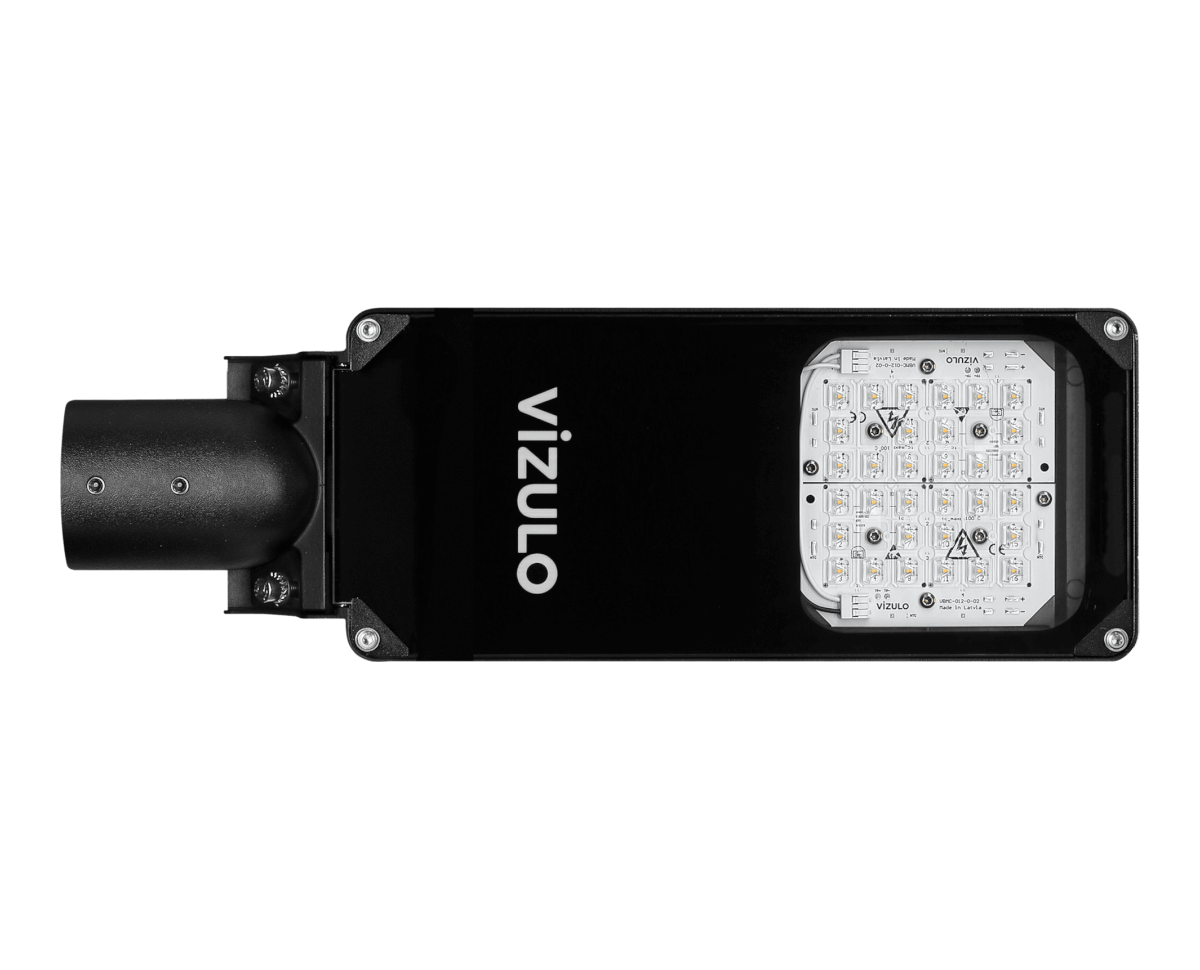

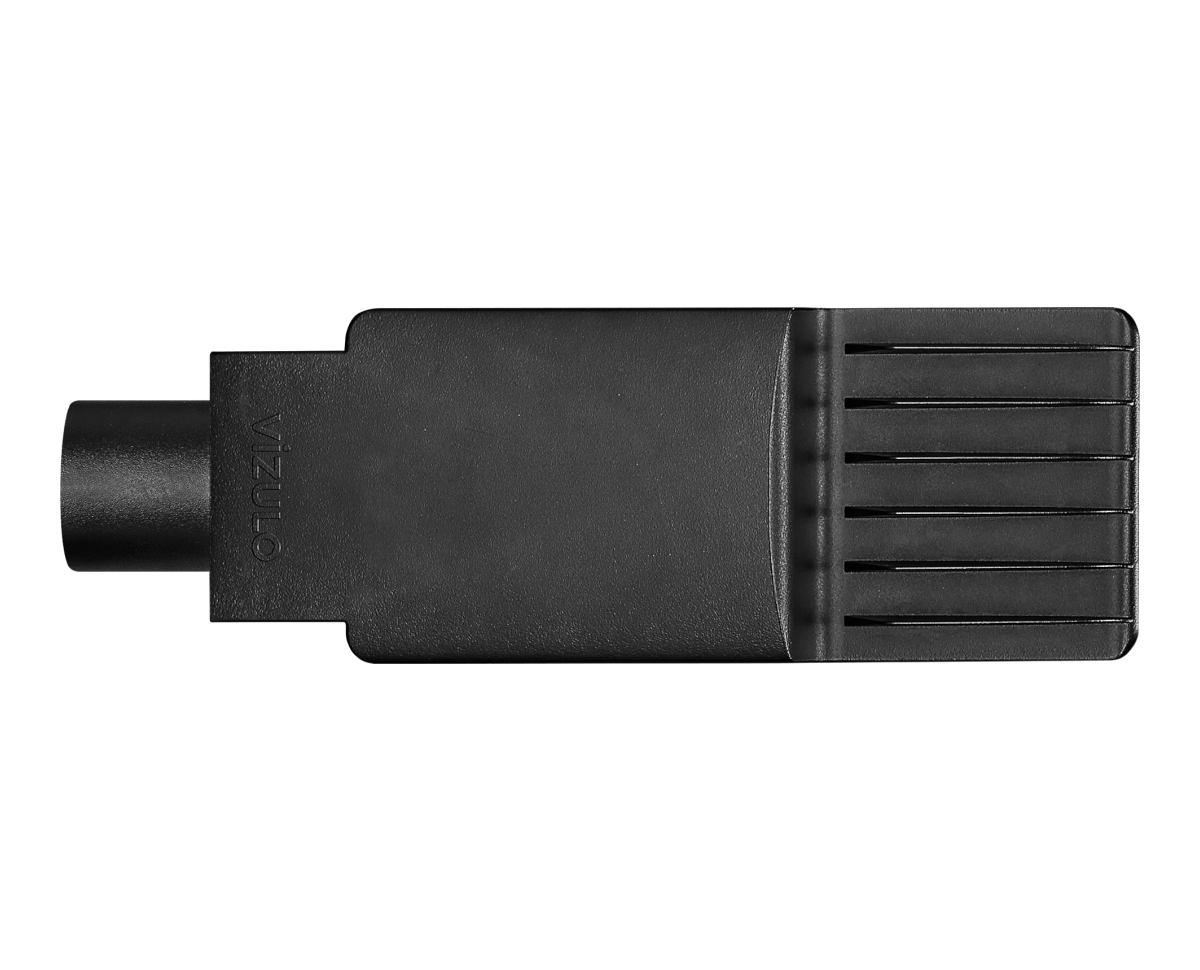

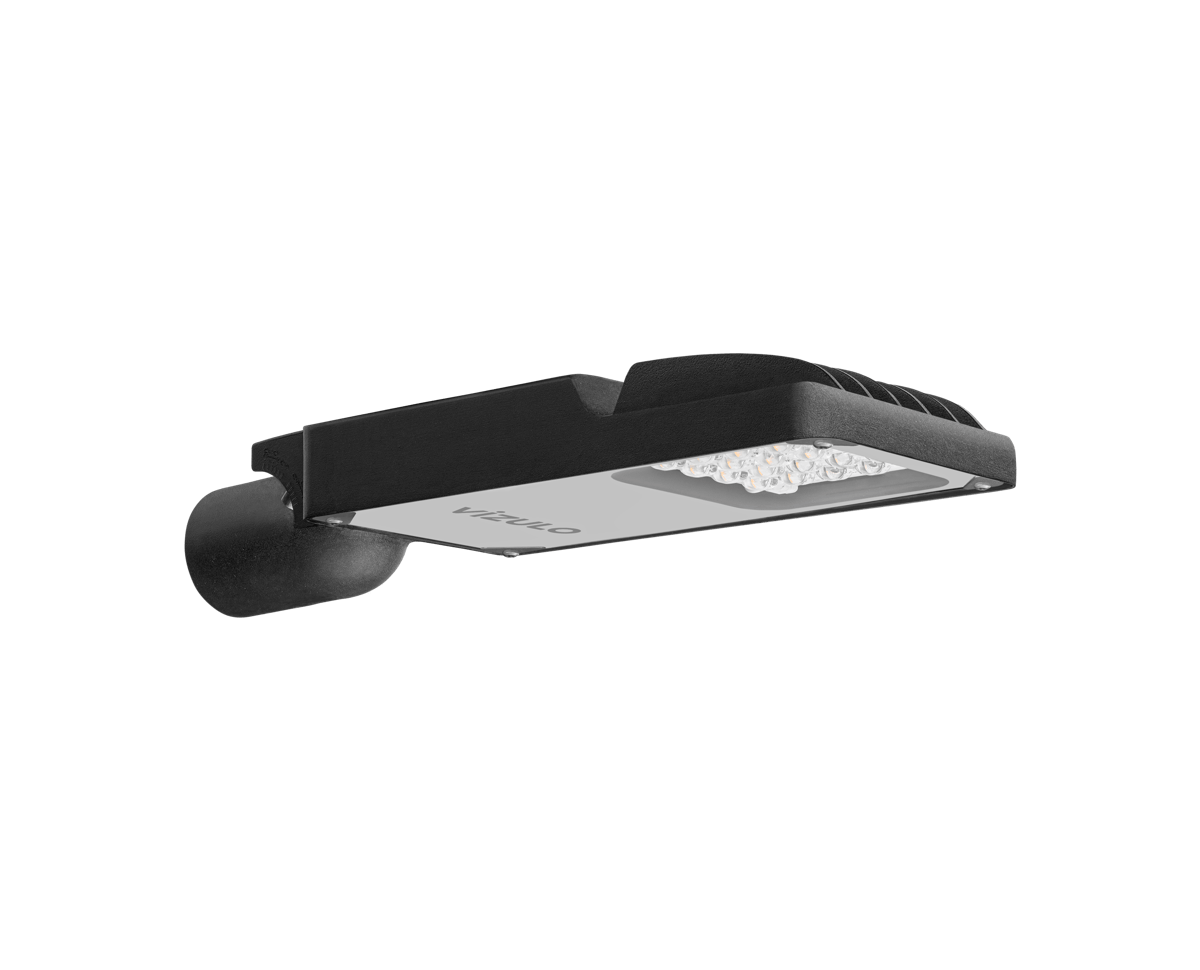

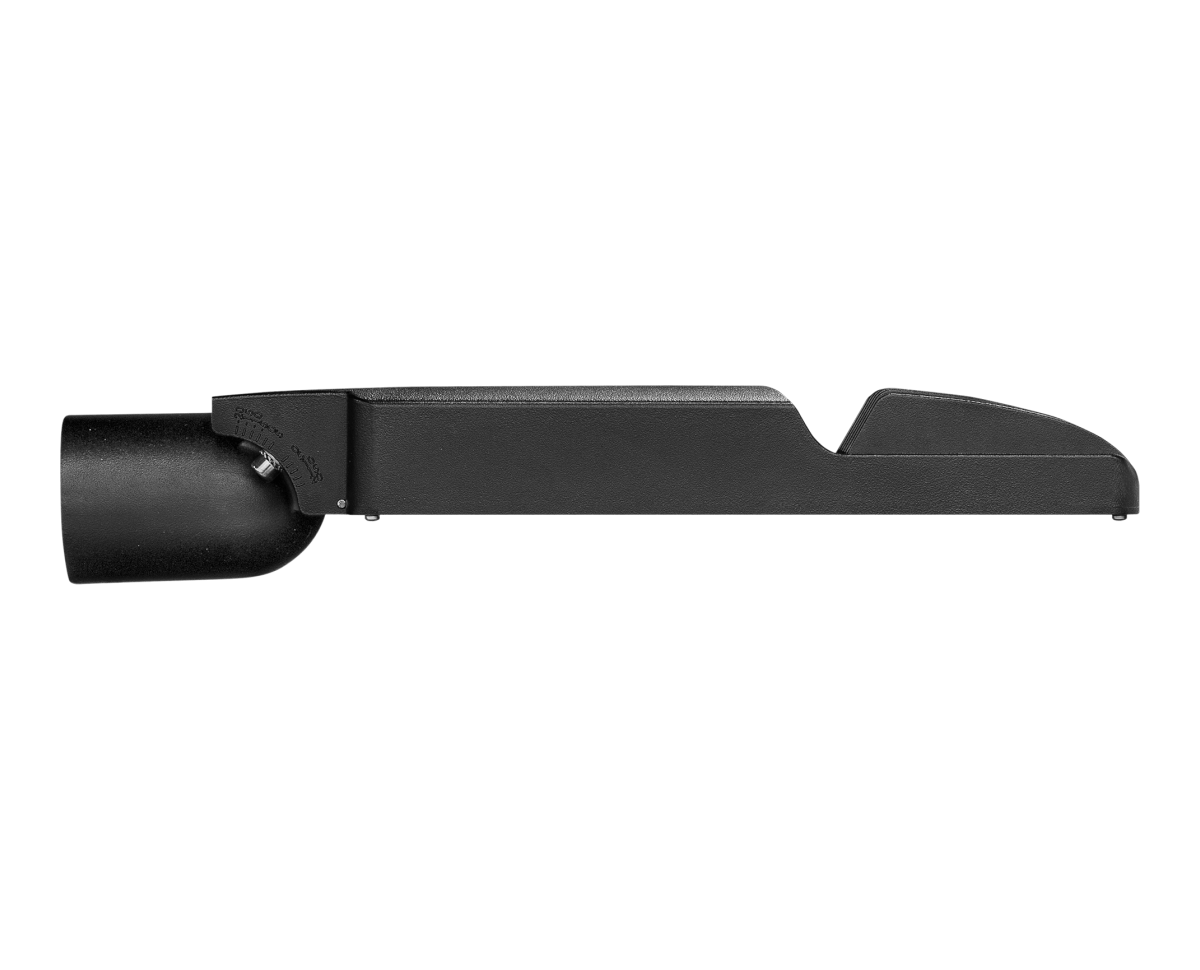

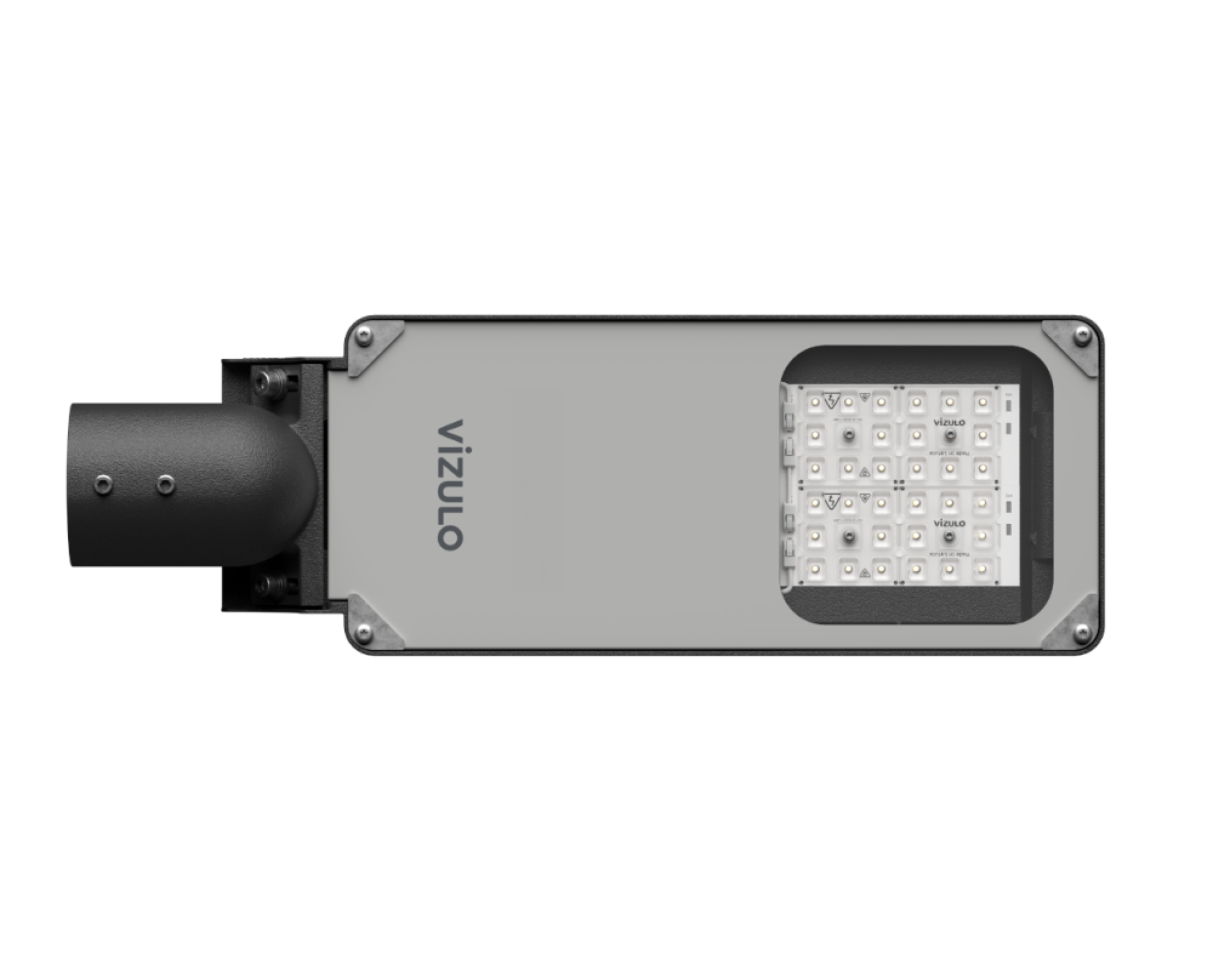

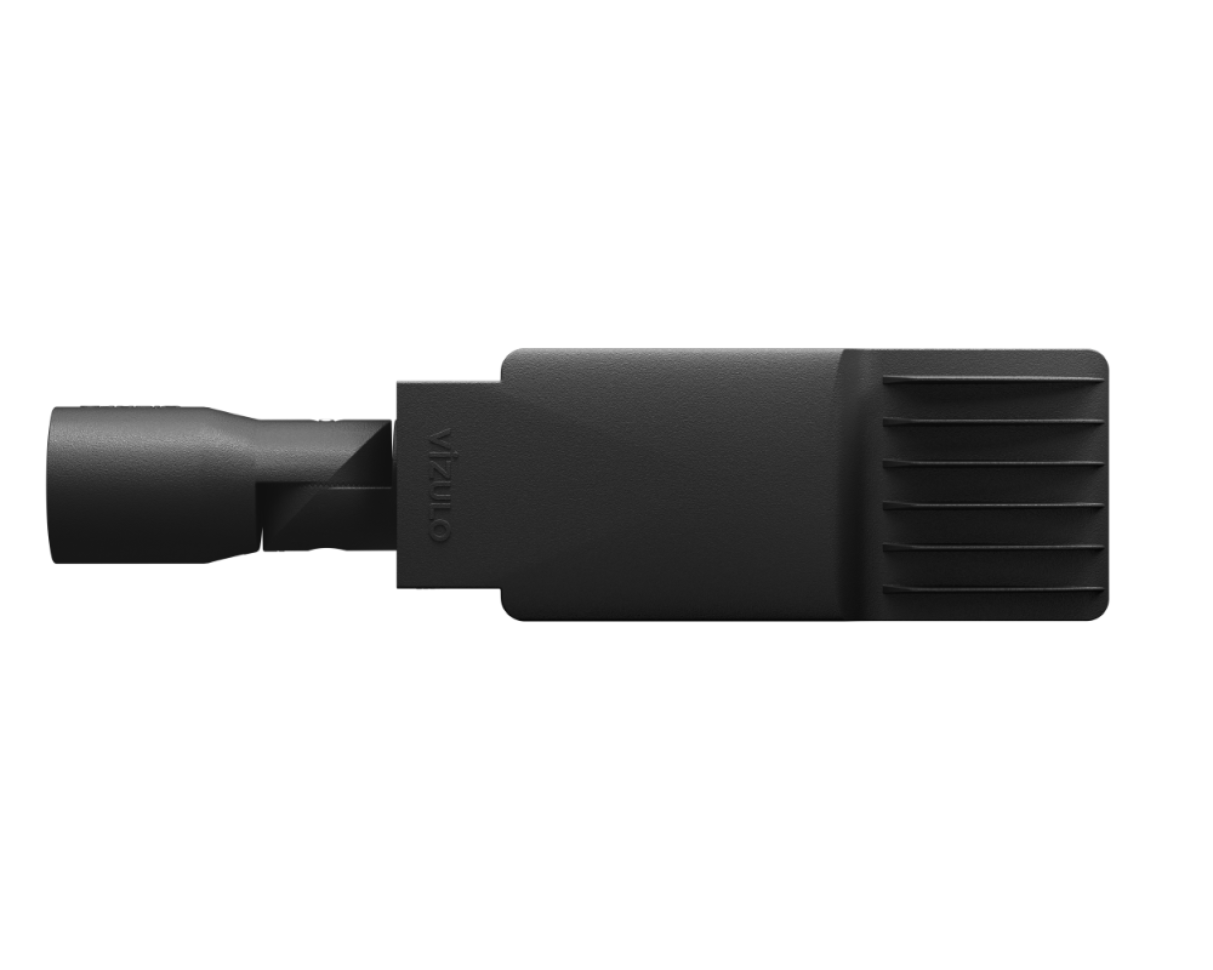

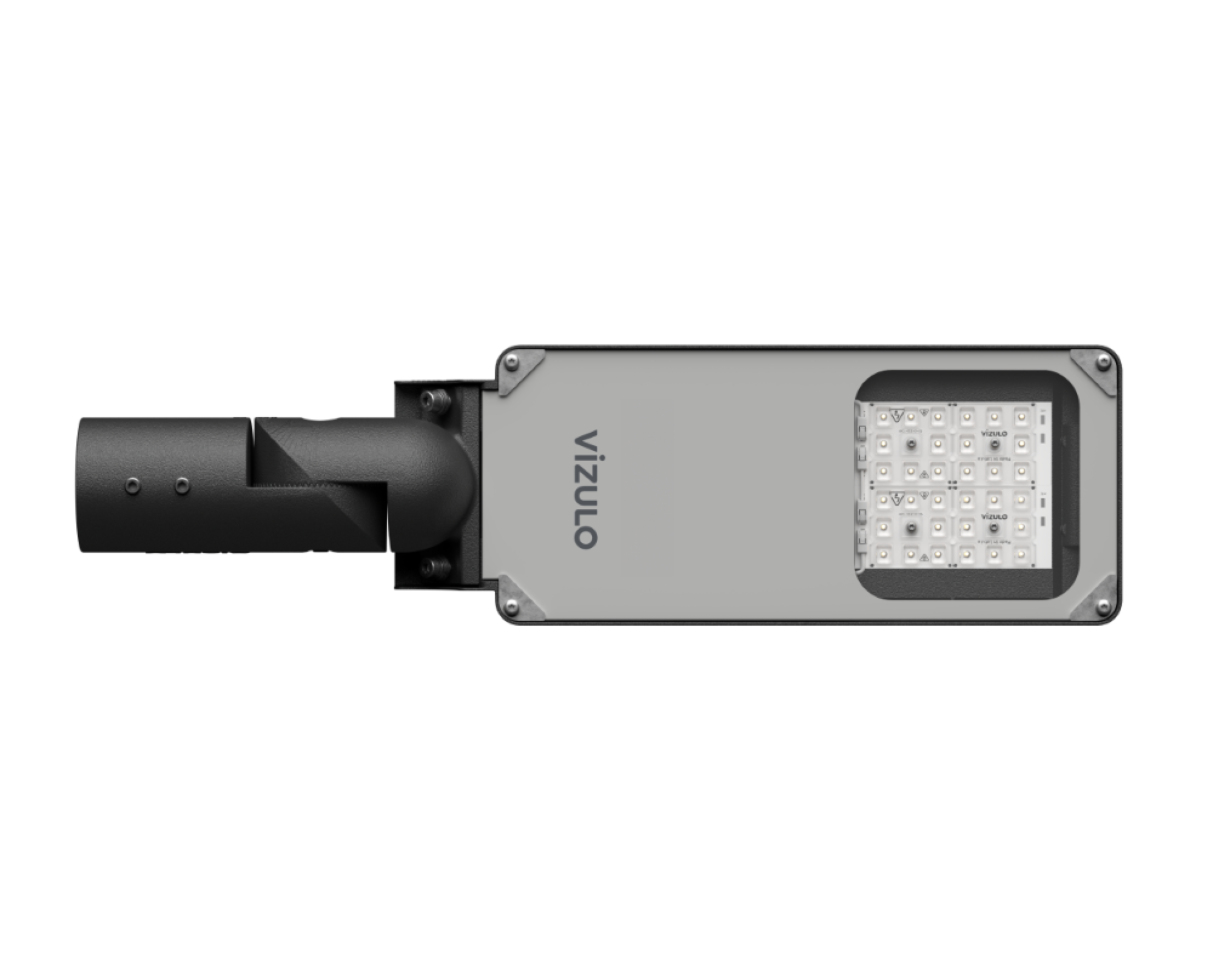

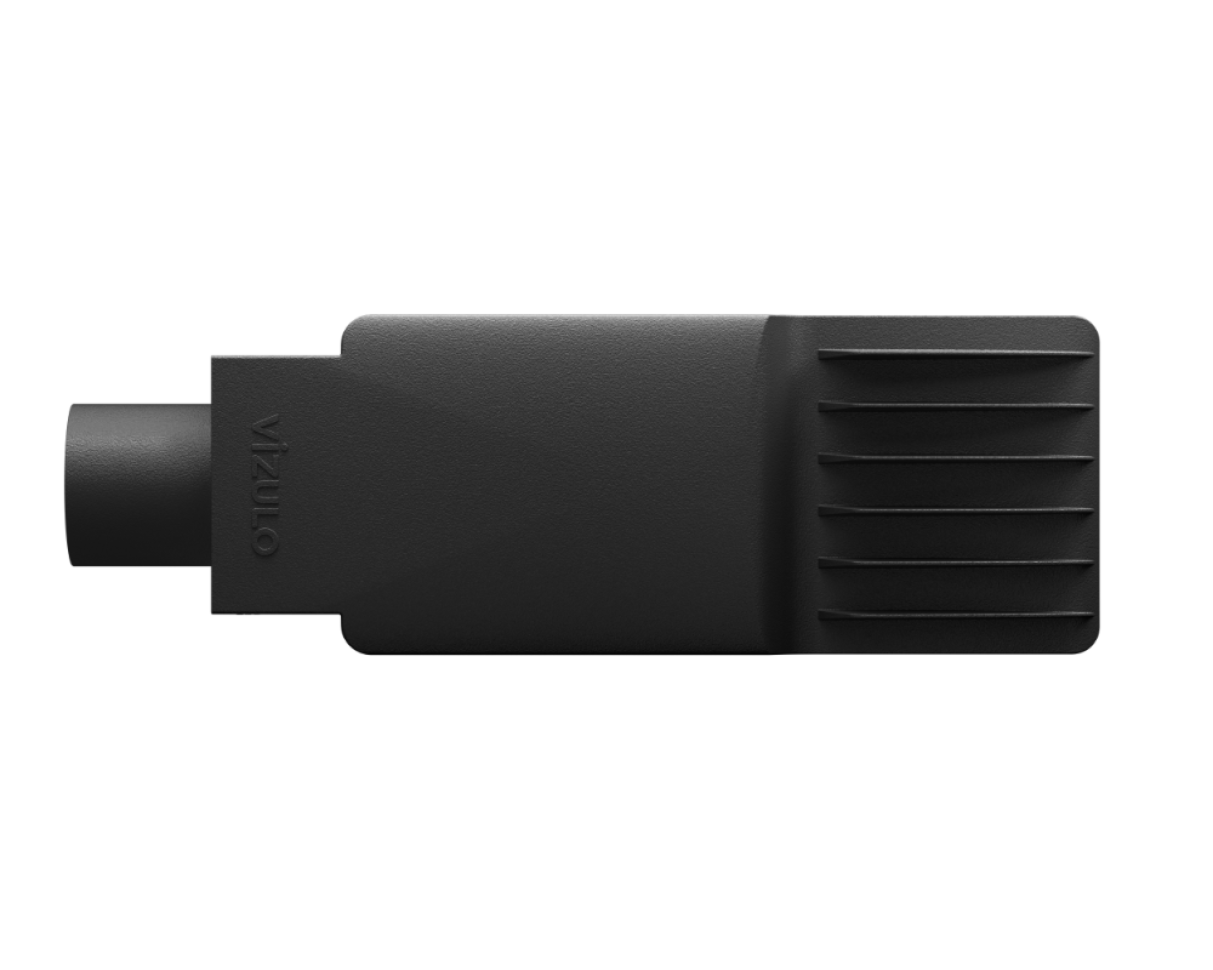

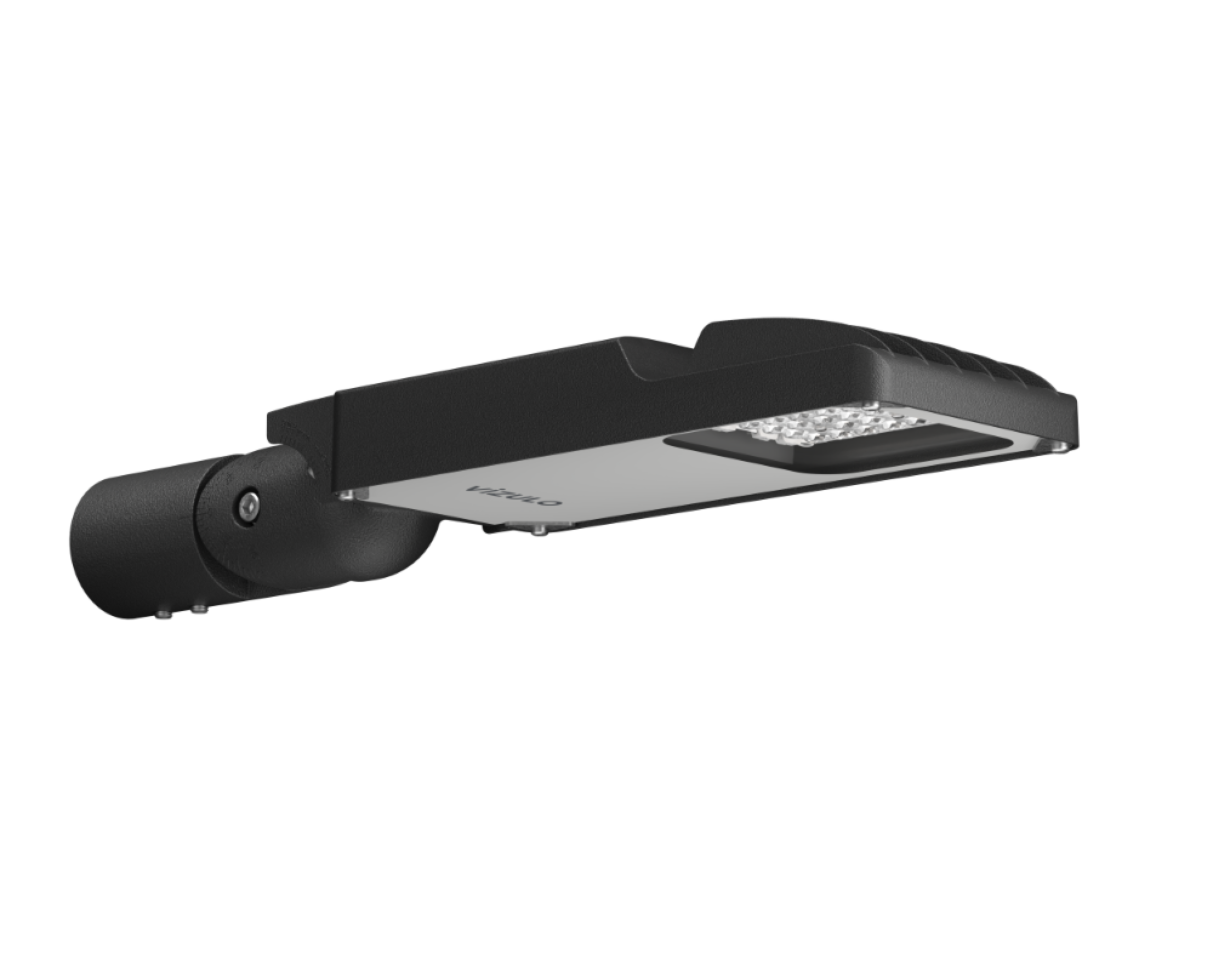

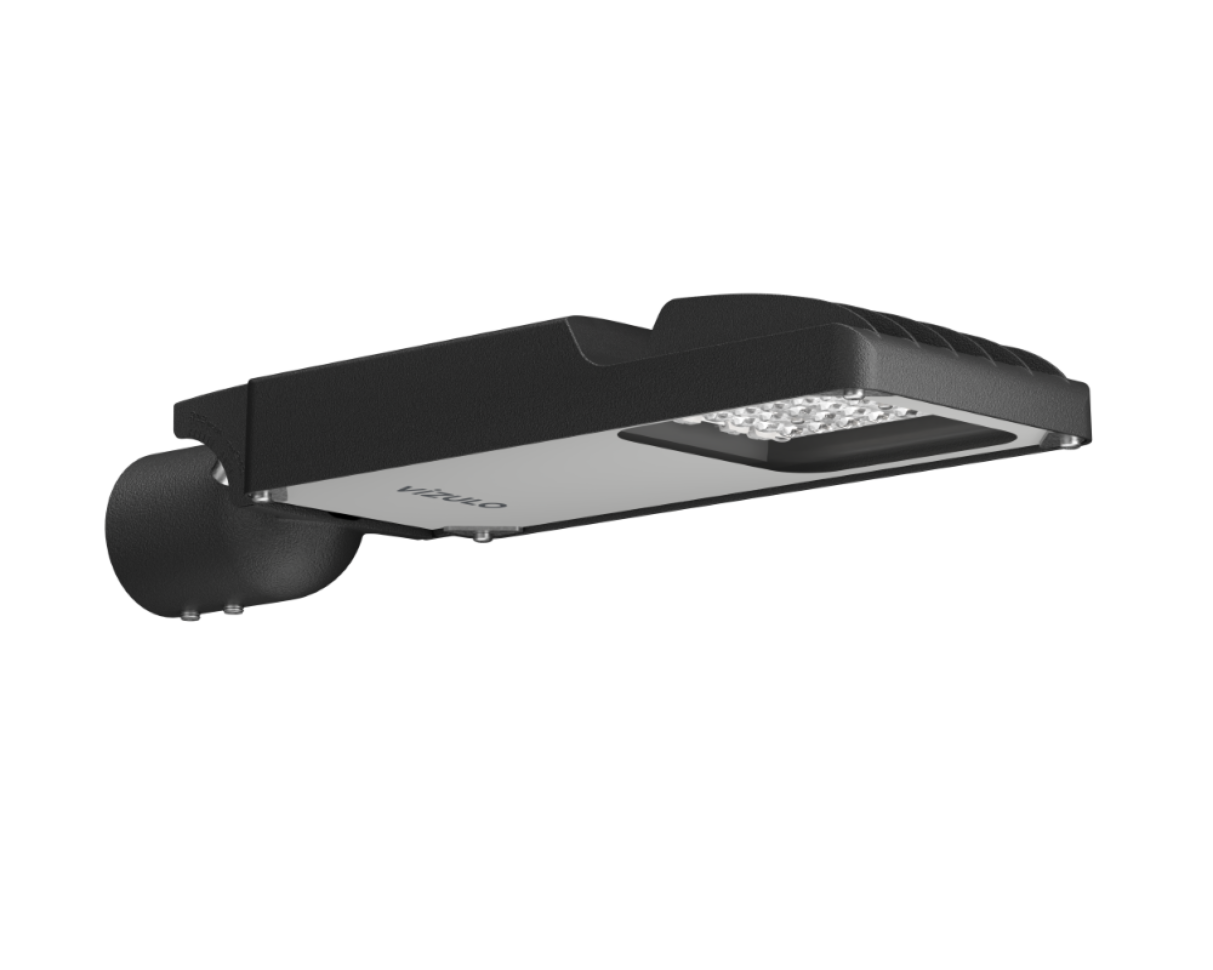

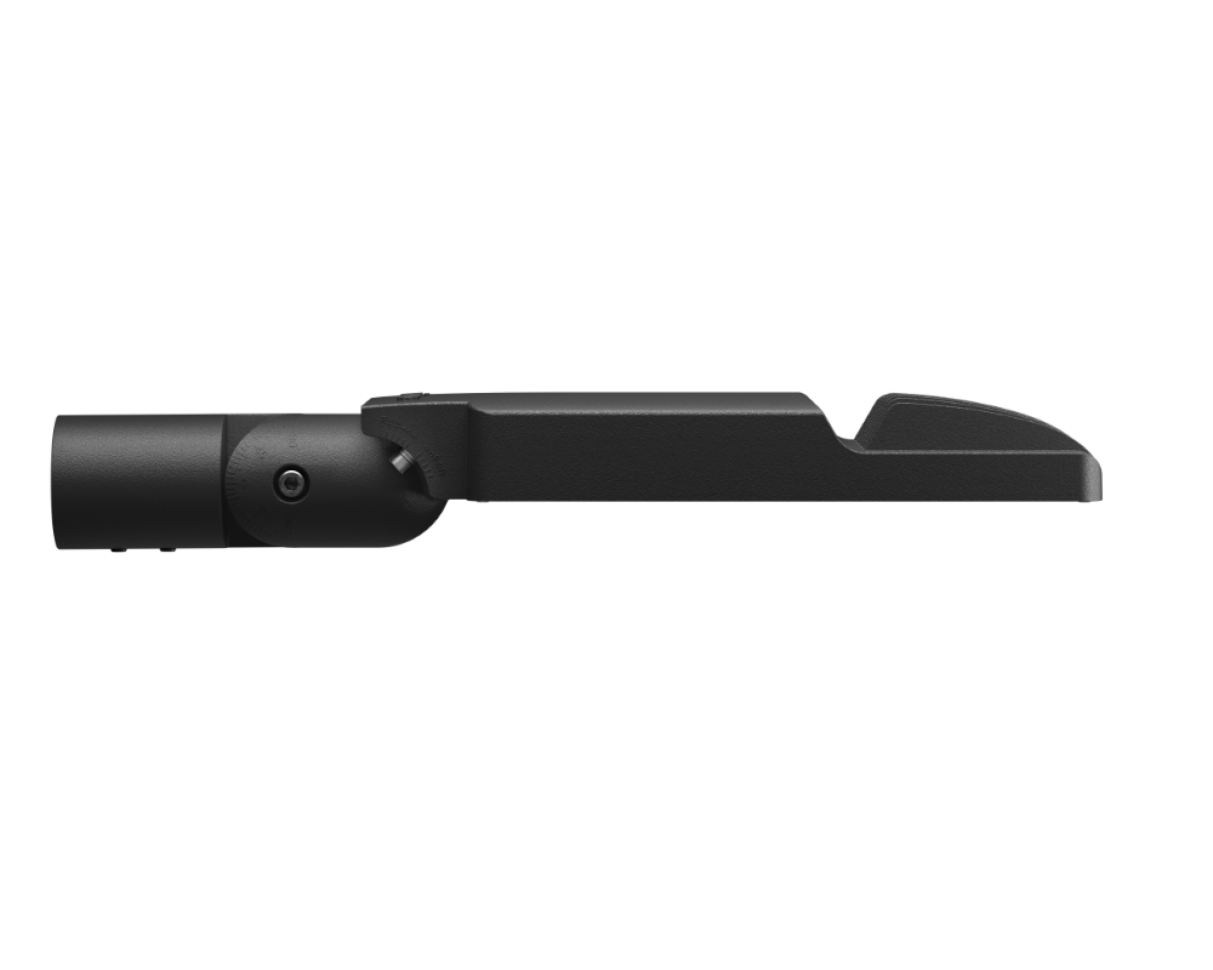

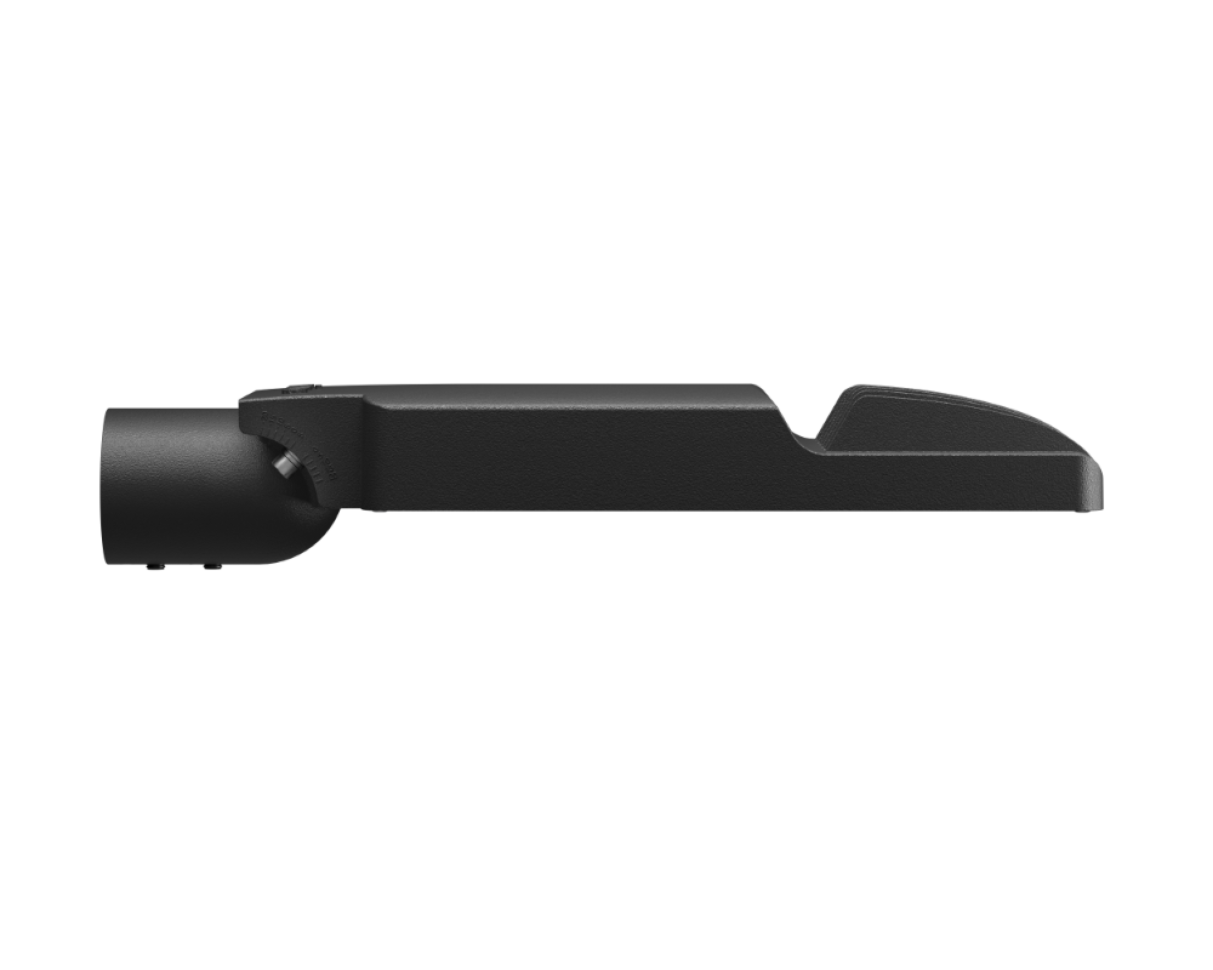

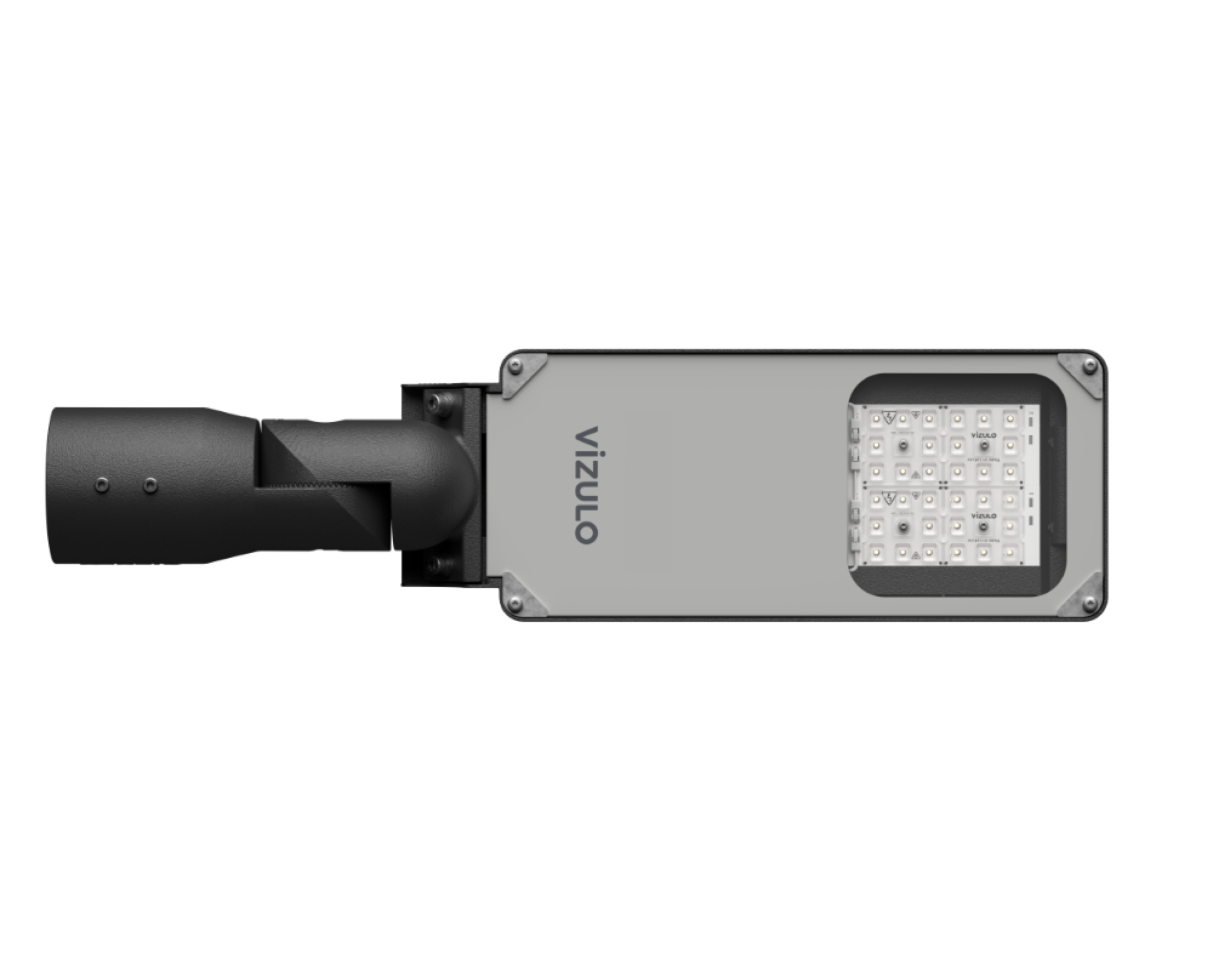

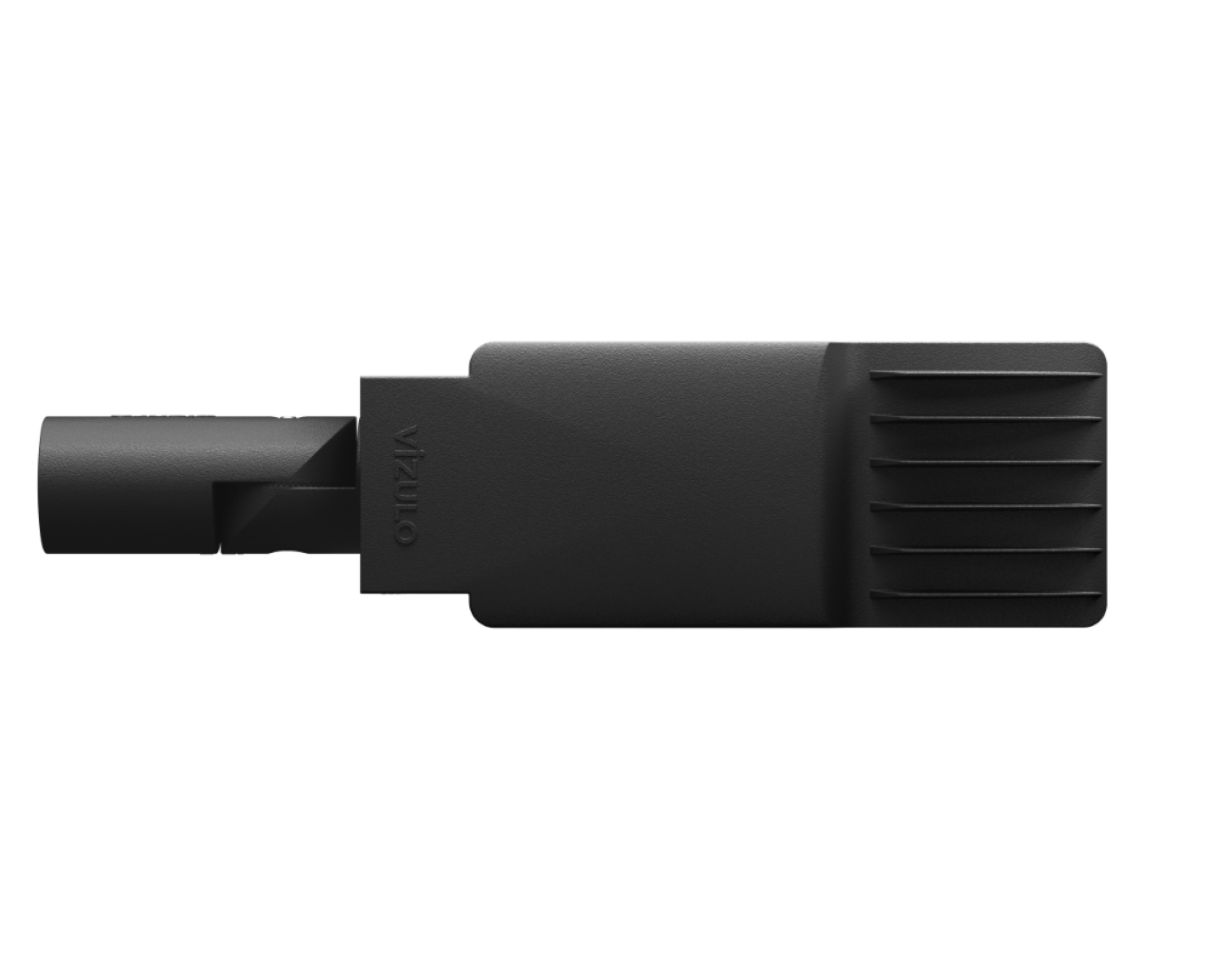

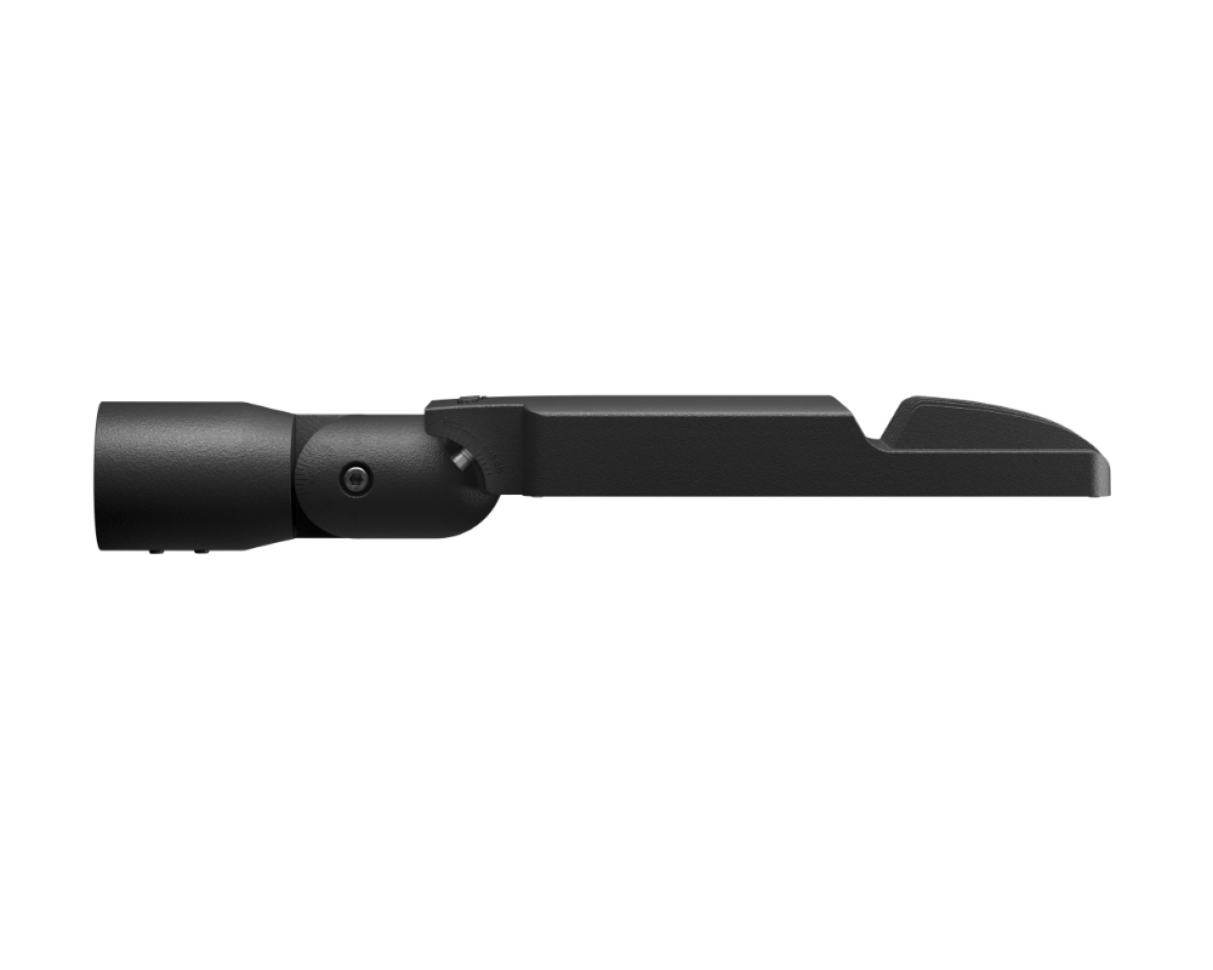

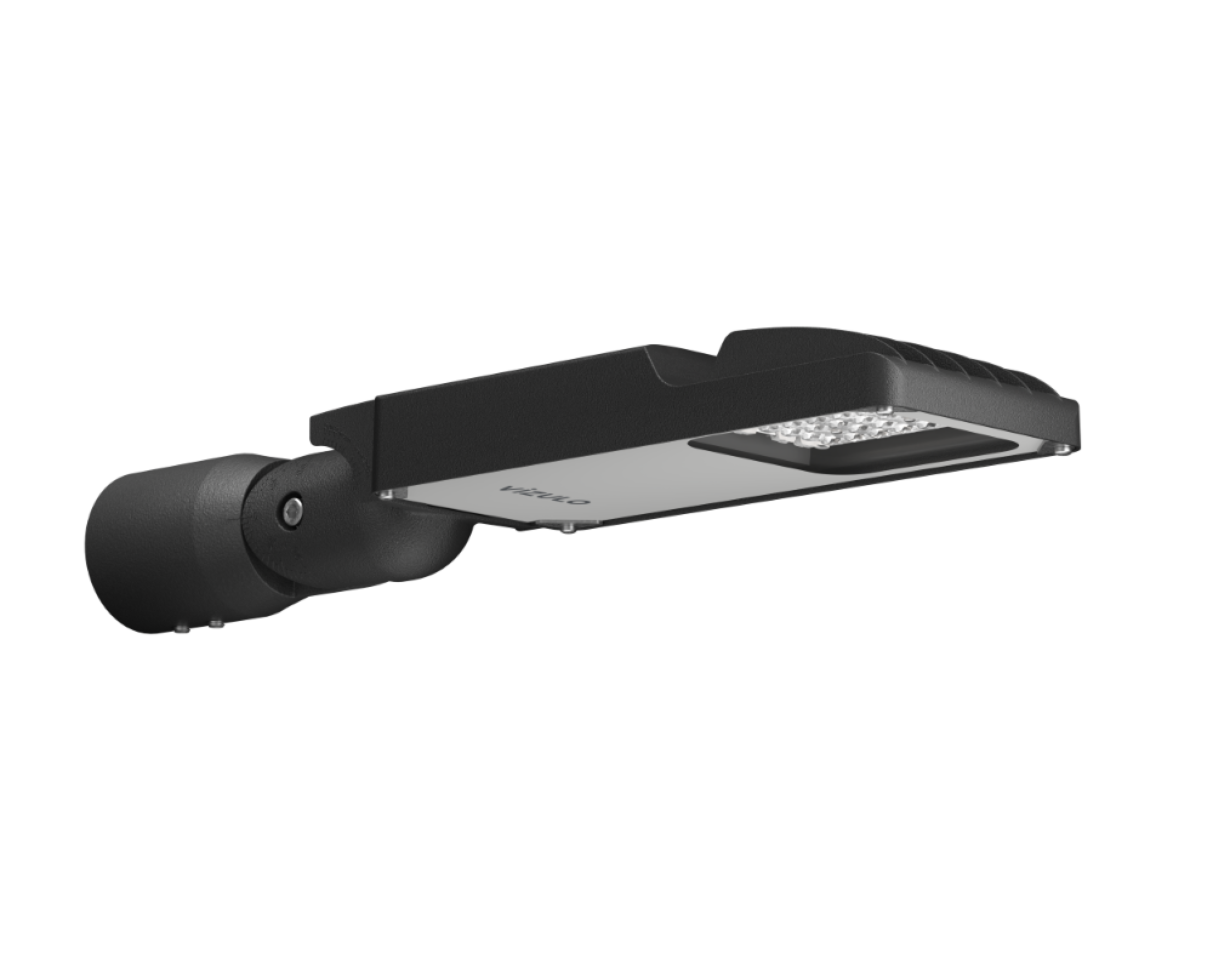

    Product overview

    This little bird has the heart of an eagle. Remarkable power and precision with more than 50 optics ready to illuminate city landscapes, sports events and large industrial areas. The sturdy Micro Martin won’t let you down even in the harshest environments.We have developed four convenient enclosure options, including a tool-less configuration – for ultimate accessibility. Spend less time on installation or maintenance, and more time living!

    Basic Colours
    • Silver   RAL9006
    • Asphalt     DB703

    Other colors available on request

    General Information
    • V220 - 240
    • Hz50 - 60
    • W5 - 75
    • lm470 - 8875
    • lm/W90 - 138
    • K3000 / 4000
    • -40 to +50
    • CRI>70 / >80 1
    • mm517 x 170 x 96

    Chromaticity tolerance (initial MacAdam): 5Radio frequency1-10; DALI; Mignight dimmingWarranty 5 years100 000h (L95B10) at Ta = 25oC100 000h (L80B10C10) 2

    Body: Die-cast aluminumSurge protection: 6 kV / seperate bulit-in 10 kVSpigot: ø 40 - 60 mmMax.wind load area, SCd, m2: 0,036

    Class I

    Class II

    CE

    ENEC

    ENEC Plus

    RoHS

    International EPD System 3

    IP66

    IK08

    LED module replaceability

    LED driver replaceability

    1 Luminaries with color rendering index (CRI): Ra >90 on request2 Average lifetime value for ECO model at Ta = 25C is 100 000h L80/B10*3 EPD registration number: S-P-04351 (link to page)

    *This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models and will reach 100 000h L90/B10. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
