Specifications

Features

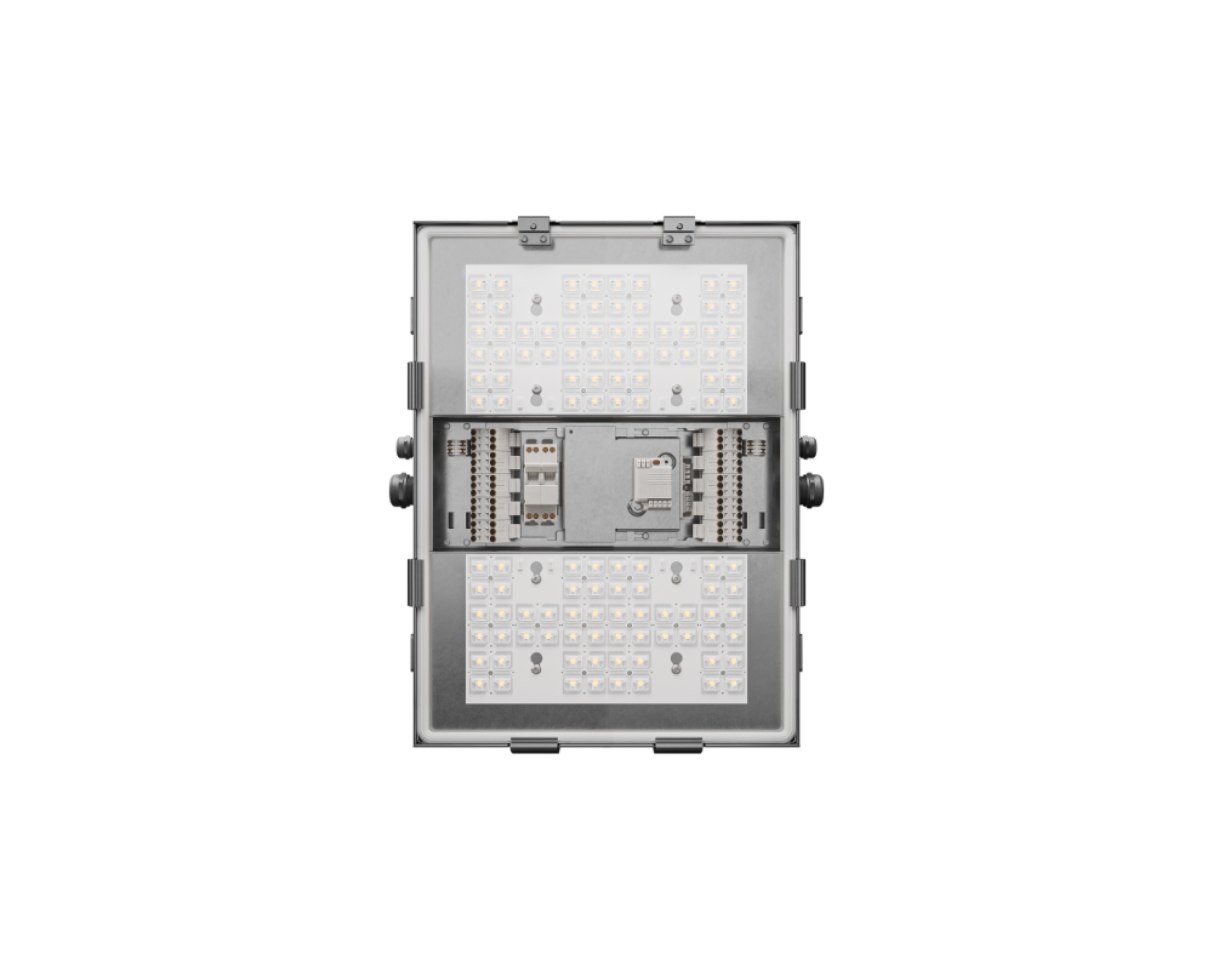

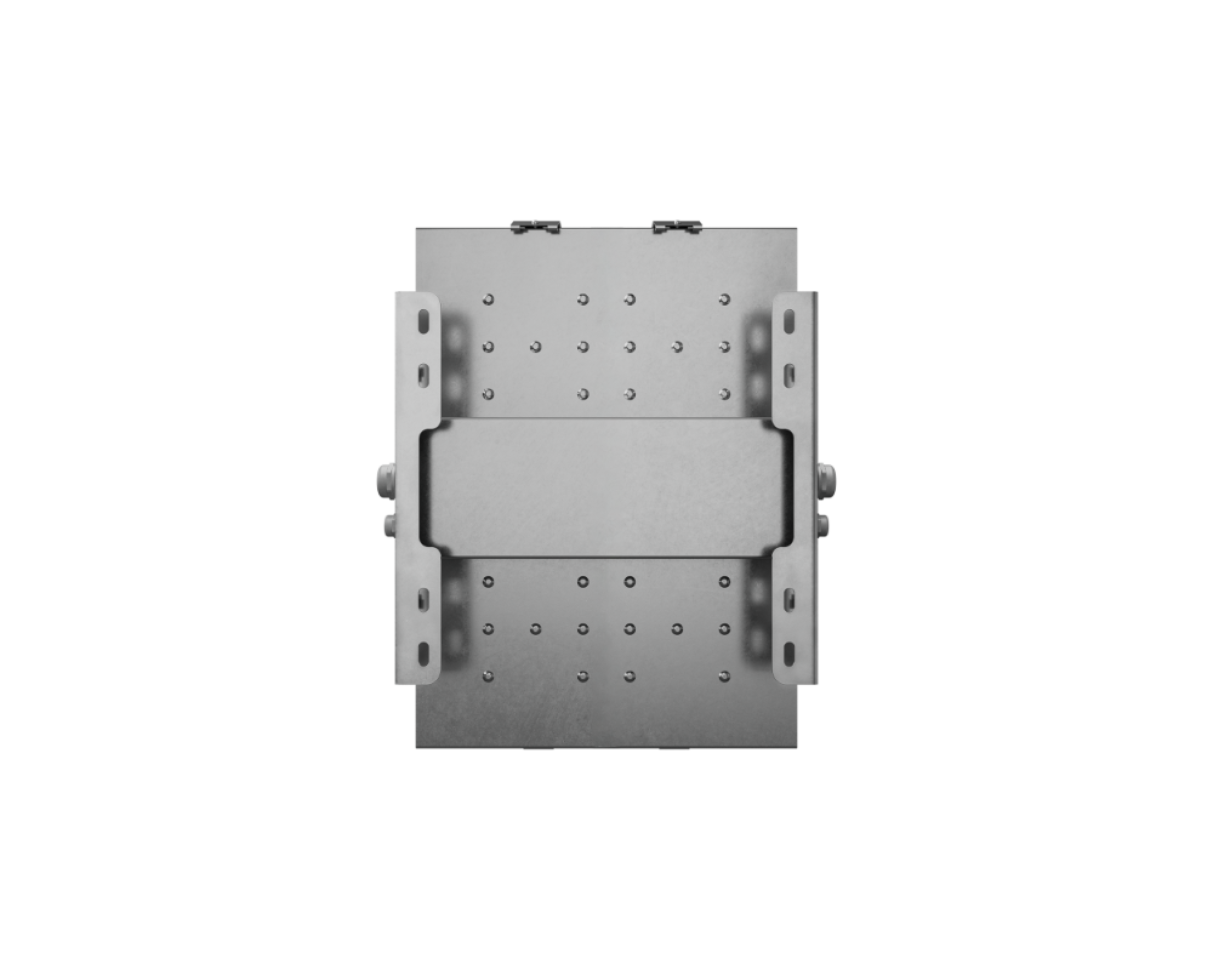

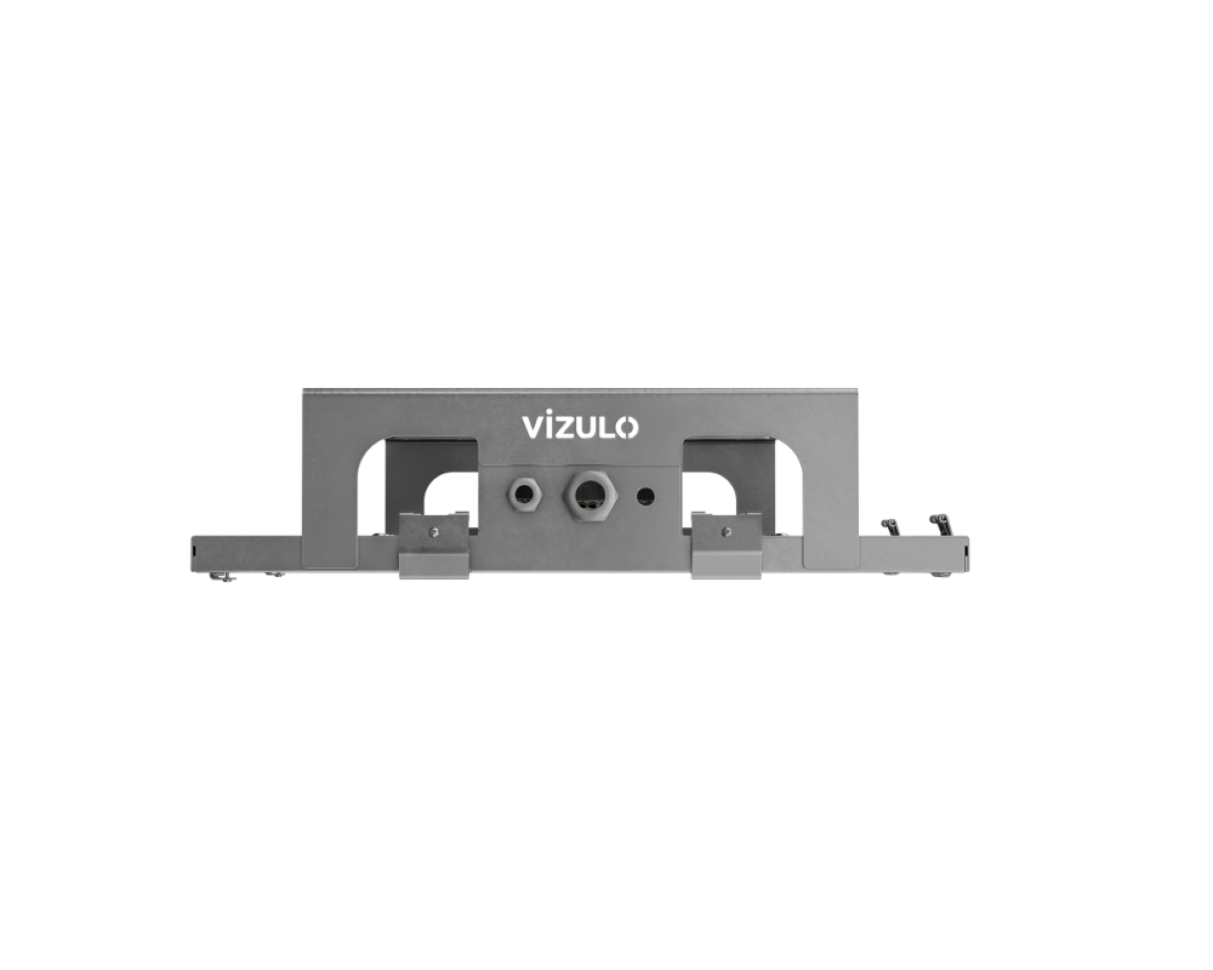

NIGHTJAR Small

Product Overview

Basic colours

  • Stainless steel

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

64 - 180

lm

Up to 26508 2

lm/W

Up to 147

K

2700 / 3000 / 4000 3

°C

-40 up to +50 4

CRI

>70 / >80 / >90 3

mm

492 x 573 x 141

Body: AISI 316L

Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Up to 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Tool-less with safety screw

Mounting: Oogland 300 / 400 / 500 / 600 mm

                    Wall 5 / Ceiling 5 / On rod

Intelligent control: Tunnel CMS

Surge protection: 4 / 6 / 10 kV 6

Corrosion protection: CX

Power Factor: ≥ 0.97 at full load

Class I
IP66
IK09
CE
UKCA
RoHS
cUL 7
ENEC 7
ENEC Plus 7
International EPD System 7
LED module replaceable by a professional
LED driver replaceable by a professional

1  Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2  Lumen output indicated at CRI > 70
3  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4  Operating temperature differs depending on chosen output wattage
5  Brackets with fixed or adjustable angle for wall and ceiling mounting
6  10 kV (L-N; L/N-PE) surge protection device available on request
7  Coming soon

* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
