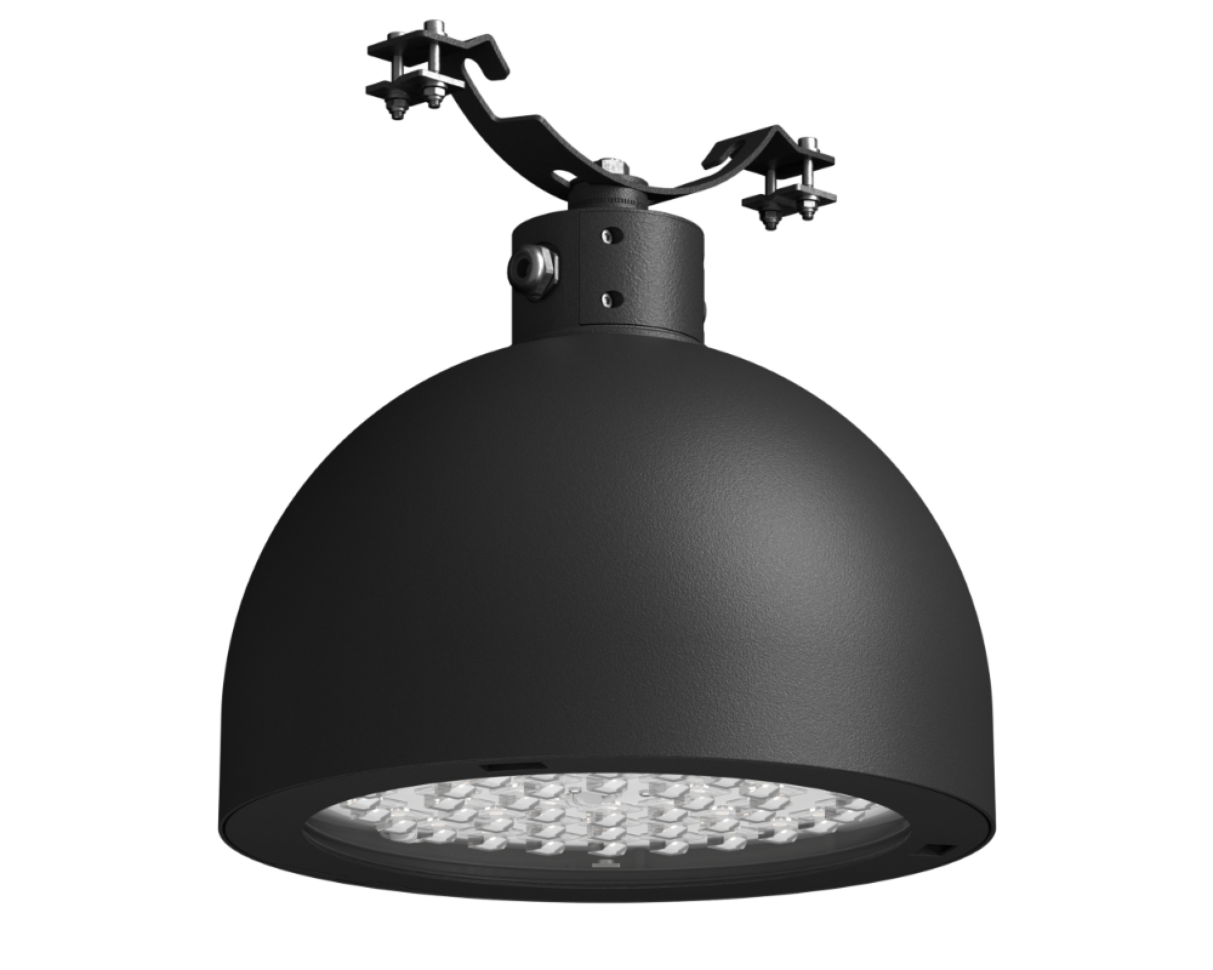

BLACKBIRD Hanging | Tool-less
Product Overview

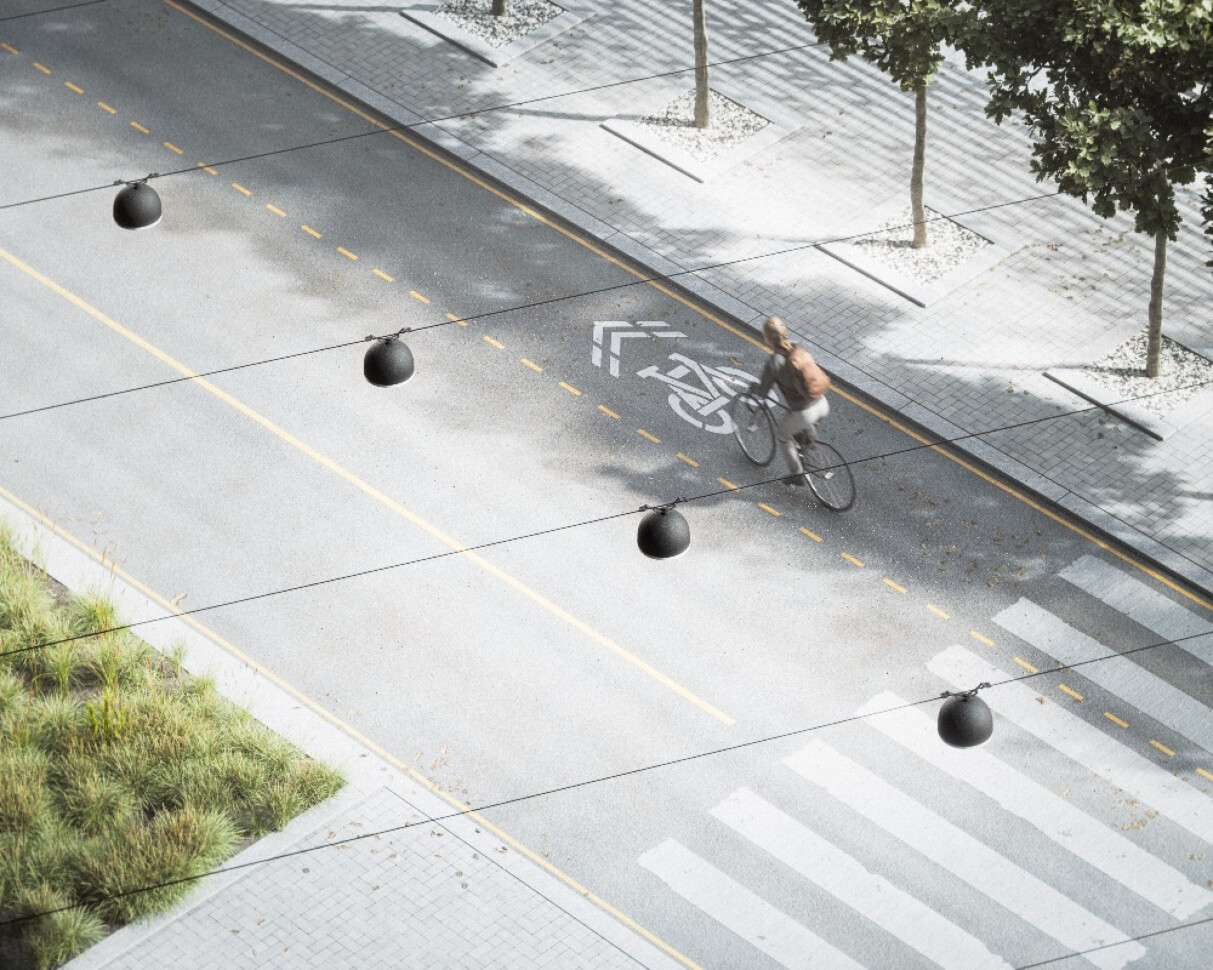

Bring out the natural beauty of any environment with this unique example of Scandinavian design. The multifunctional luminaire really shines in both classic and modern urban exteriors, creating a sense of wonder and delight. With seven different shapes and plenty of configuration options available, the Blackbird will find its place in projects of any scale.
Basic colours
Specification
V
220 - 240 / 110 - 277 1
Hz
50 - 60
W
5 - 100
lm
441 - 15500 2
lm/W
88 - 160
K
2700 / 3000 / 4000 3
°C
-40 up to +50 4
CRI
>70 / >80 / >90 3
mm
ø 380 x 309
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Initial chromaticity: MacAdam 5
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: Pre-wired cable 30 cm 5
Mounting: On wire Ø 5 - 12 mm
Socket: NEMA Top / Zhaga Top and Bottom
Intelligent control: Stand-alone / Group / CMS
Surge protection: 4 / 6 / 10 kV 6
Nature friendly: PC Amber / Red / 1800 K
Corrosion protection: Up to C5
Neto weight: Up to 7.8 kg
Max. wind load area, SCd: 0.09 m2
7
7
8
8
9
1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
Note! Only fixtures with CCT of 3000 K or lower are DarkSky approved!
4 Operating temperature differs depending on chosen output wattage
5 Other lengths available on request
6 10 kV (L-N; L/N-PE) surge protection device available on request
7 Depending on configuration
8 Coming soon
9 EPD registration number: S-P-05892 (link to page)
* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
