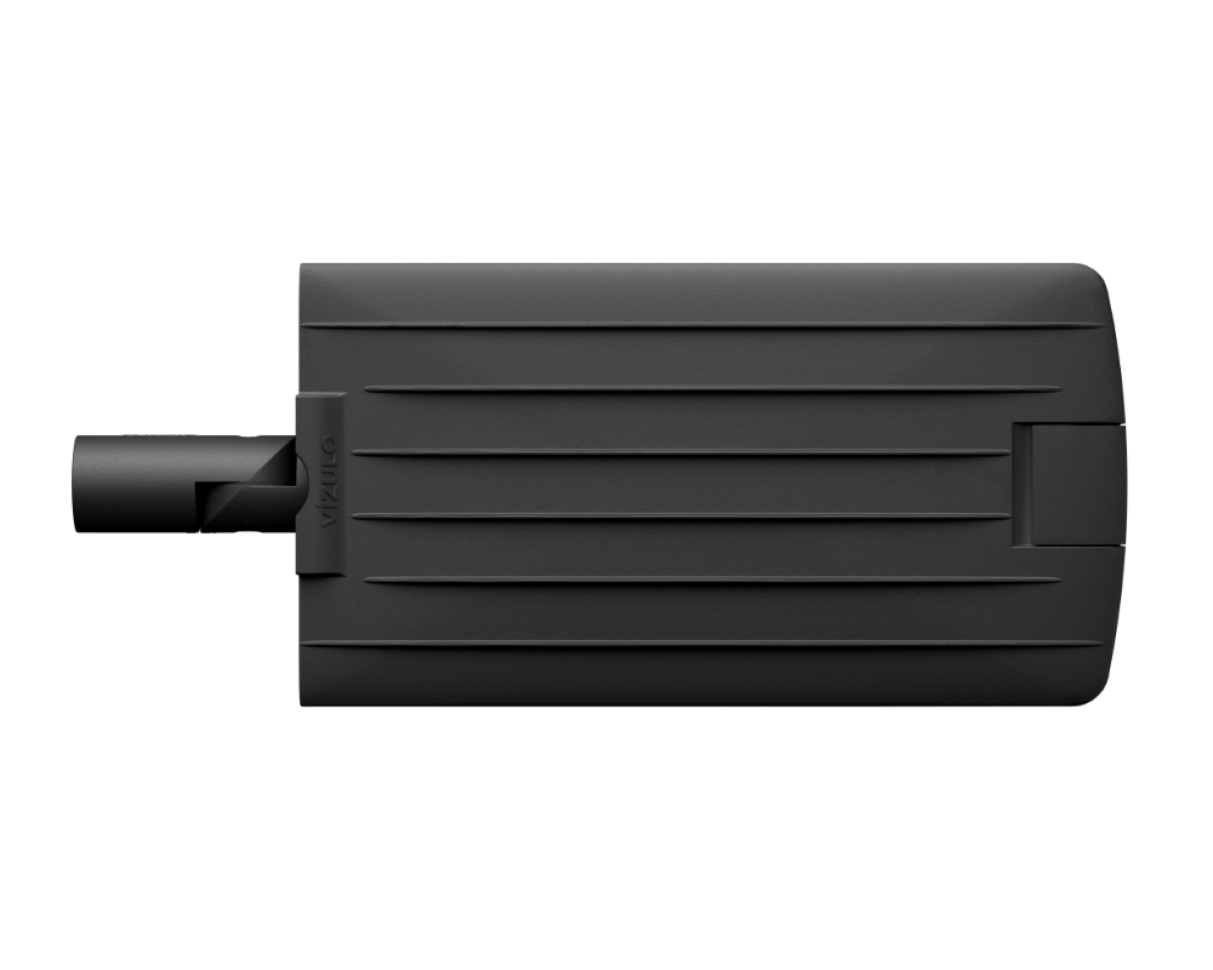

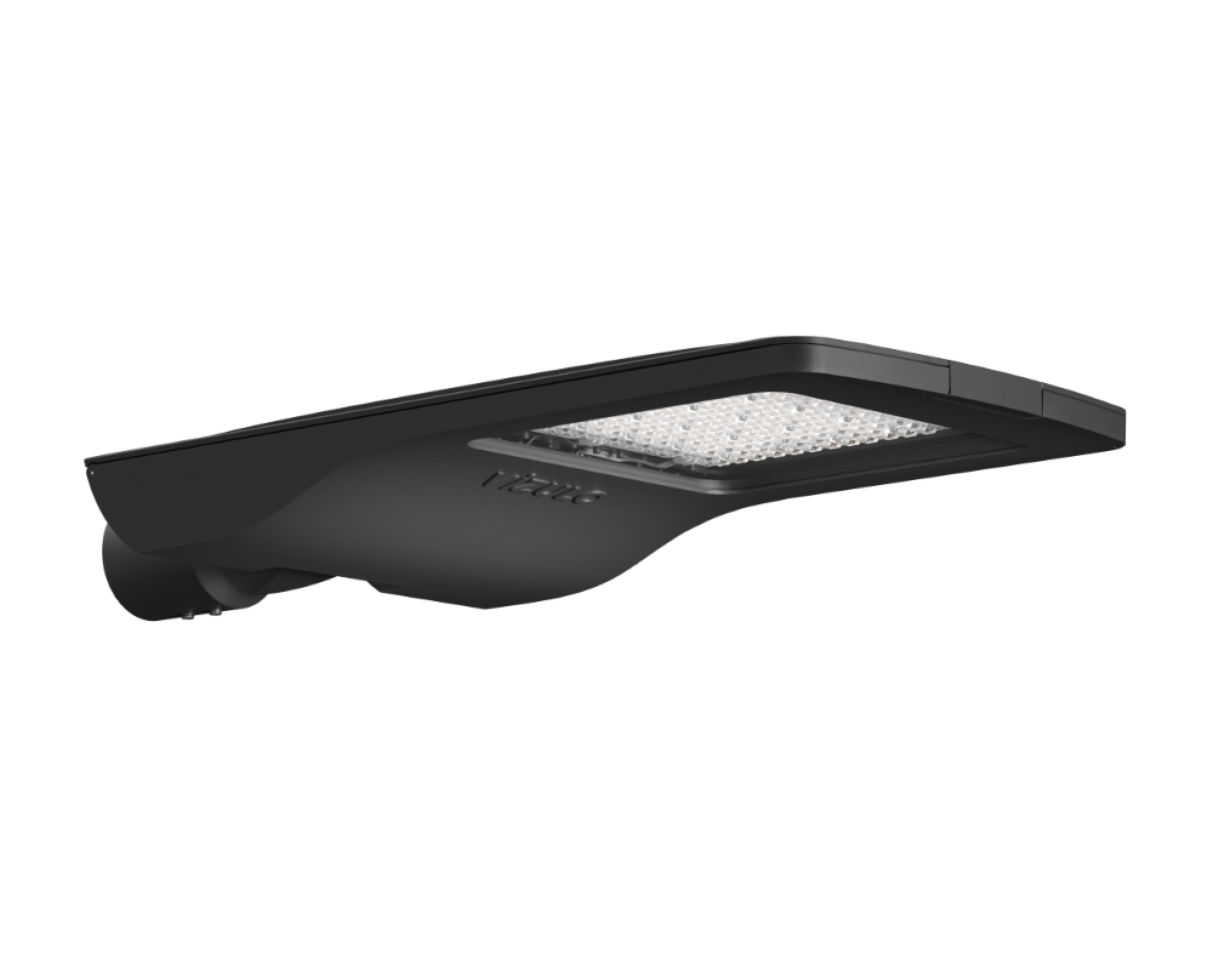

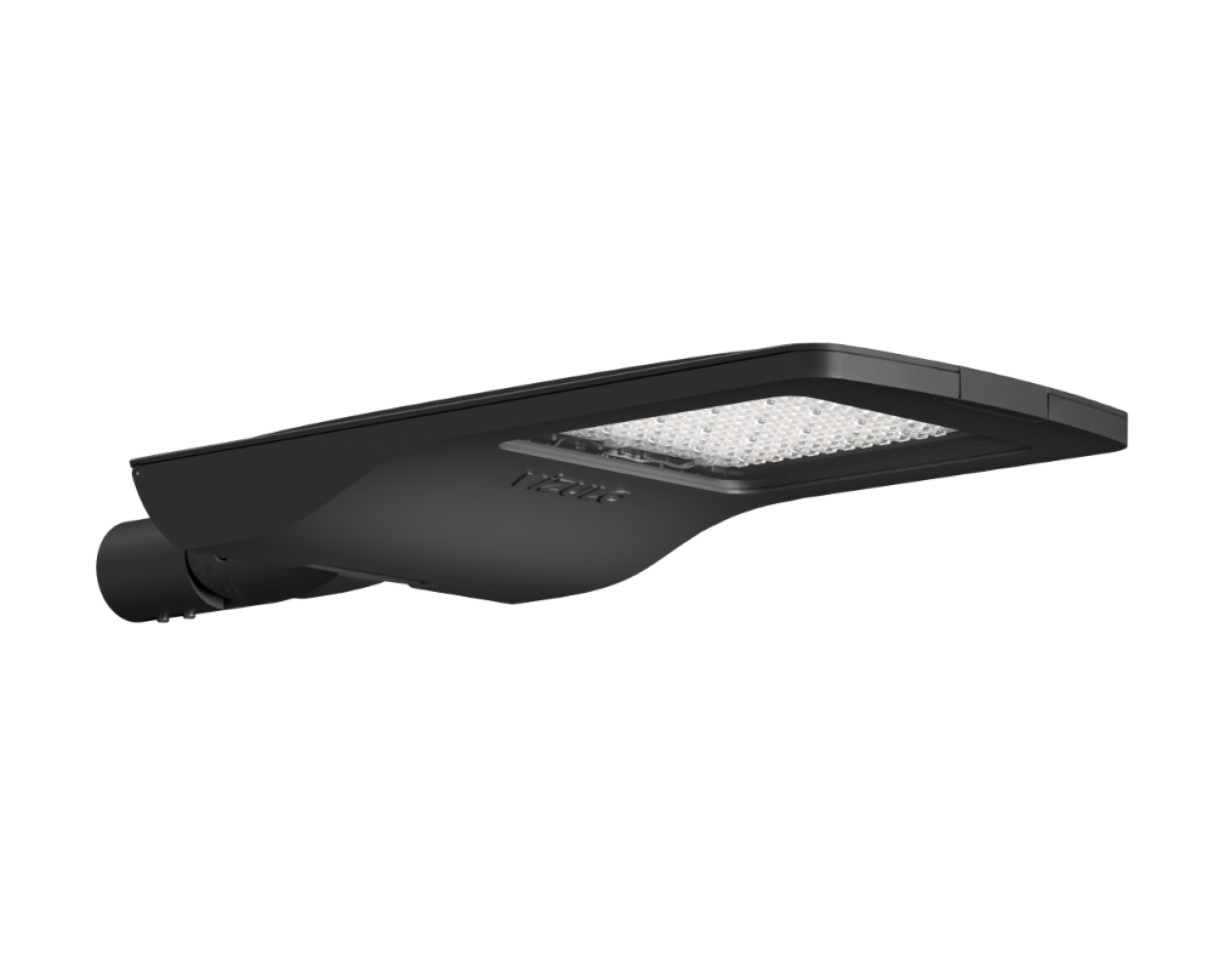

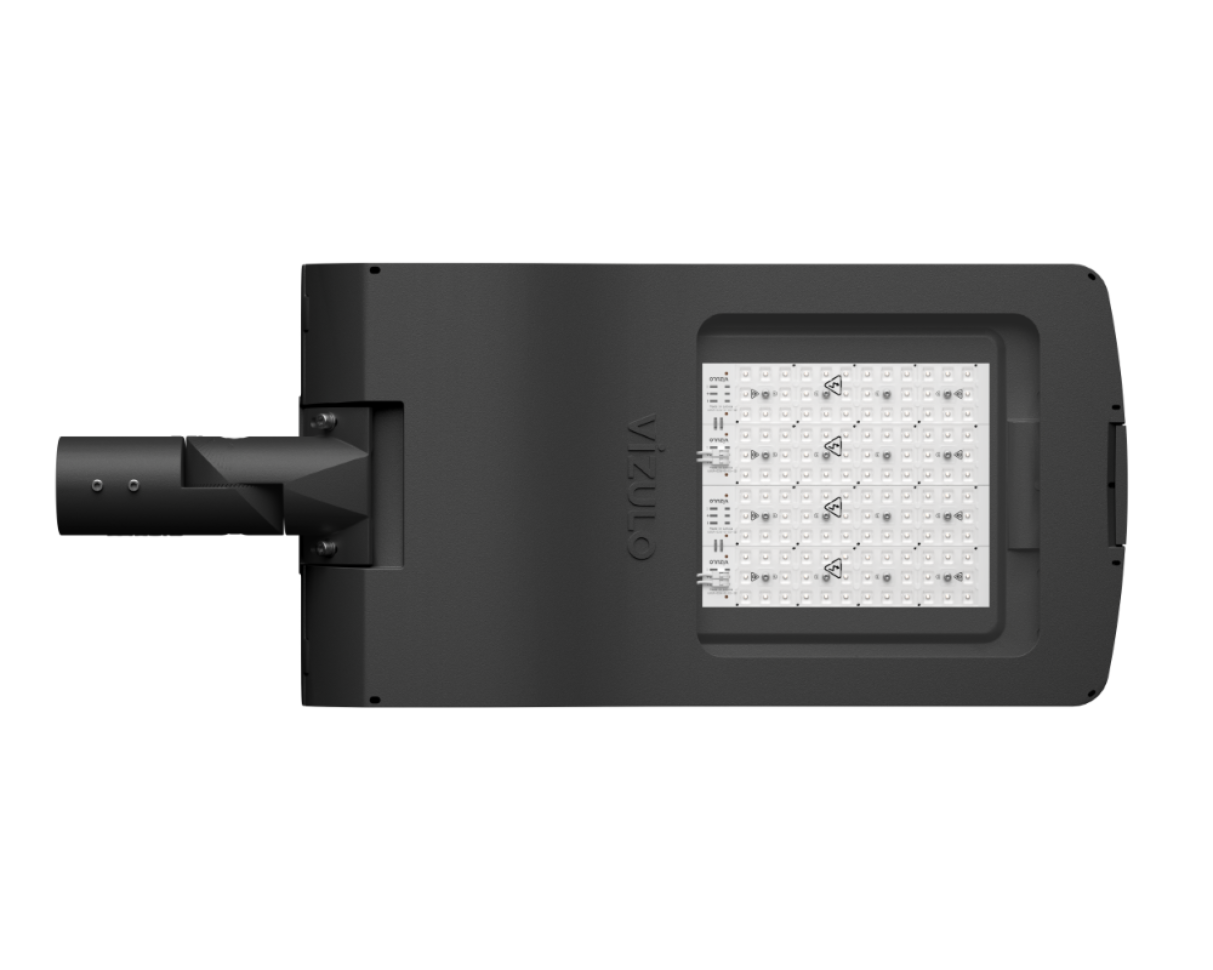

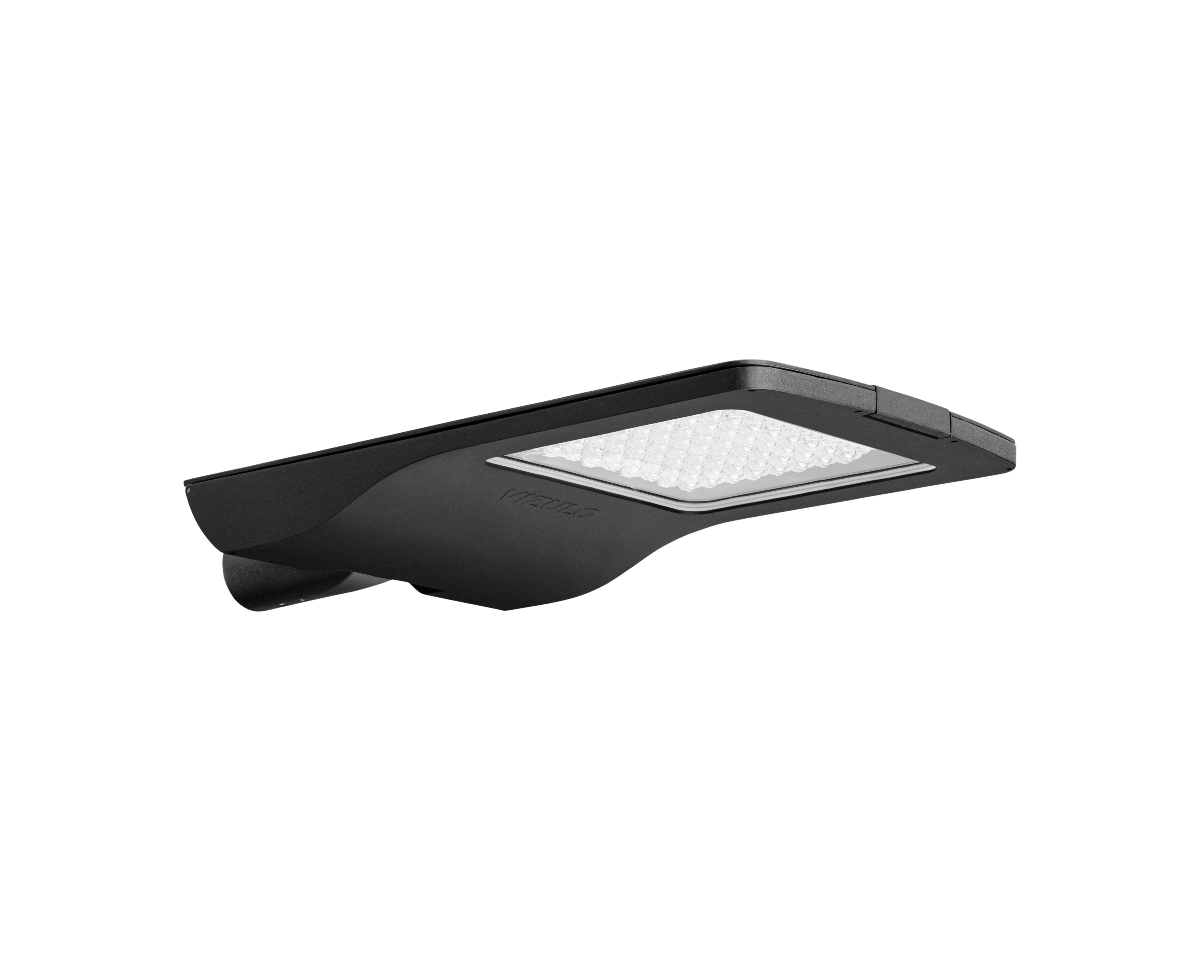

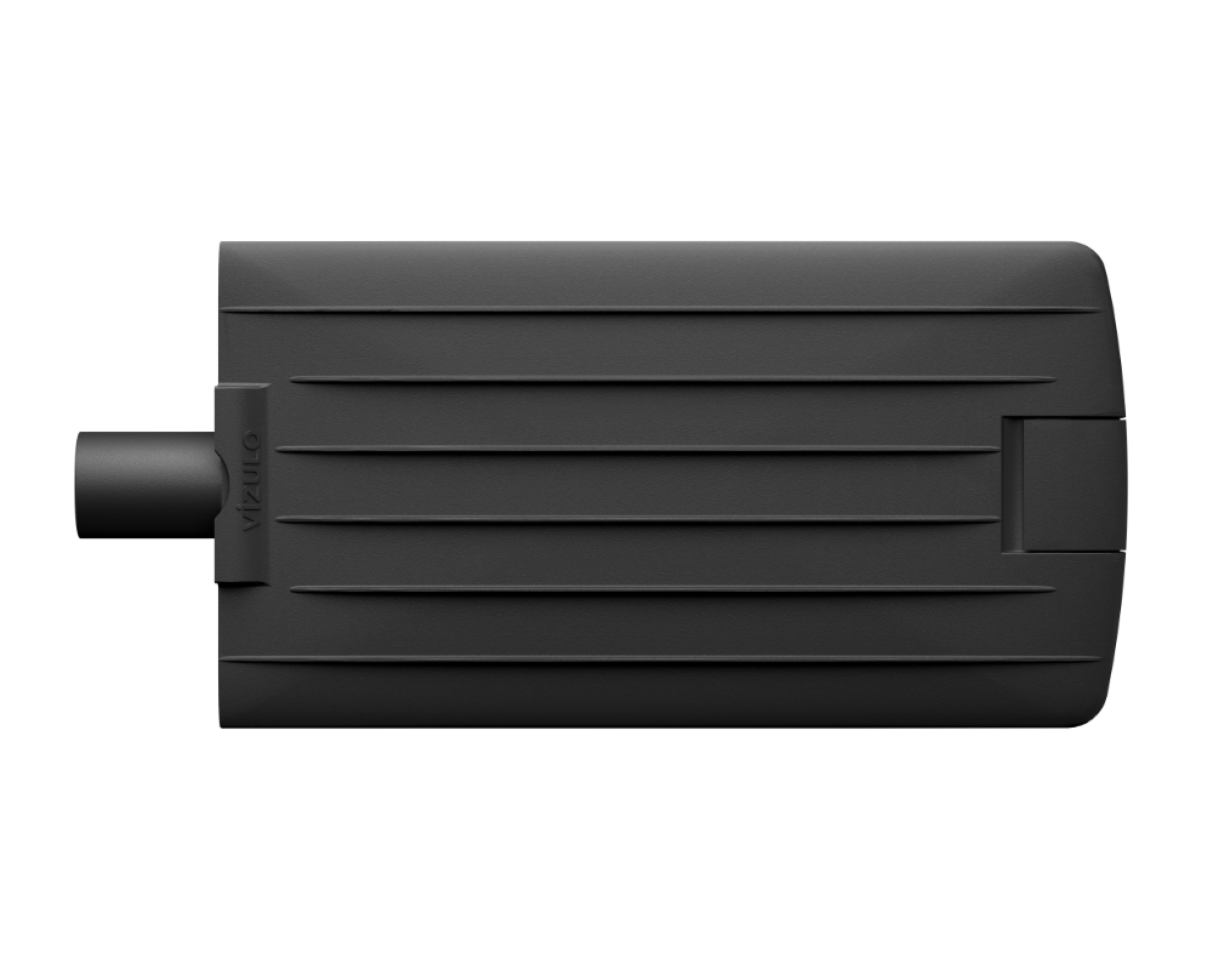

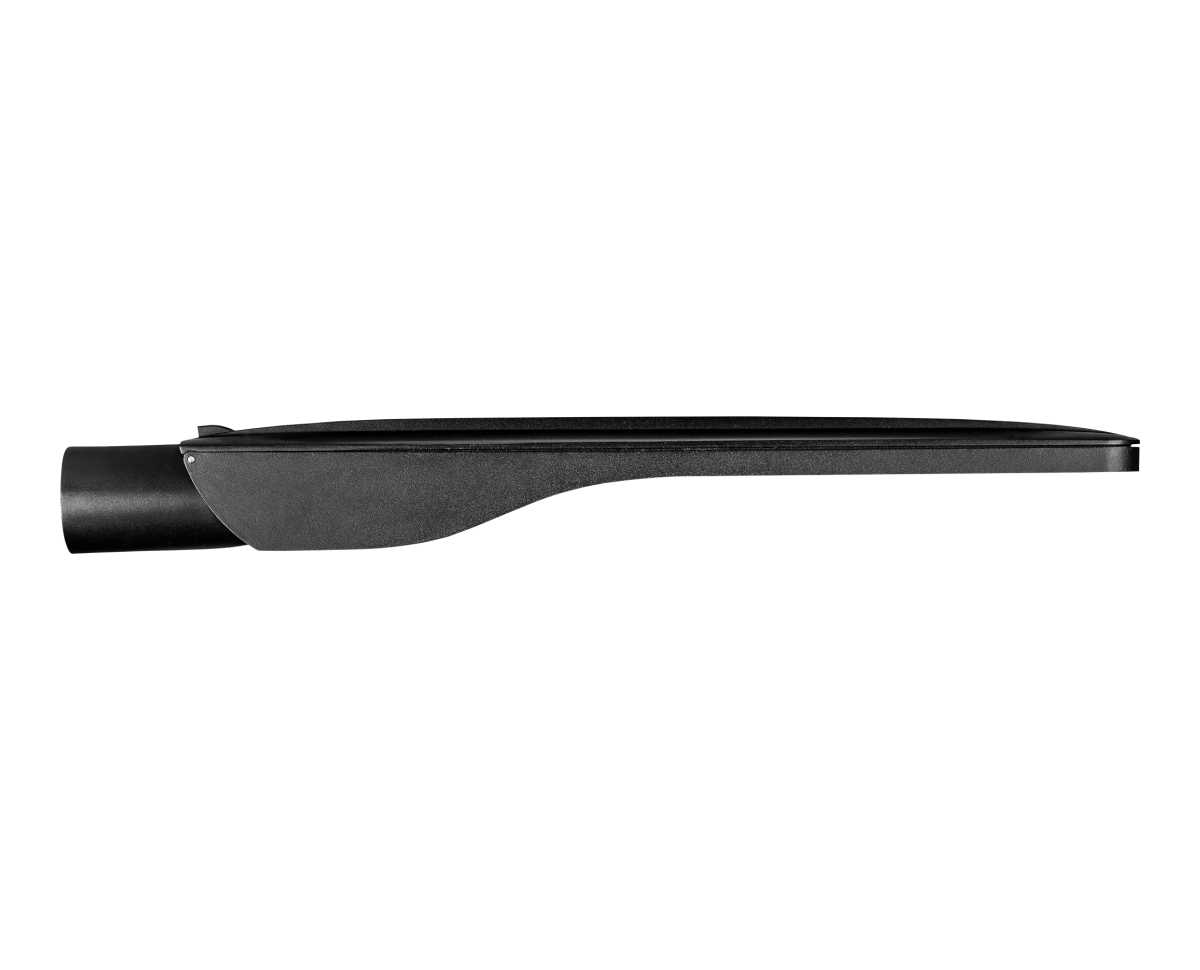

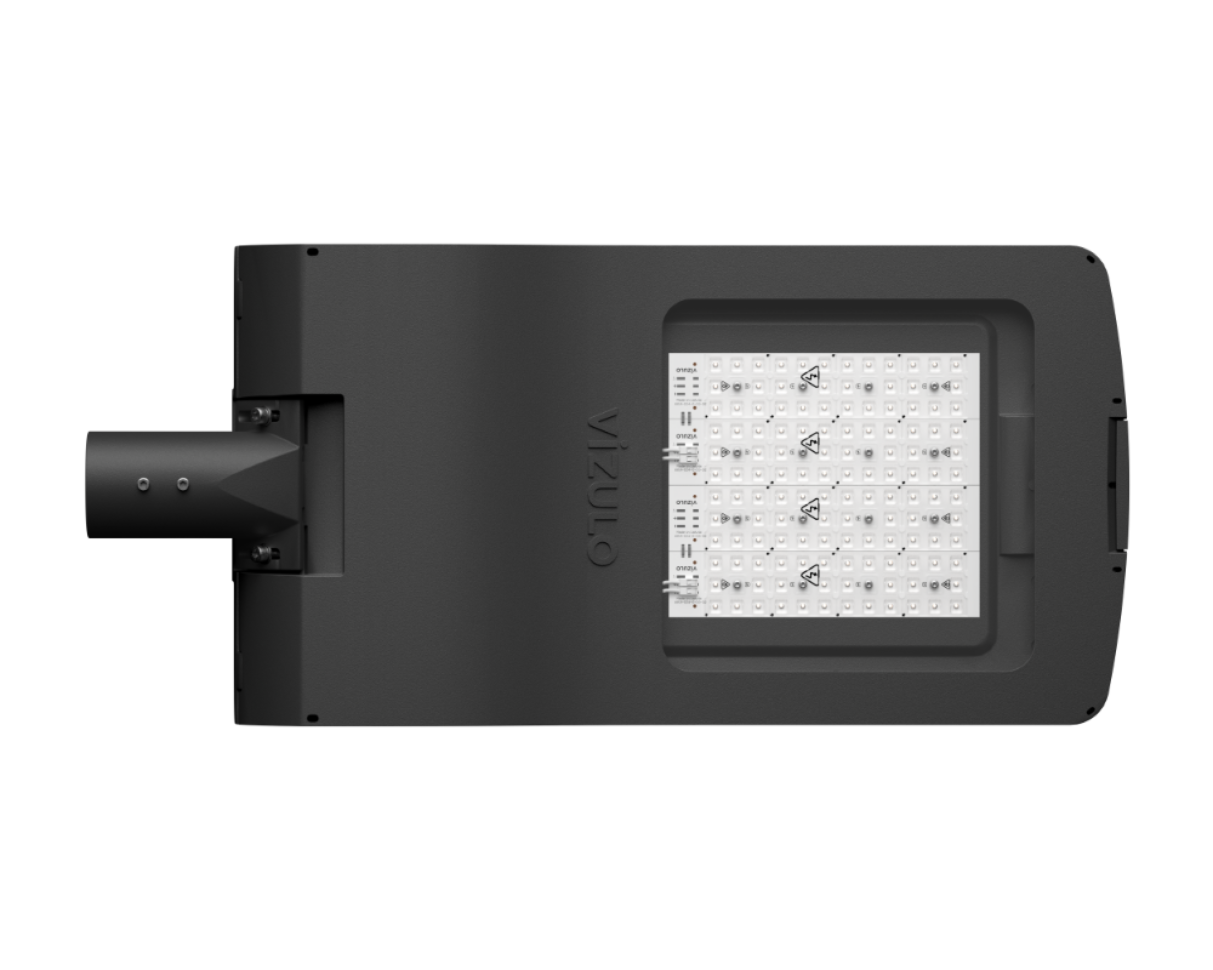

STORK
Product Overview
Stork is the award-winning backbone of our premium street luminaire product family. This unusually potent (up to 41000 lm!) luminaire is an expression of the VIZULO core values: exceptional quality, and flexibility. For almost a decade now, it has been illuminating the streets of the Netherlands, Switzerland, Iceland, and many other countries all across the globe. Our Stork can make your life so much easier. You're getting world-class vandal protection, enhanced durability, surge protection, automatic midnight dimming, and quick tool-less enclosure access with modular drivers. Rest assured, there is a right Stork for any environment: we offer limitless configuration options and a wide selection of drivers, optics, sockets (Zhaga/NEMA), reflectors, and connectors. Inspired by nature, created by engineers, approved by science – that is the premium Stork product family.
Basic colours
Specification
V
198 - 264 / 110 - 277 1
Hz
50 - 60
W
5 - 280
lm
555 - 41000 2
lm/W
108 - 161
K
2700 / 3000 / 4000 3
°C
-40 up to +50 4
CRI
>70 / >80 / >90 3
mm
801 x 370 x 98
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Initial chromaticity: MacAdam 5
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: Tool-less
Spigot: 32 - 40 mm 5 / 40 - 60 mm / 60 - 76 mm
Socket: NEMA Top / Zhaga Top and Bottom
Intelligent control: Stand-alone / Group / CMS
Sensor: Motion / Motion + Daylight / Daylight
Surge protection: 4 / 6 / 10 kV 6
Nature friendly: PC Amber / Red / 1800 K
Corrosion protection: Up to C5
Neto weight: Up to 13.8 kg
Max. wind load area, SCd: 0.047 m2
7
1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
Note! Only fixtures with CCT of 3000 K or lower are DarkSky approved!
4 Operating temperature differs depending on chosen output wattage
5 Achievable with an adapter for 40 - 60 mm spigot
6 10 kV (L-N; L/N-PE) surge protection device available on request
7 EPD registration number: S-P-04347 (link to page)
* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
