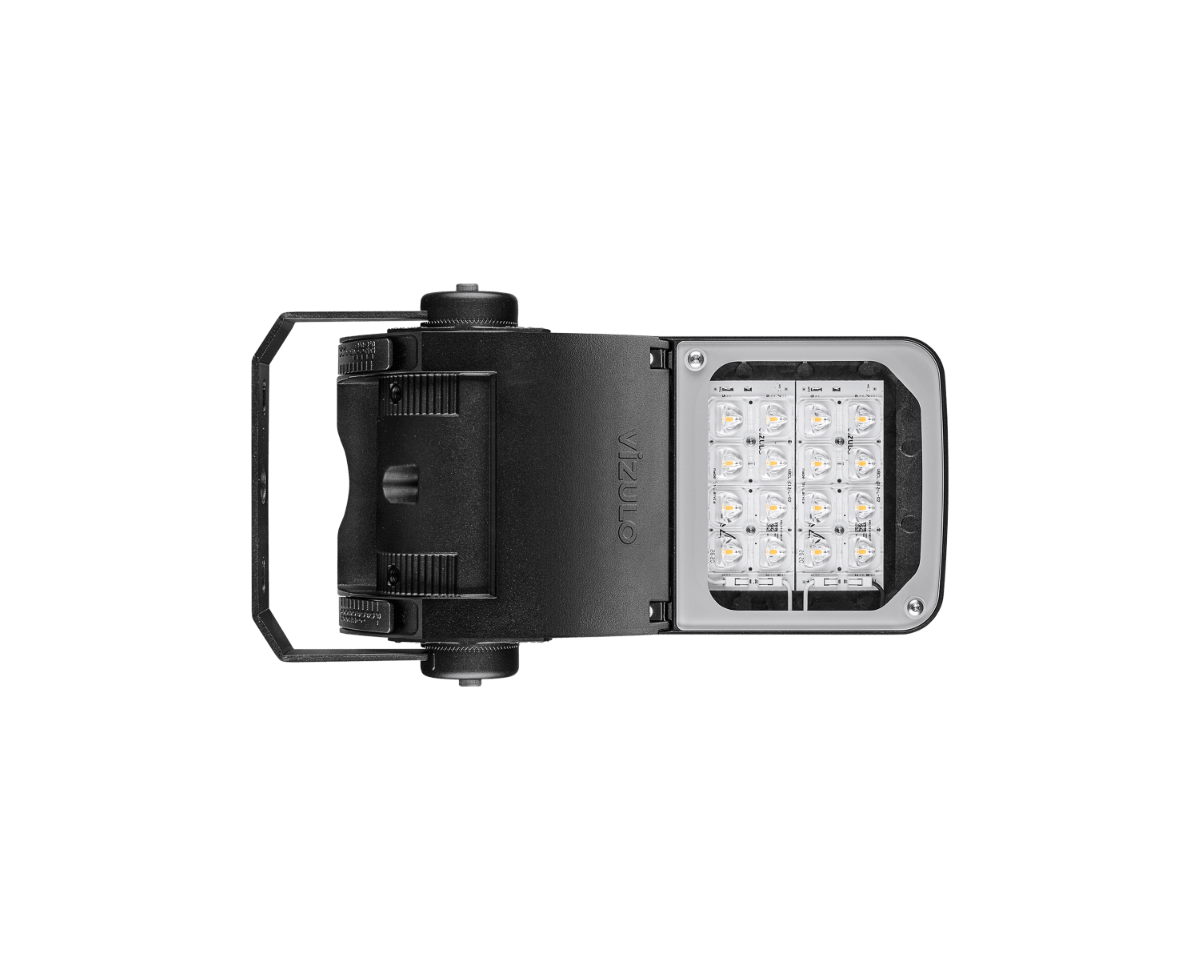

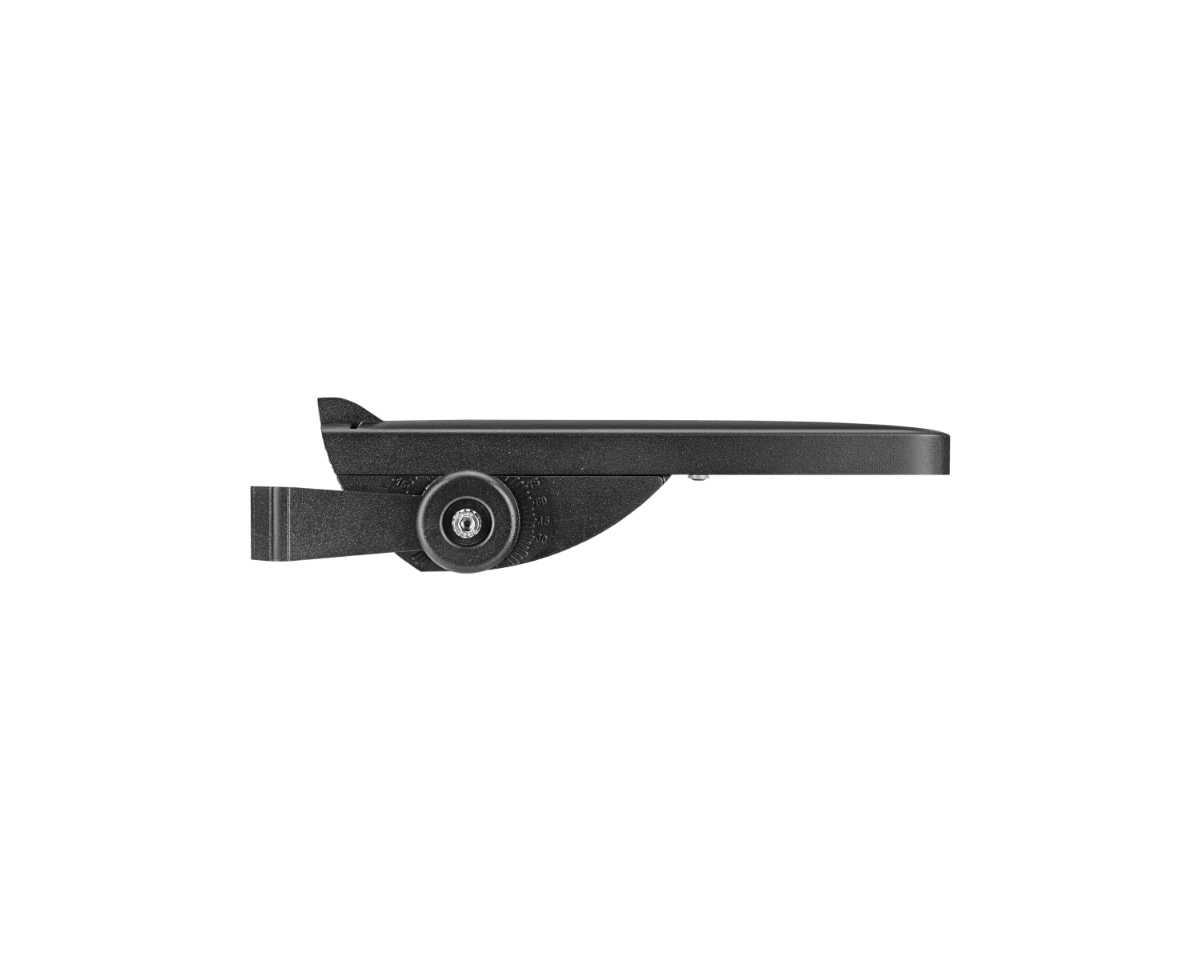

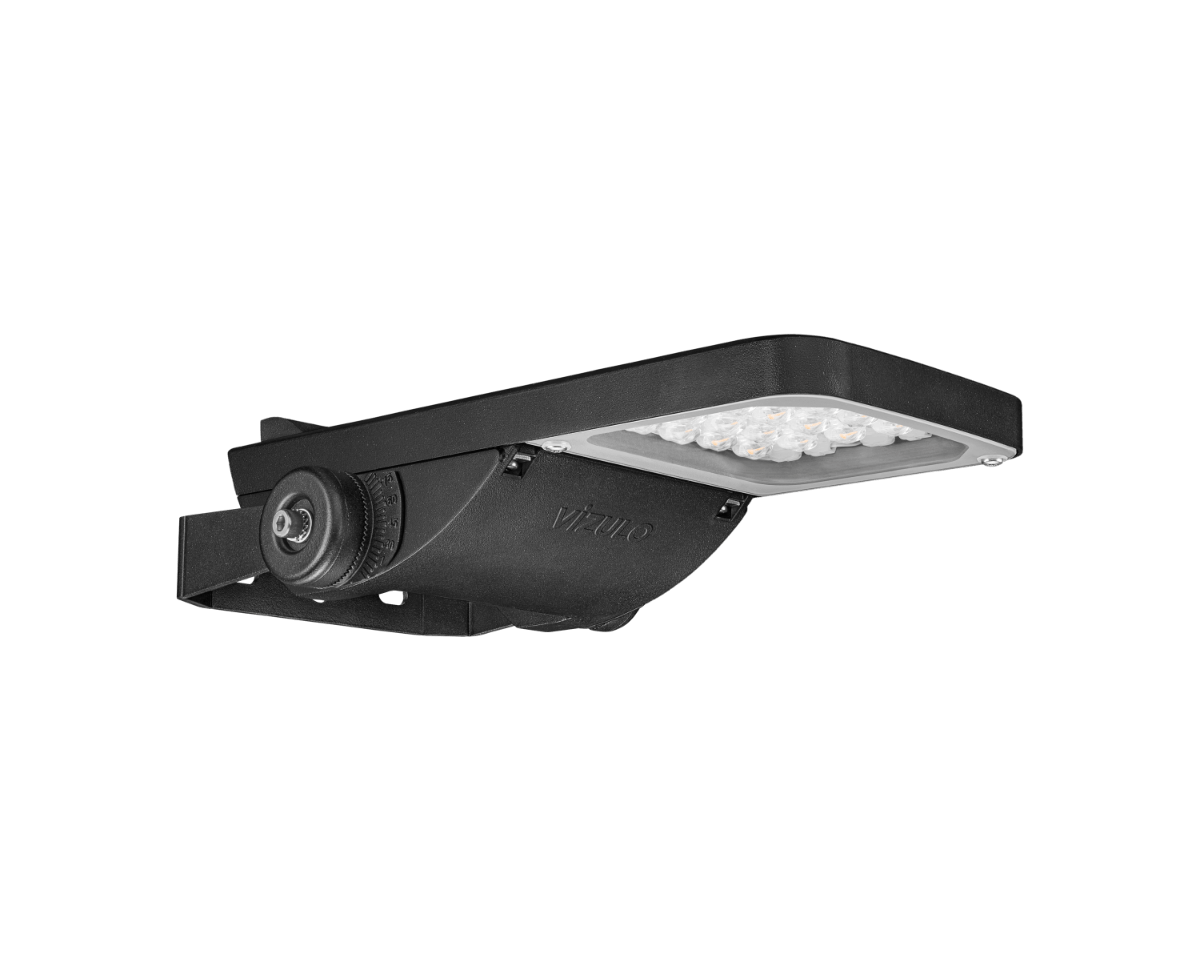

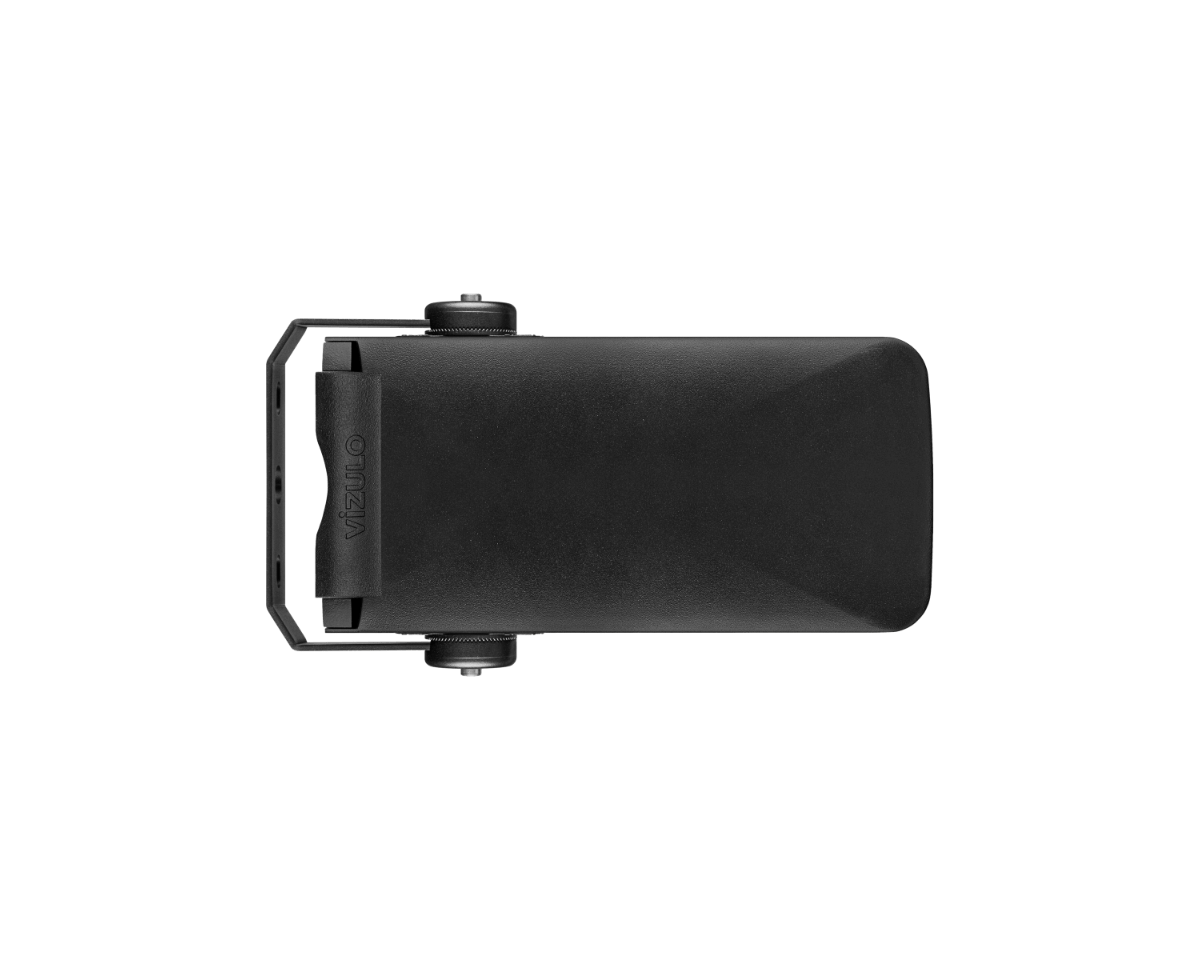

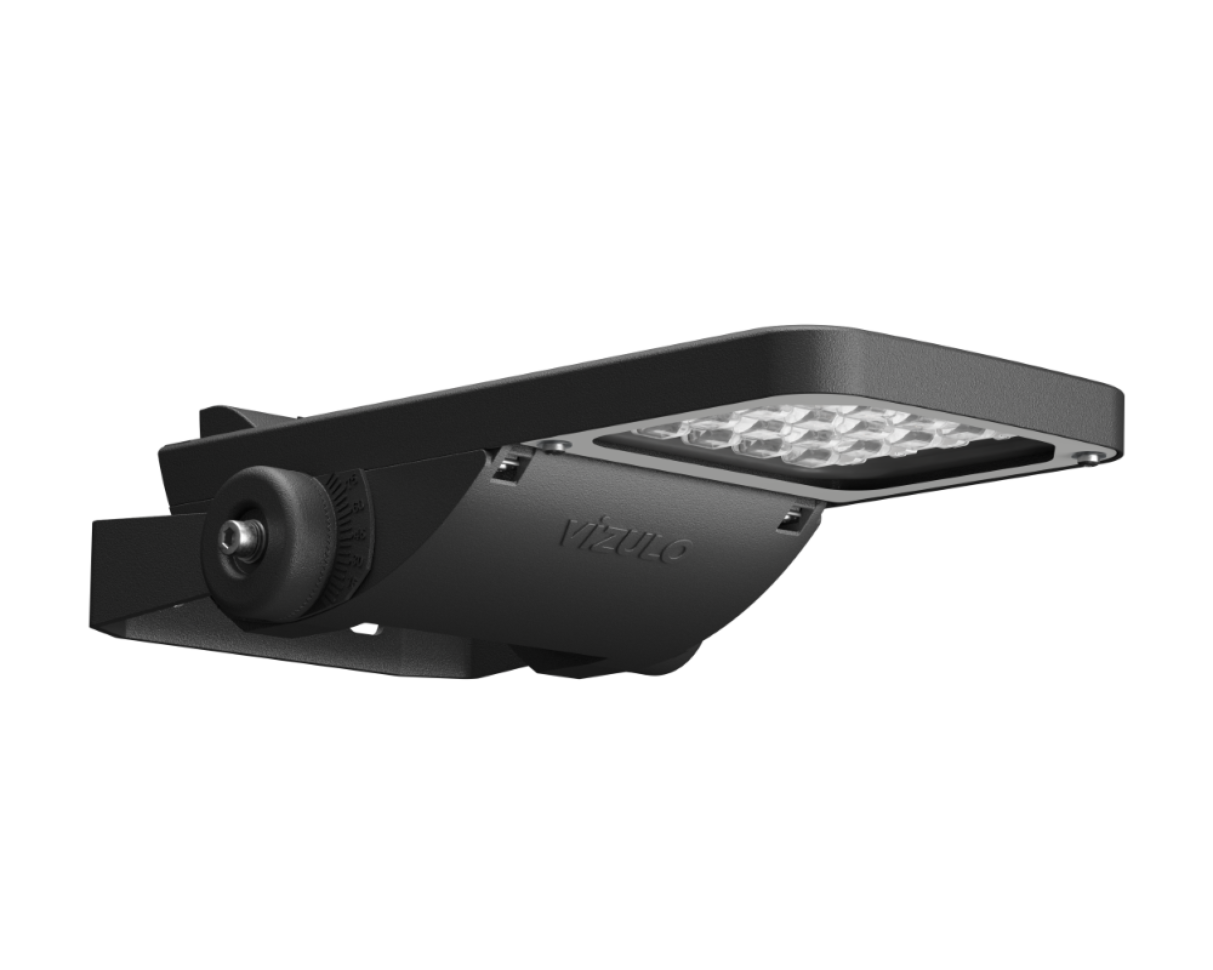

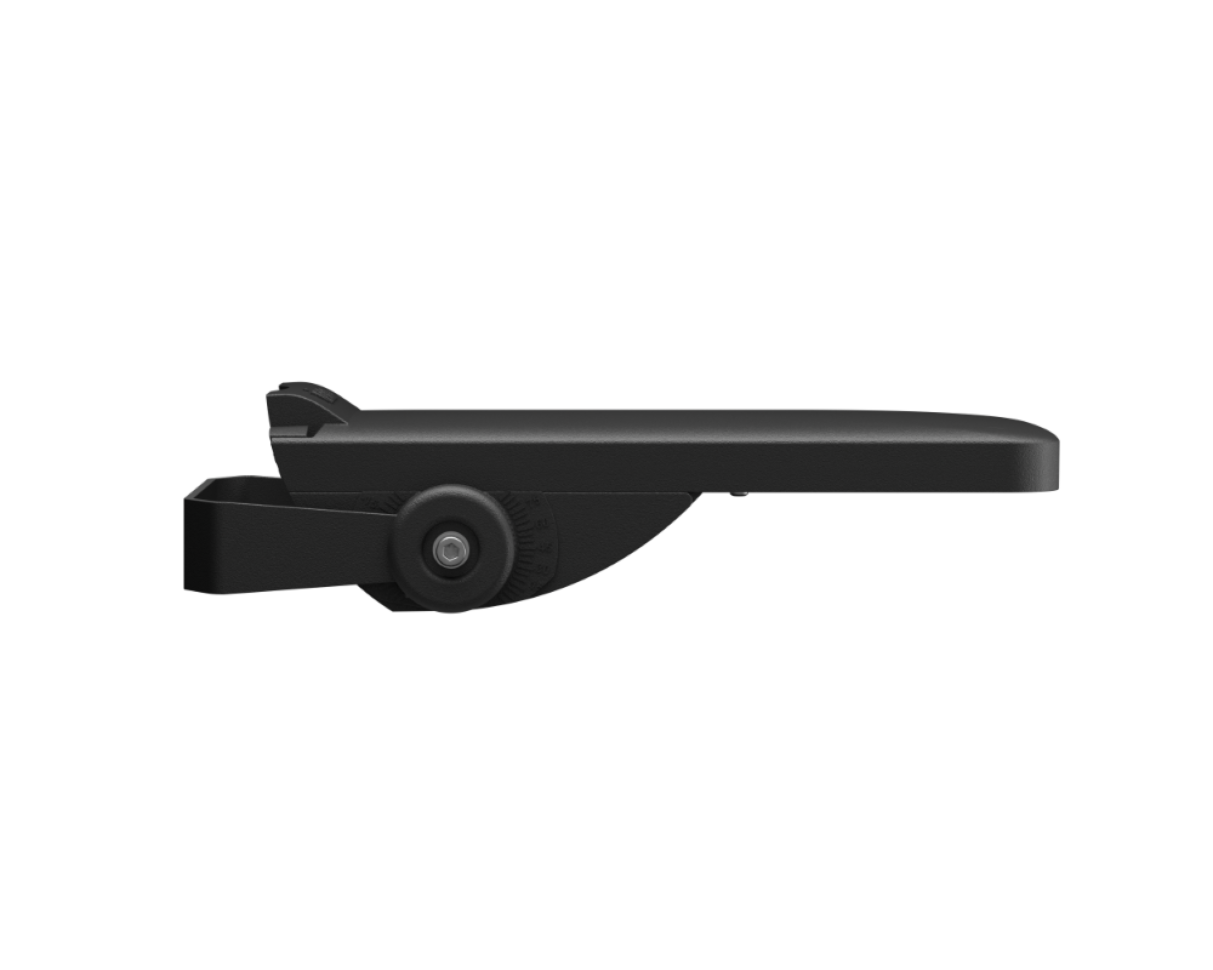

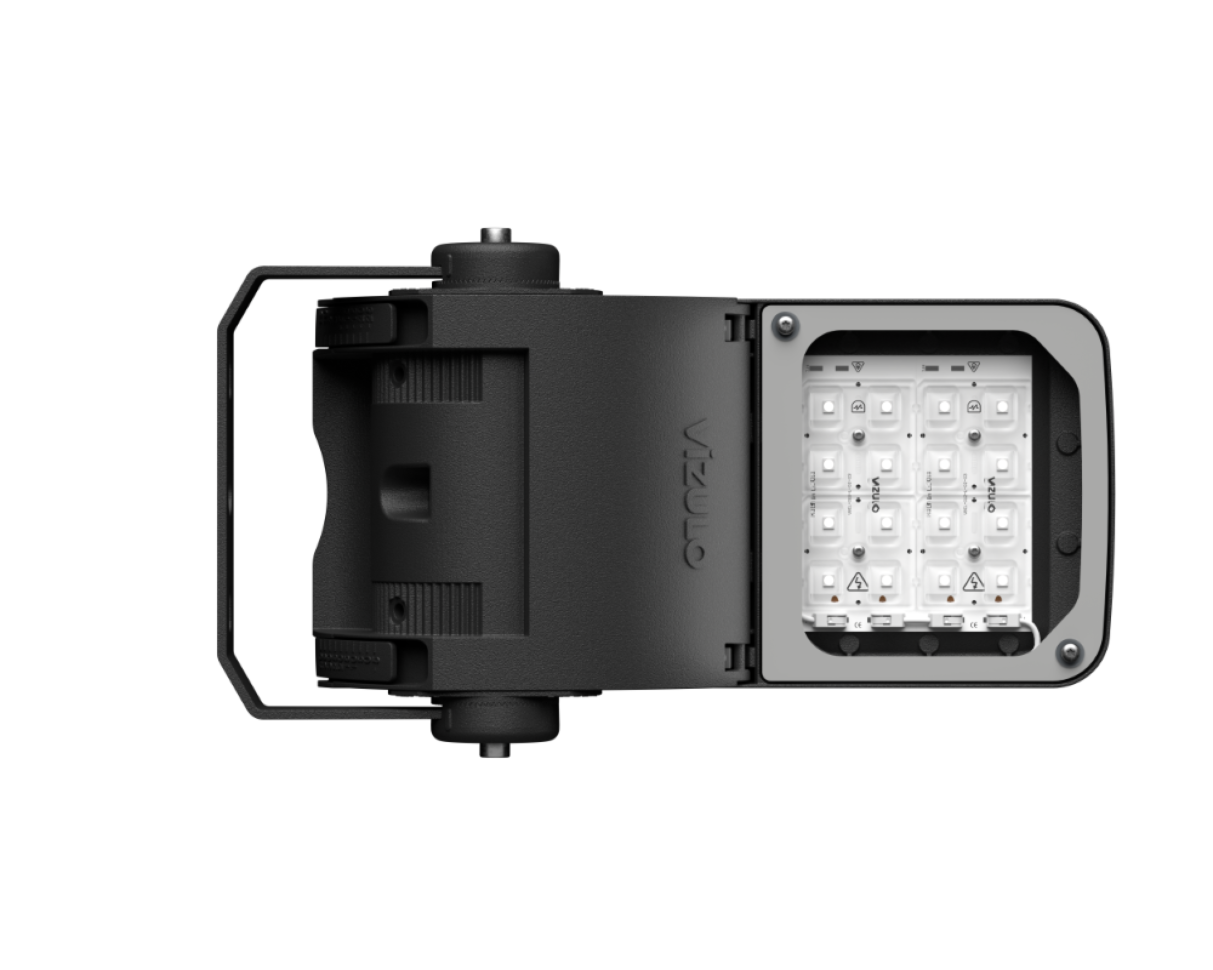

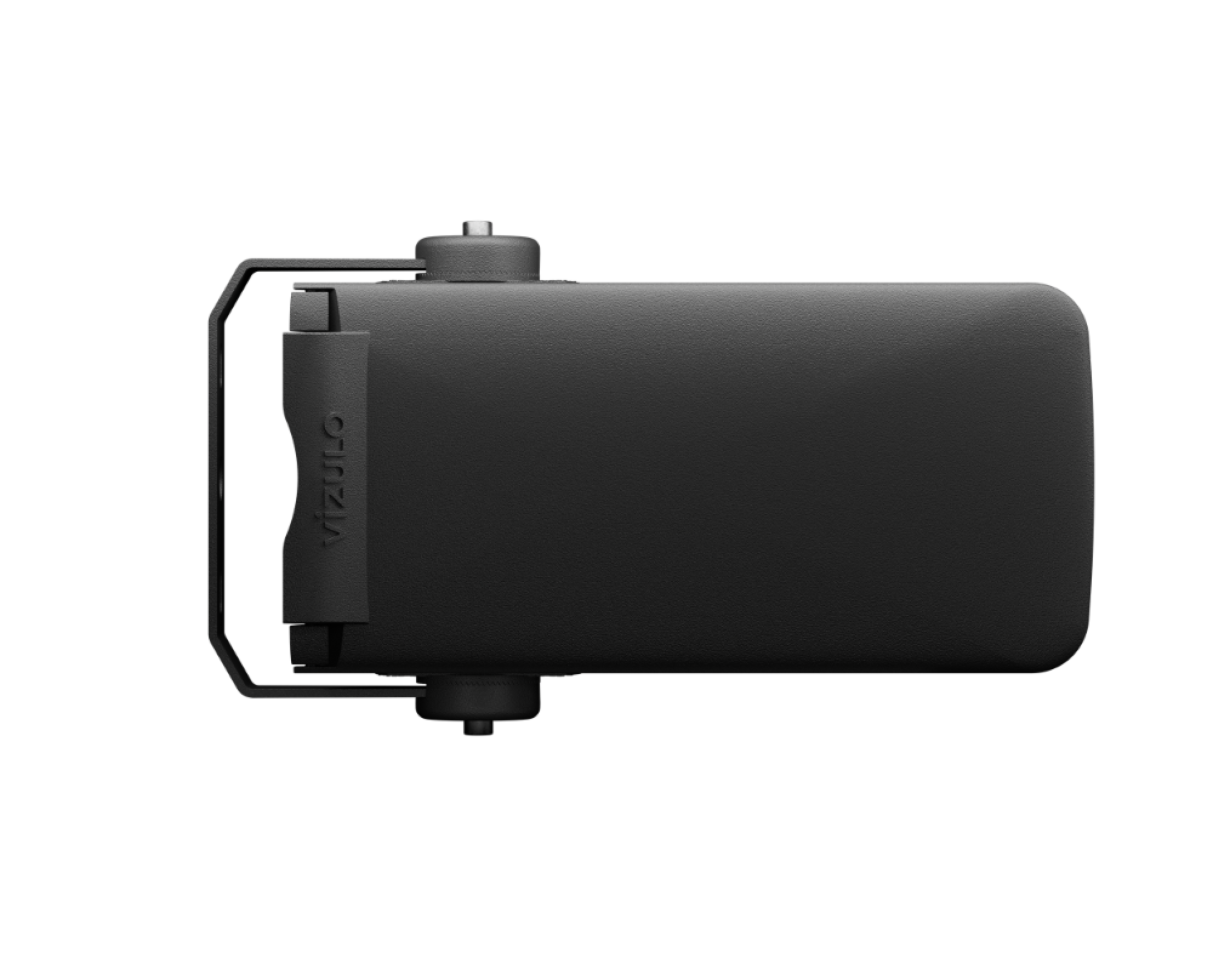

STORK LITTLE SISTER Flood Smooth

Product Overview

Like all Stork family premium products, Stork Little sister is an elegant powerhouse with a perfect balance of performance and style. Despite the compact size, it can provide extraordinary power and various configuration options, including vandal protection, automatic midnight dimming (no need for external control infrastructure!), and quick tool-less access for the most effortless maintenance ever. A safety switch disconnects the power as soon you open the enclosure. And you can choose between two form-factors: with or without heat dissipation fins. But the customization doesn’t stop there! According to your needs, we can help you choose between a variety of sockets (Zhaga/Nema), drivers, optics, reflectors, connectors, and even luminaire angle setups. Stork Little sister and the whole Stork product family are premium choices if you’re looking to light up the city streets or any outdoor spaces in style and grace.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 50

lm

430 - 7100 2

lm/W

86 - 181 3

K

2700 / 3000 / 4000 4

°C

-40 to +50

CRI

>70 / >80 / >90 4

mm

392 x 230 x 94

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Tool - less

Mounting: On bracket / wall / ceiling

Socket: NEMA Top / Zhaga Top and Bottom

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 5

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to C5

Neto weight: Up to 3.5 kg

Max. wind load area, SCd: 0.026 m2

Class I
Class II
IP66
IK10
CE
UKCA
RoHS
Zhaga zdi4
ENEC
ENEC Plus
DarkSky Approved
Synergrid approved
International EPD System 6
LED module replaceable by a professional
LED driver replaceable by a professional

1  Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2  Lumen output indicated at CRI > 70
3  This value depends from configuration and can reach even higher number when max efficient components are combined

4  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
    Note! Only fixtures with CCT of 3000 K or lower are DarkSky approved!
5  10 kV (L-N; L/N-PE) surge protection device available on request

6  EPD registration number: S-P-04349 (link to page)

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
