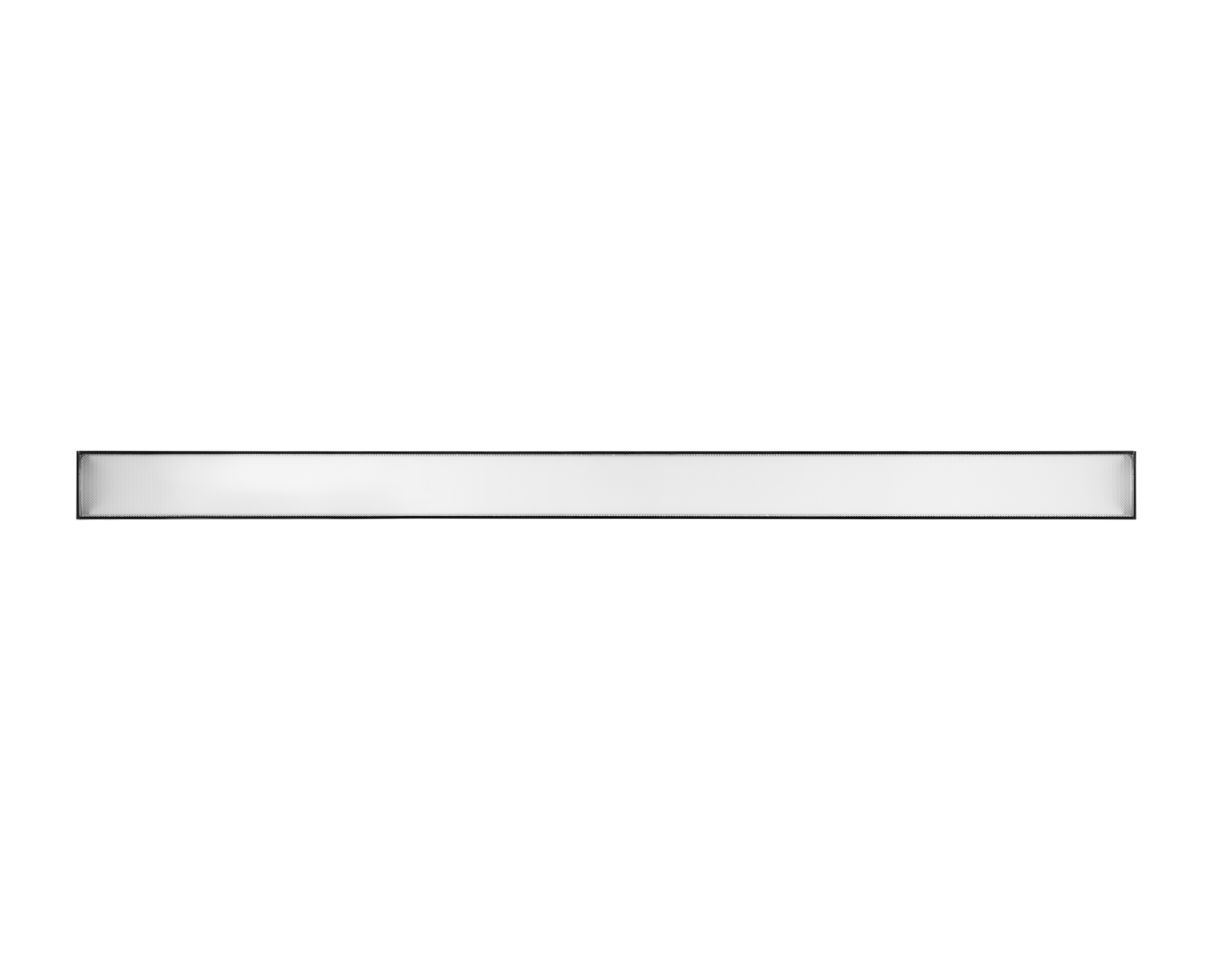

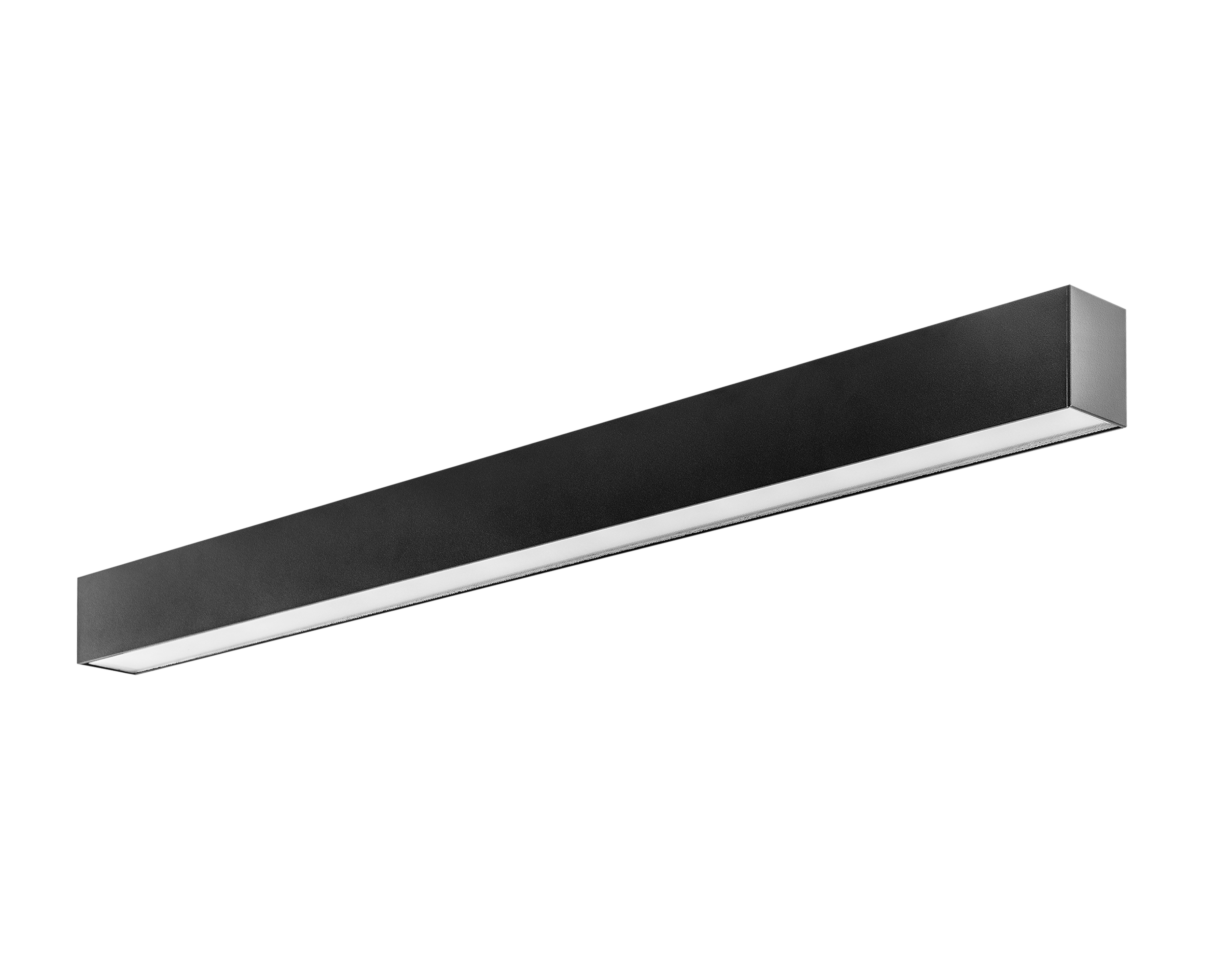

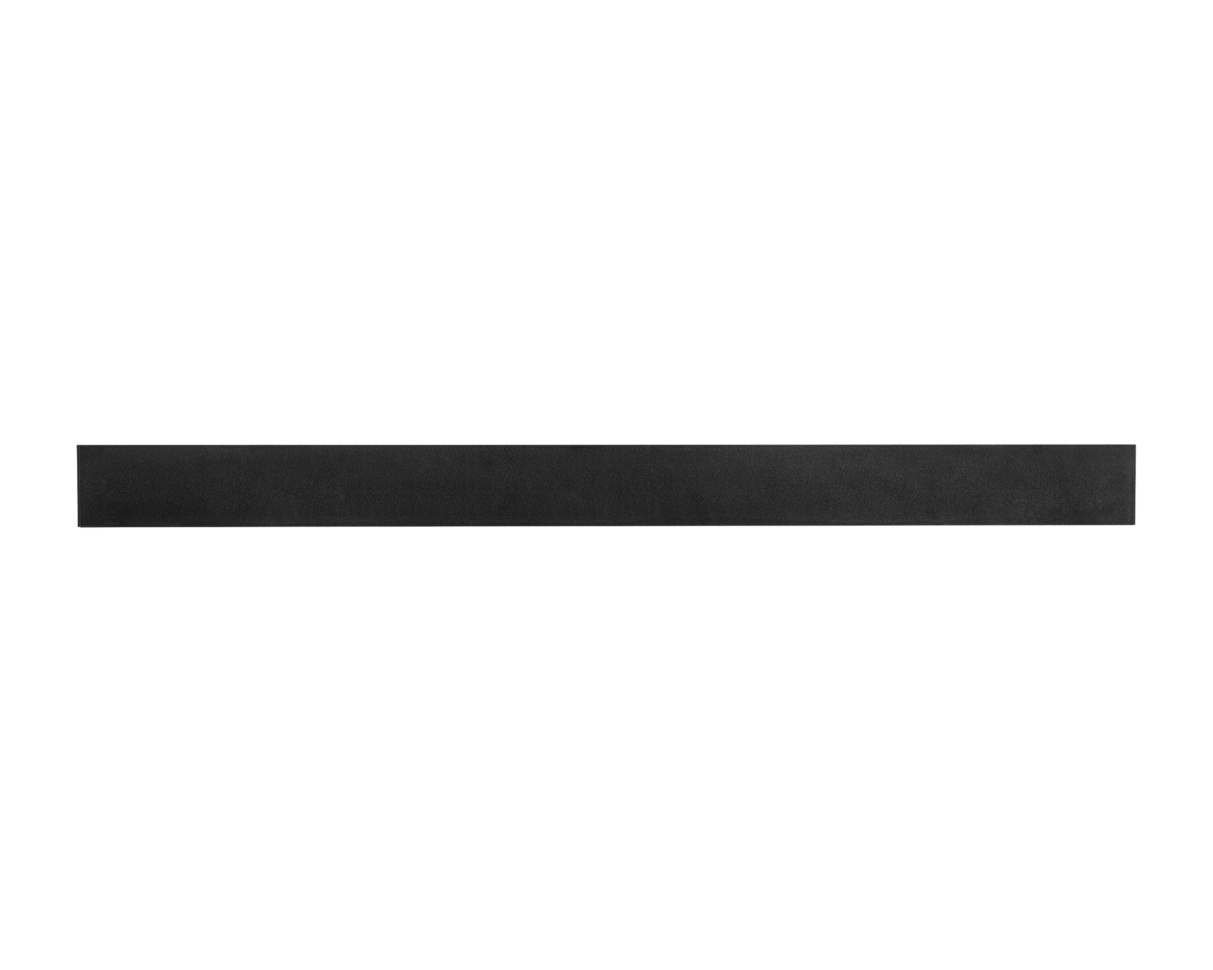

PINE Surface

Product Overview

Pine offers a minimalistic design. Mainly used as an office luminaire, it can also complement the interior of the classrooms and common areas. Pine is available as Suspended (pendant), Surface & Recessed versions, and Connect version, which can form many different shapes. There is a wide range of available lengths, four-light distribution possibilities, comprehensive range drivers, and sensors that adapt luminaire into smart solutions. Adjustable uplight function allows creating Ambient light for the project, while Human-centric, Tunable white light ensures compliance with the latest health standards. The recessed version offers quick and safe luminaire installation.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005

Specification

V

220 - 240

Hz

50 - 60

W

12 - 80

lm

Up to 17000 1

lm/W

Up to 129

K

3000 / 4000 / TW 2700 - 6500 2

°C

+10 to +35

CRI

>80 / >90 / >95 3
>90 / >95 4

Body: Aluminium profile

Dimming: DALI / 1 - 10 V / Pull dimmer / Bluetooth / Non dimmable

Sensor: PIR / PIR + Daylight

Initial chromaticity: MacAdam 3

Lifetime: 50 000 h (L90B10) at Ta = 25 °C*

               100 000 h (L80B10) at Ta = 25 °C*

Warranty: 5 years

                   2 years (emergency configuration)

Optics: Symmetrical / Asymmetrical

Downlight: Opal / Microprismatic

Mounting: Surface

Human Centric Lighting: Available

Class I
IP40
CE
UKCA
RoHS
Byggvarubedömningen Accepted
SundaHus assessment available 5
Emergency lighting
Casambi
LED module replaceable by a professional
LED driver replaceable by a professional

1  Lumen output indicated at CRI > 80
2  Other CCT available on request
3  Standard LED CRI
4  Sun-Mimic LED CRI
5  Check SundaHus web page for product assessment result

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.

Pine Connect Requirements: https://bit.ly/2USRbuM
