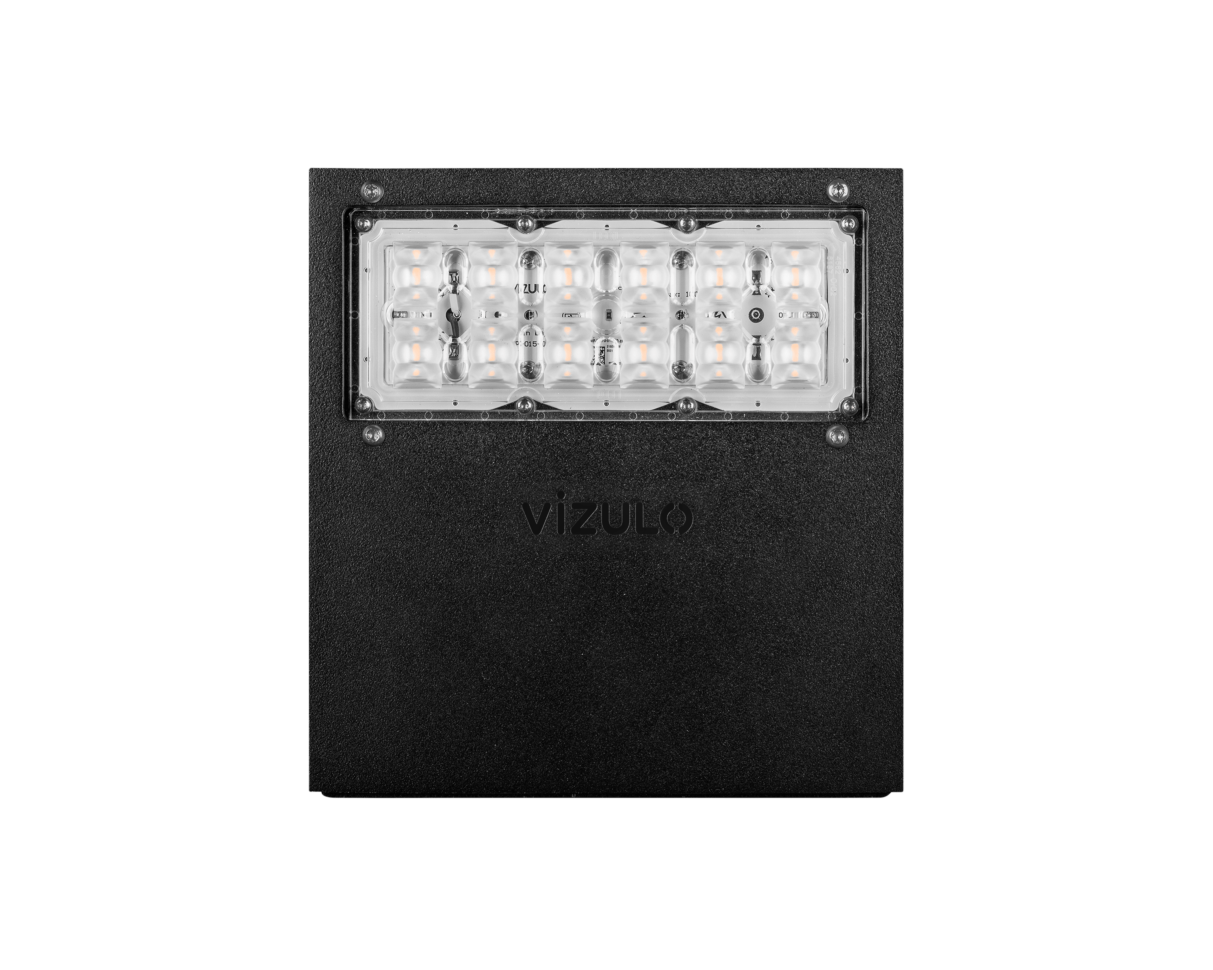

ROOK

Aperçu du produit

Design-wise, the ROOK is another team player for all your HERON setups, but it can deliver a king’s performance on its own! This powerful surface-mounted exterior light can do wonders for your outdoor areas. The ROOK can help you make your parking lots and pathways safer or accentuate the beauty of your buildings with some well-placed facade lights. Combine the ROOK with our ground-mounted HERON lights and enjoy world-class architectural design without breaking the bank.

Couleurs de base

  • Black RAL9005

Spécifications

V

220 - 240

Hz

50 - 60

W

15 - 28

lm

1845 - 3890 1

lm/W

119 - 143

K

2700 / 3000 / 4000 2

°C

-40 to +40

CRI

>80 / >90 2

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On wall

Surge protection: 4 / 6 / 10 kV 3

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to C5

Neto weight: Up to 3.3 kg

Max. wind load area, SCd: 0.015 m2

Class I
Class II
IP65
IK08
CE
UKCA
RoHS
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 70
2 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT

3 10 kV (L-N; L/N-PE) surge protection device available on request

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
