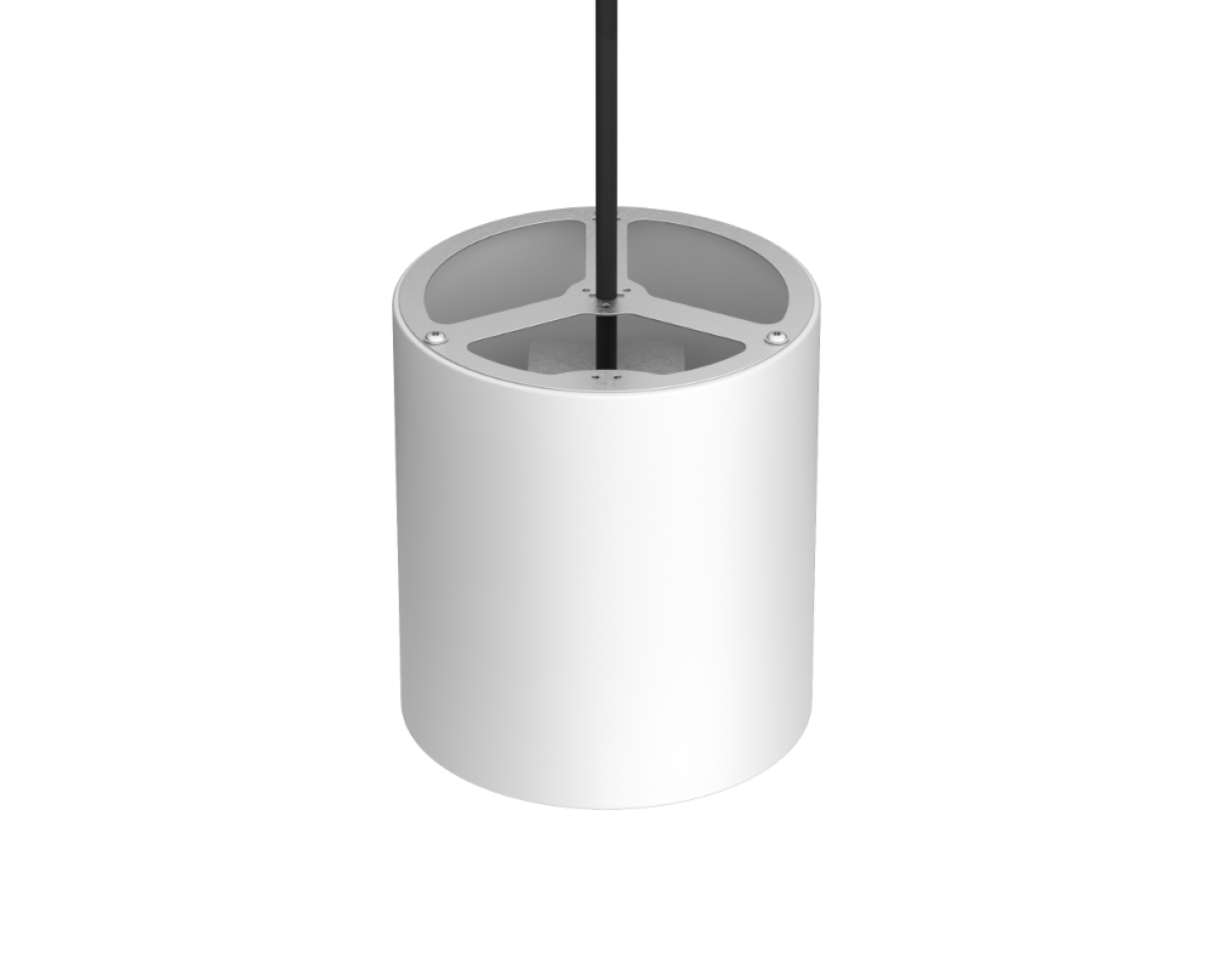

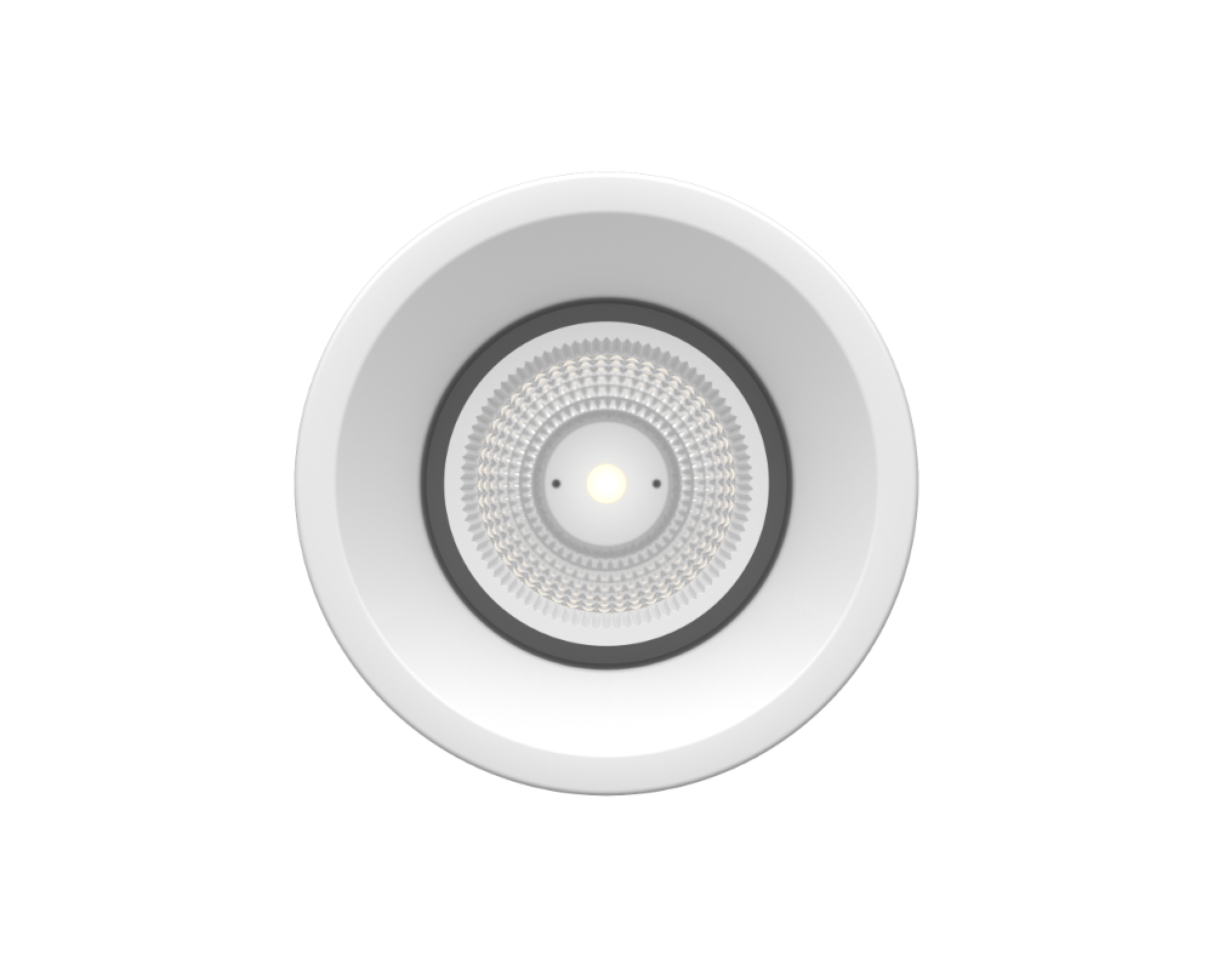

NEST Classic Pendant

Aperçu du produit

Nest luminaires are all about creating a mood. Nest creates this special feeling and beautiful light, whether recessed, tiltable, surface, or suspended. Classic, downlight luminaire which is well dedicated for use in a wide variety of premises and projects: offices, classrooms, common areas as showrooms or administrative premises, as well as auxiliary rooms such as corridors, dressing rooms, bathrooms, toilets, utility rooms, as an emergency luminaire, etc.

Couleurs de base

  • Silver RAL9006
  • Black RAL9005
  • White RAL9016

Spécifications

Body:   Aluminium

Dimming:   DALI / 1-10 V / Bluetooth / Non dimmable

Initial chromaticity:   MacAdam 3

Lifetime:   100 000 h (L80B10) at Ta = 25 °C*

                    50 000 h (L90B10) at Ta = 25 °C*

Warranty:   5 years

Mounting:   Pendant

Cover:   No cover / Clear glass / Matt glass

Human Centric Lighting:   Available

Distribution angle:   55°

Class I
IP20 2
IP40 3
CE
UKCA
RoHS
Byggvarubedömningen Accepted
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 80
2 Top of luminaire
3 Optical part of luminaire

* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models and will reach 100 000 h L90/B10. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.

Nest Requirements: https://bit.ly/3frR8j9

Télécharger les documents

Caractéristiques

Électronique

Constant lumen output (CLO)

Cables

DALI

Lumière

Constant lumen output (CLO)

LED luminous flux decreases over its lifetime. In order to compensate the lost lumens it is possible to use CLO (constant lumen output) function. It increases the LED current over lifetime, providing the same light level for all operating hours. Read more
