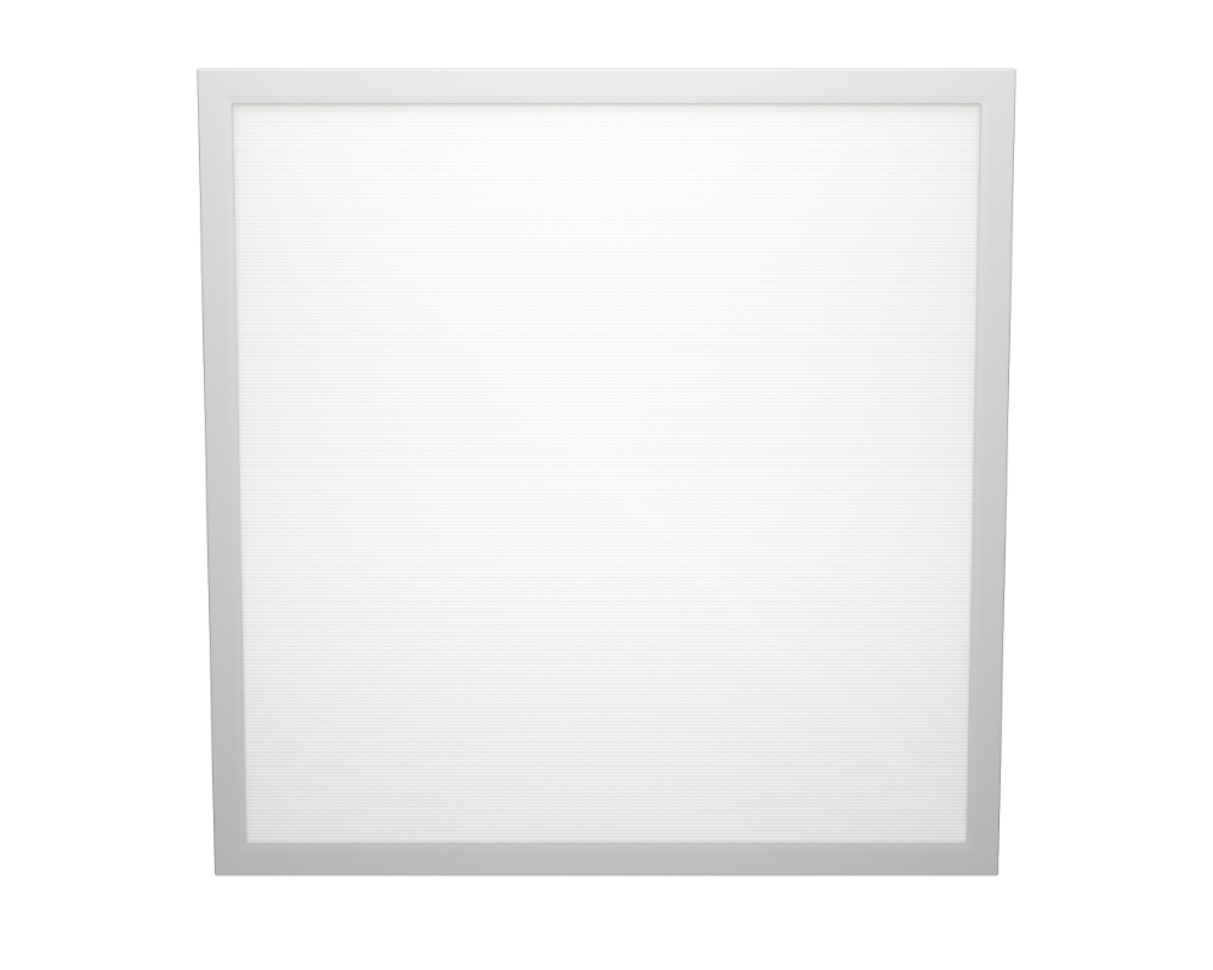

LEAF Slim

Aperçu du produit

LEAF Slim

Couleurs de base

  • White RAL9016

Spécifications

V

220 - 240

Hz

50 - 60

W

15 - 45

lm

1875 - 5157 1

lm/W

Up to 125

K

3000 / 4000 2

°C

+10 to +40

CRI

>80 / >90 / >95 3
>90 / >95 4

mm

595 x 595 x 12.5

Body: Aluminium profile

Dimming: DALI / 1 - 10 V / Bluetooth / Non dimmable

Sensor: Microwave

Initial chromaticity:  MacAdam 3

Lifetime: 100 000 h (L80B10) at Ta = 25 °C*

                 50 000 h (L90B10) at Ta = 25 °C*

Warranty: 5 years

                  2 years (emergency configuration)

Cover: Microprismatic / Opal

Mounting: Recessed / Surface / Pendant

Human centric lighting: Available

Neto weight: Up to 2.9 kg

Class I
IP20
IP40
CE
UKCA
RoHS
Byggvarubedömningen Accepted
SundaHus assessment available 5
Emergency lighting
Casambi
LED module replaceable by a professional
LED driver replaceable by a professional

1  Lumen output indicated at CRI > 80
2  1800 / 2200 / 2700 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
3  Standard LED CRI
4  Sun-Mimic LED CRI
5
Check SundaHus web page for product assessment results

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Total lumen output for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.Lumen output indicated at 4000 K.
