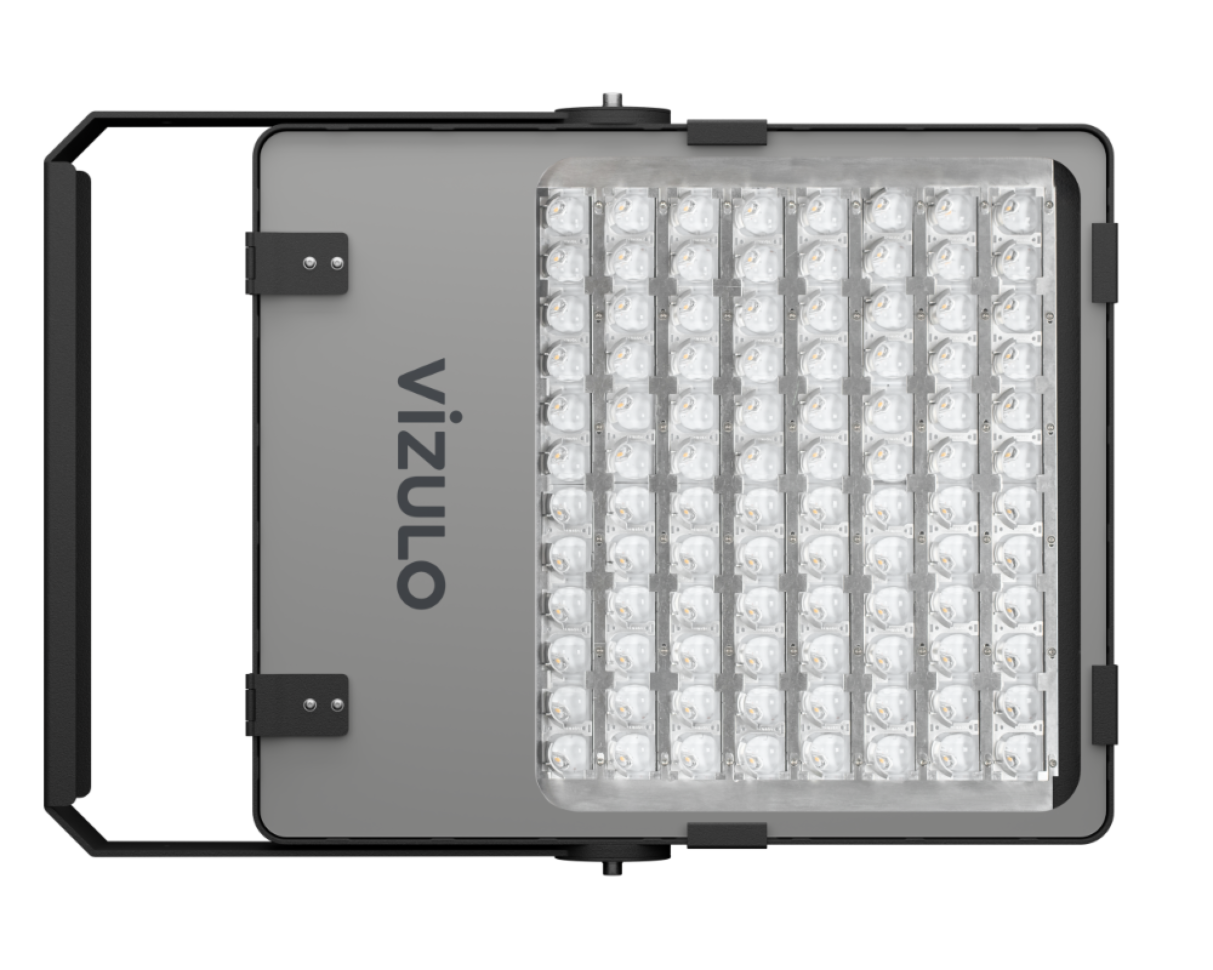

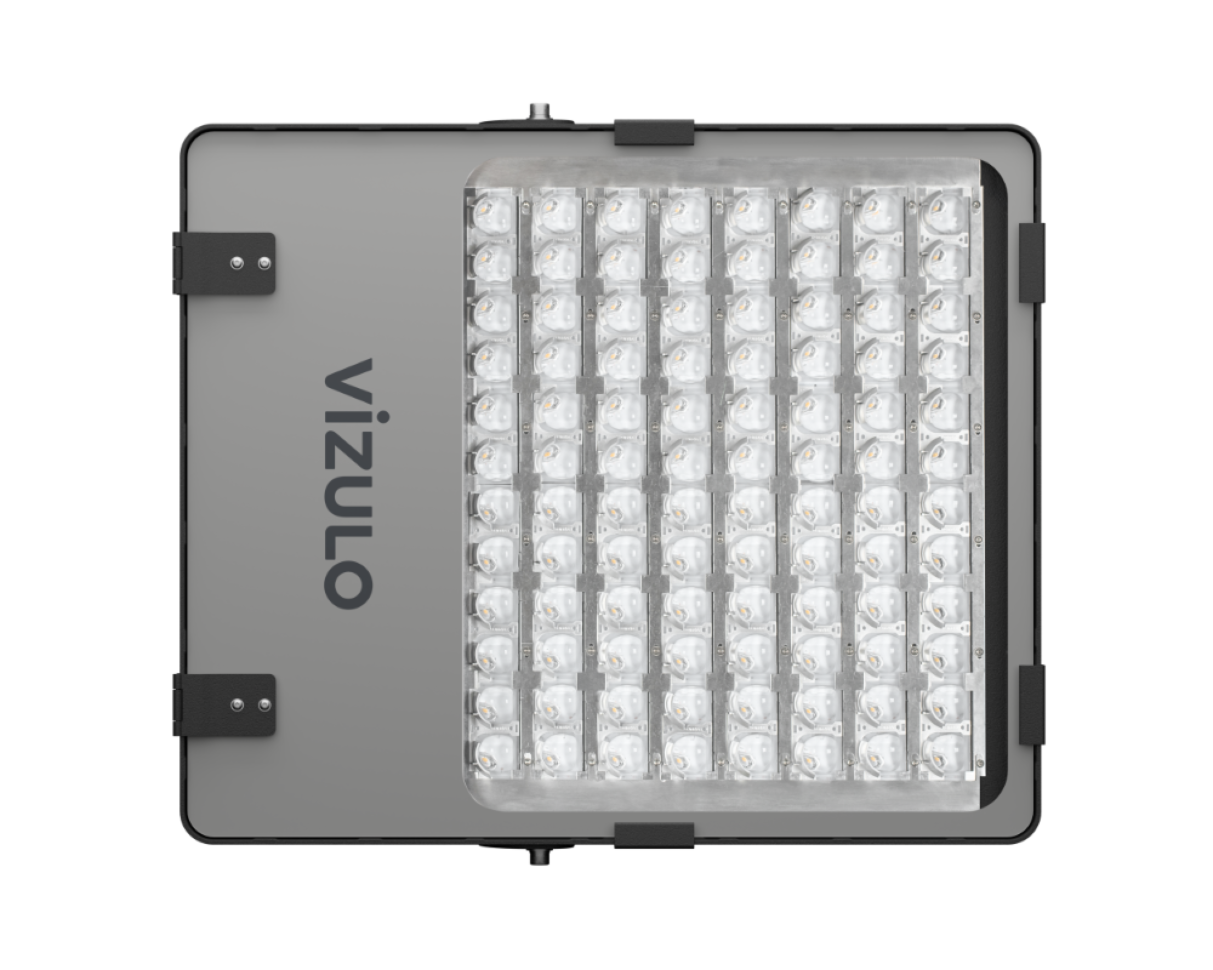

MUSTANG
Product Overview
Free, wild, powerful, and beautiful. It all characterizes Mustang. High-quality floodlight. It has power up to 700 W and light output up to 103 320 lm to lighten territories, sports fields, airports, seaports, railways infrastructure, industrial plants, and parking areas. Tool-less opening ensures quick and easy installation and maintenance. A wide range of optics, drivers, connectors allows adapting luminaires to specific project needs.
Basic colours
Specification
V
198 - 264 / 110 - 277 1
Hz
50 - 60
W
50 - 700
lm
29535 - 103320 2
lm/W
119 - 165
K
2700 / 3000 / 4000 3
°C
-40 to +50
CRI
>70 / >80 / >90 3
in
789 x 711 x 216
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: On bracket / wall / ceiling
Socket: NEMA Top / Zhaga Top
Intelligent control: Stand-alone / Group / CMS
Sensor: Daylight
Surge protection: 10 kV
Corrosion protection: Up to C5
Neto weight: Up to 31 kg | standard version
Up to 41 kg | floodlight version
Max. wind load area, SCd: 0.083 m2
4
4
5
6
7
6
1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 IK08 refers to version with glass cover, IK09 refers to version with housing
5 Ball proof: tested according to DIN 57710-13
6 Coming soon
7 EPD registration number: S-P-05890 (link to page)
* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
Download Documents
Features
Electronics
Controls & Connectivity
Light
Optics
Optical
Controllers and sensors for smart systems
Terminal blocks and plugs
Cables
Sockets and caps for smart systems
