ICICLE Connect
Product Overview

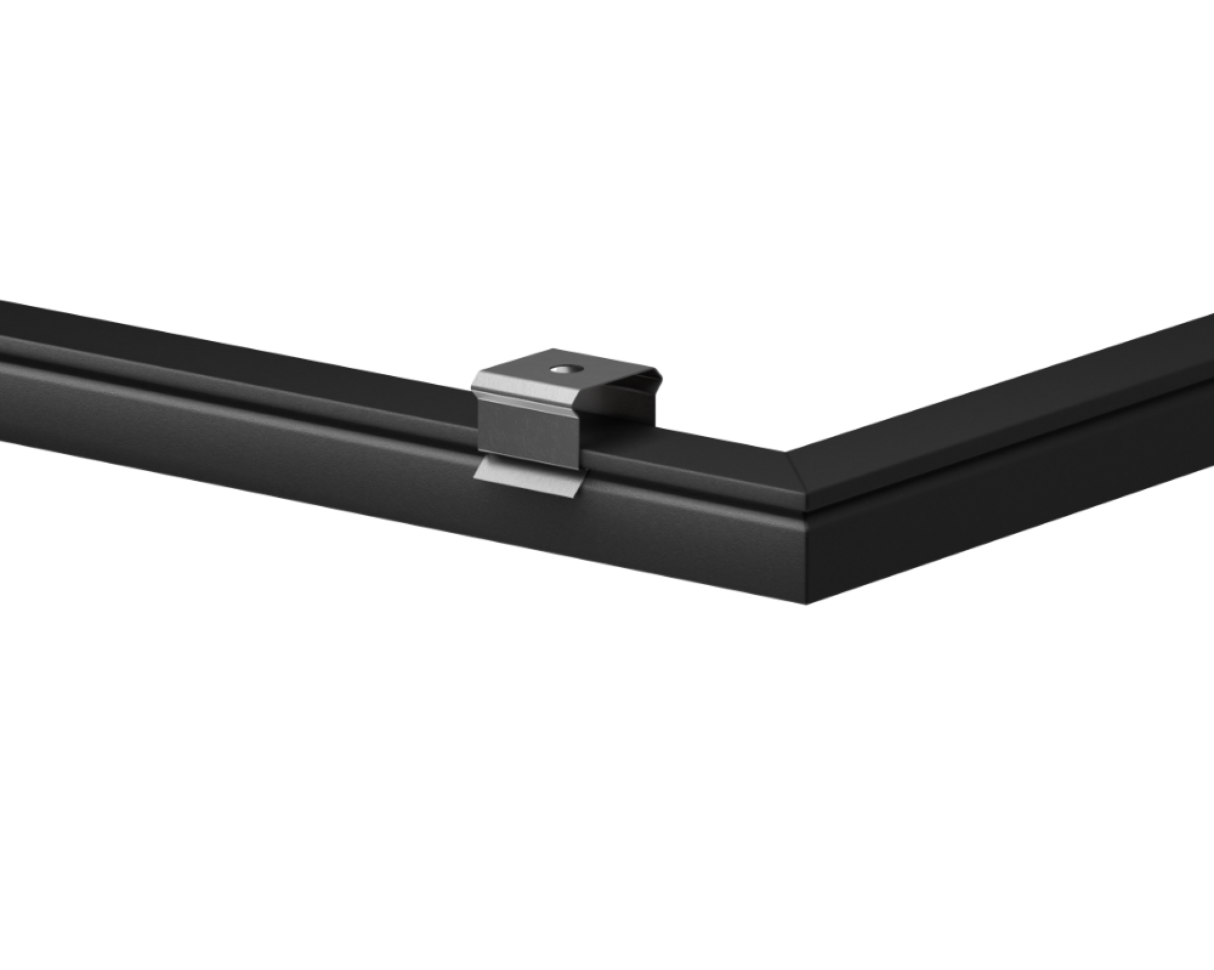

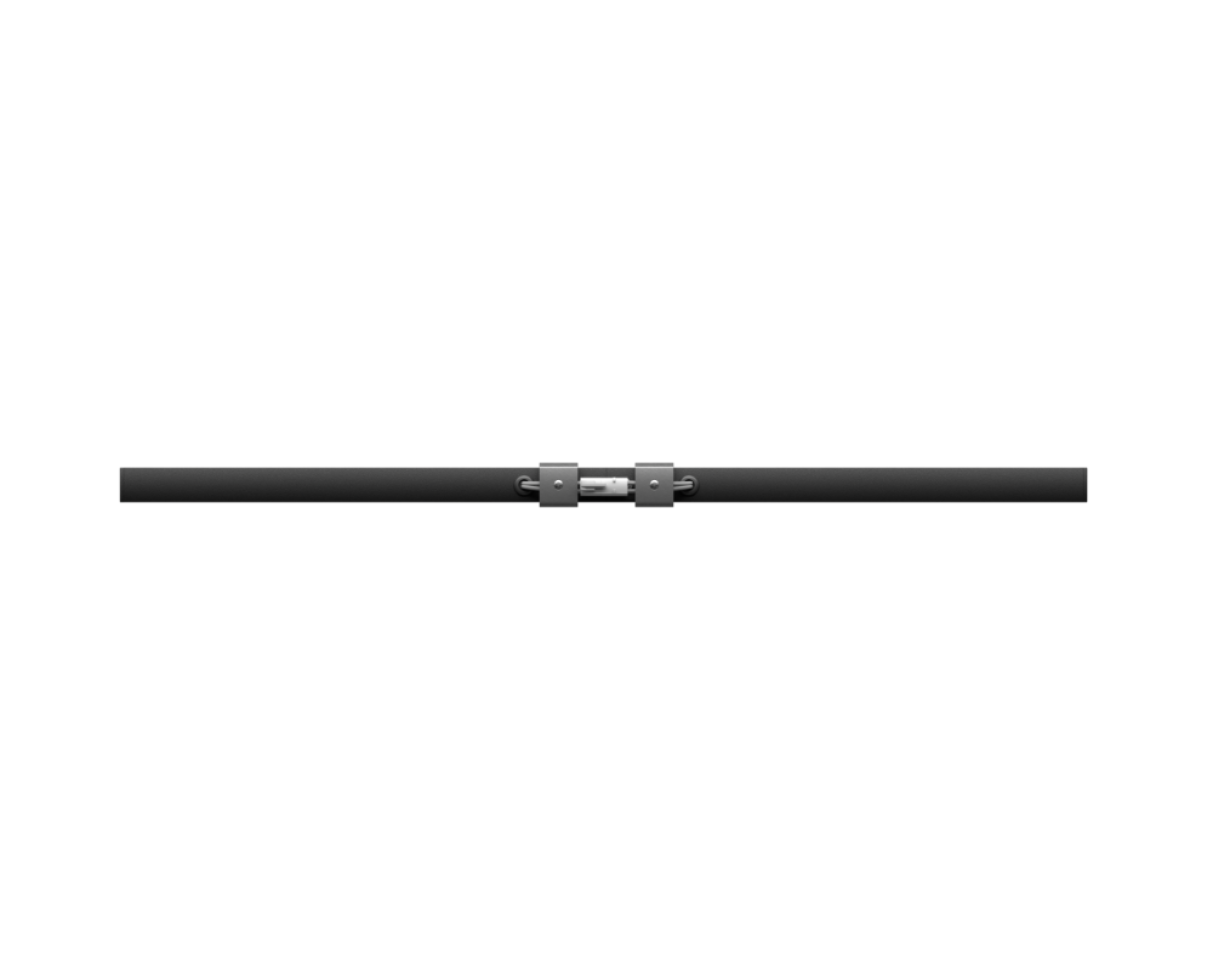

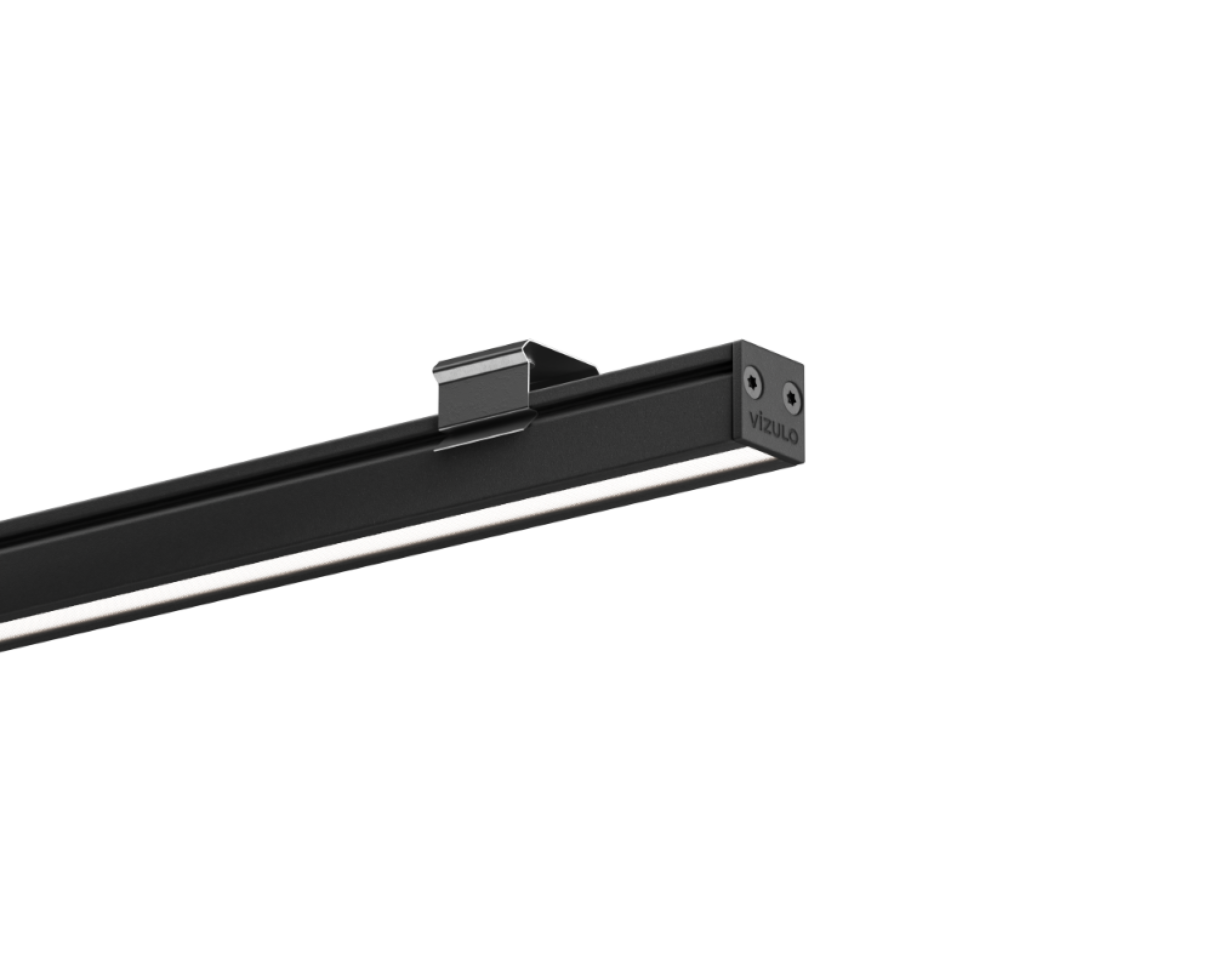

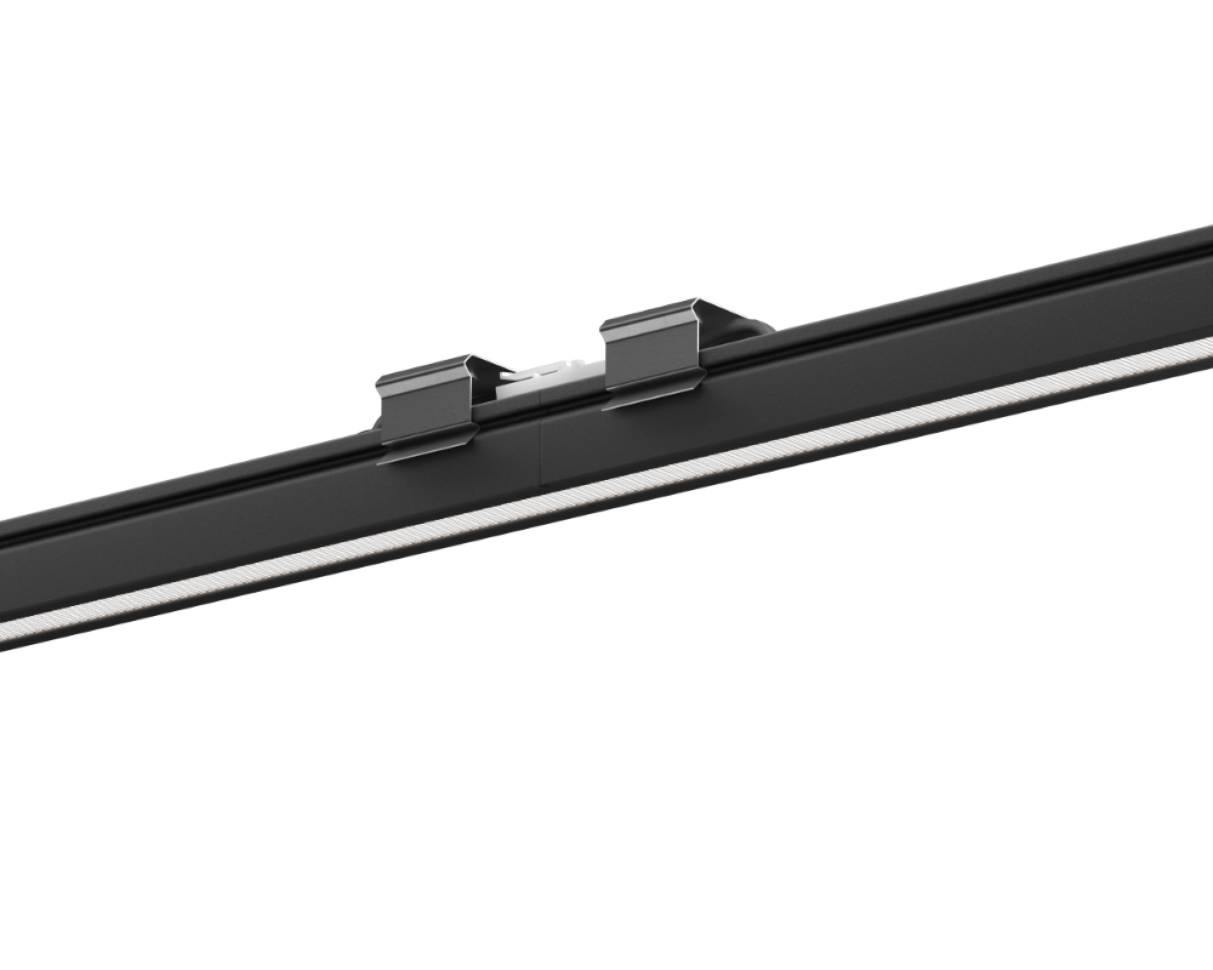

Minimalistic and stylish design which will not leave You indifferent! Icicle has been developed to be usable as a decorative or a functional luminaire. Available in eight different lengths, eight mounting possibilities, and two designs - Single or Connect, it allows You to create your unique lighting design. Most used in public places as administrative premises, offices, supermarkets, but also can improve private house arrangement.
Basic colours
Specification
V
24
Hz
-
W
5 - 40
lm
400 - 3200 1
lm/W
Up to 82
K
3000 / 4000 / TW 2700 - 6500 3
°C
+10 to +35
CRI
>80
Body: Aluminium profile
Dimming: DALI / Wireless / Non dimmable
Initial chromaticity: MacAdam 3
Lifetime: 100 000 h (L80B10) at Ta = 25 °C*
50 000 h (L90B10) at Ta = 25 °C*
Warranty: 5 years
Cover: Matt
Human Centric Lighting: Available
Neto weight: Up to 0.72 kg
1 Lumen output indicated at CRI > 80
2 Without driver
3 1800 / 2200 / 2700 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Total lumen output for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.
Icicle Requirements: https://bit.ly/35XWMWT
