HERON

Produktübersicht

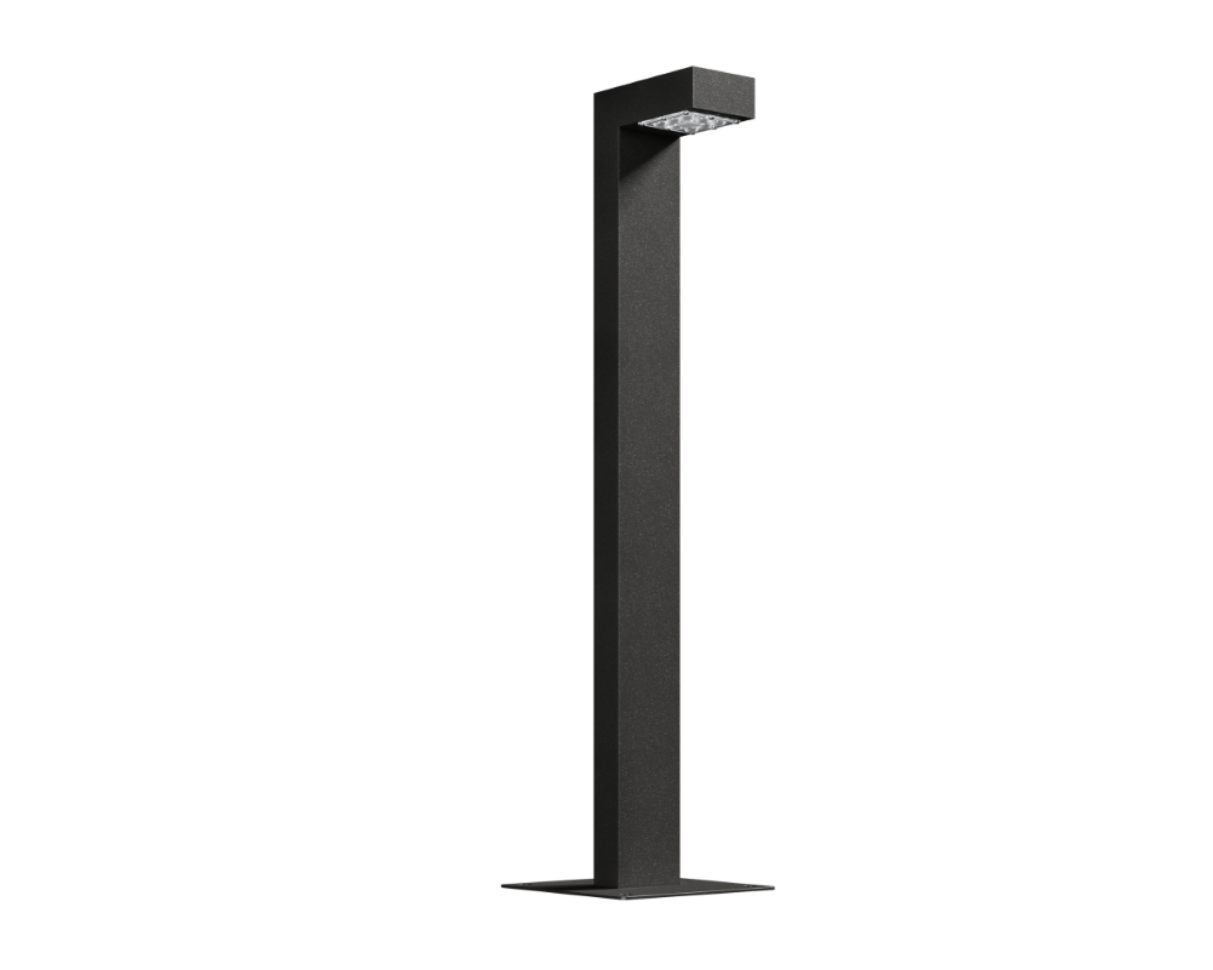

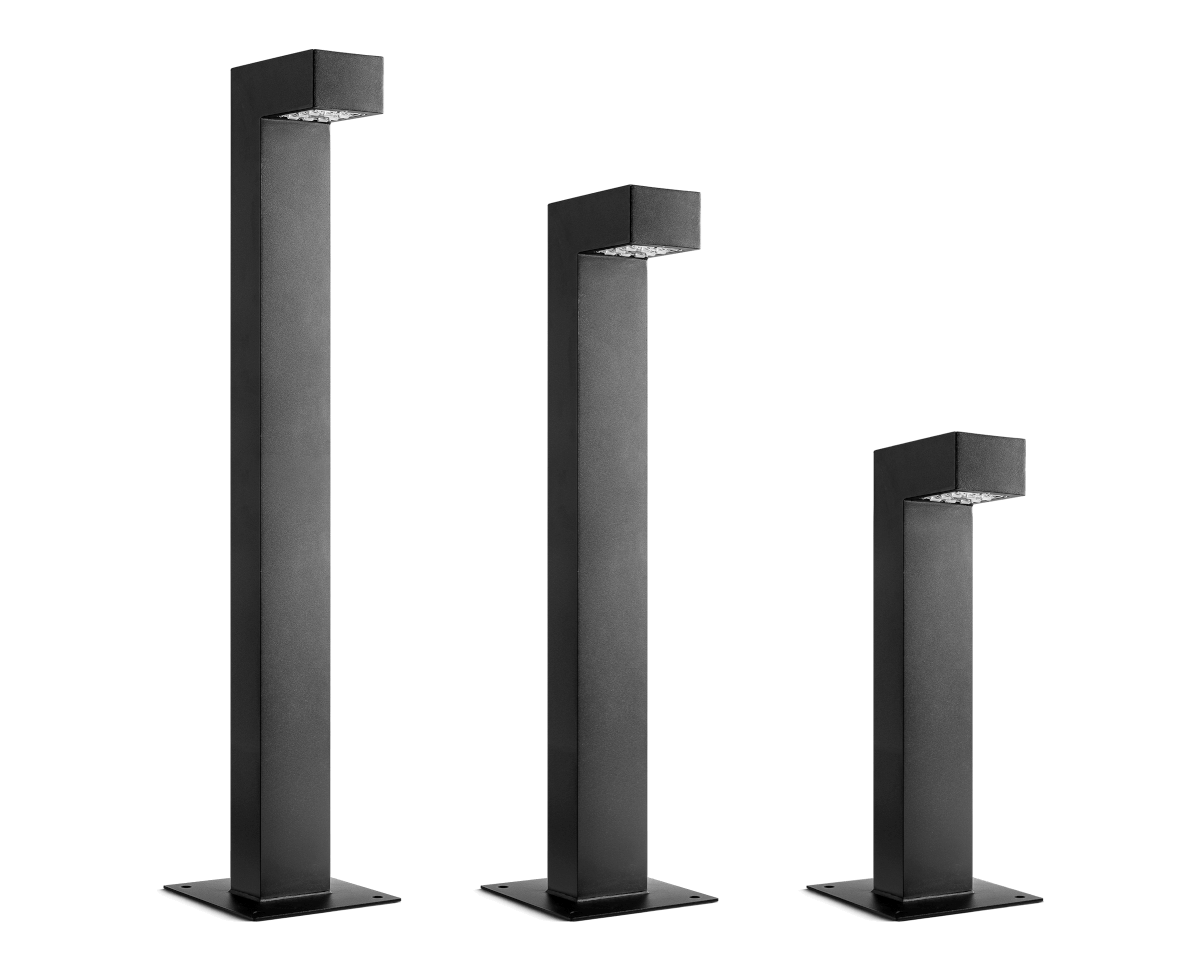

Three different length options, two mounting types, one mission – to eliminate the difficult choice between style and function in your parking lots, pedestrian pathways, and other areas. The shorter version will make a fine decorative addition to any exterior, while the longer version can provide plenty of light for all kinds of landscapes. The minimalist design is built to last and offers some customization: you can choose the mount with or without the flange. Combine the ground-mounted HERON with our ROBIN surface-mounted lights to create a tasteful Scandinavian theme.

Grundfarben

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • Galvanized

Spezifikationen

Body:   Extruded Aluminium / Steel

Dimming:   DALI / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity:   MacAdam 5

Lifetime:   100 000 h (L98B10) at Ta = 25 °C*

Warranty:   5 years

Installation:   IP connector

Mounting:   On flange

Intelligent Control:   Stand-alone / Group / CMS

Sensor:   Motion / Motion + Daylight / Daylight

Surge protection:   1 / 2 / 4 / 10 kV 3

Nature friendly:   PC Amber / Red / 1800 K

Corrosion protection:   Up to C5

Neto weight:   Up to 4.8 kg 4 / up to 15 kg 5

Class I
Class II
IP65
IK08
CE
UKCA
RoHS
LED module replaceable by a professional
LED driver replaceable by a professional

1  Lumen output indicated at CRI > 70
2  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
3  10 kV (L-N; L/N-PE) surge protection device available on request
4  Aluminium version
5  Galvanized (steel) version

* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Dokumente herunterladen

Funktionen

Electronics

Constant lumen output (CLO)

Cables

DALI

Steuerung und Konnektivität

Licht

Lichtverteilungen

Constant lumen output (CLO)

LED luminous flux decreases over its lifetime. In order to compensate the lost lumens it is possible to use CLO (constant lumen output) function. It increases the LED current over lifetime, providing the same light level for all operating hours. Read more
